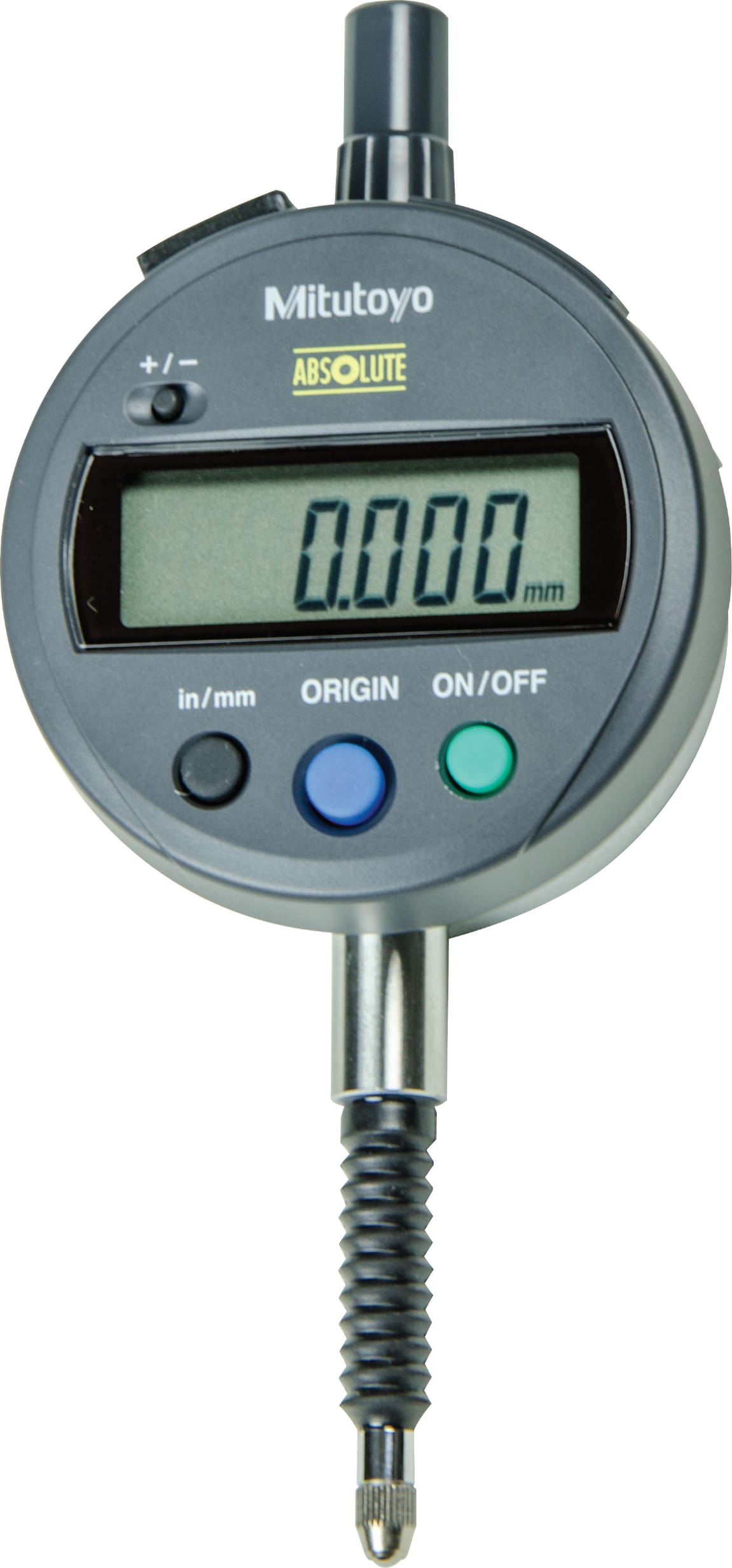

Mitutoyo 543-796B - ABSOLUTE Digimatic Indicator ID-S, Inch/Metric, Stem 3/8in, Flat Back

Name: Mitutoyo 543-796B - ABSOLUTE Digimatic Indicator ID-S, Inch/Metric, Stem 3/8in, Flat Back
Brand: Mitutoyo
SKU: Mitutoyo543-796B
Price: 320.62 USD
Availability: InStock

0 reviews | Model: Mitutoyo 543-796B

Compare

DIGIMATIC INDICATOR, ID-S112PEXB

Order No. (Model): 543-796B (ID-S112PEXB)
Max Range: .5in / 12.7mm
Stem Diameter: 3/8in
Thread Type: 4-48 UNF
Back Type: Flat Back
Resolution: .00005in
Accuracy: +/- .0001in
Measuring Force: 2.5N or less
Dust/Water Protection Level: IP53
Standards/Specifications: ANSI/AGD

View Product Details

List Price: $342.00

Your Price: $320.62

In Stock:

View Payment Options

Request Quote

Items in This Series
