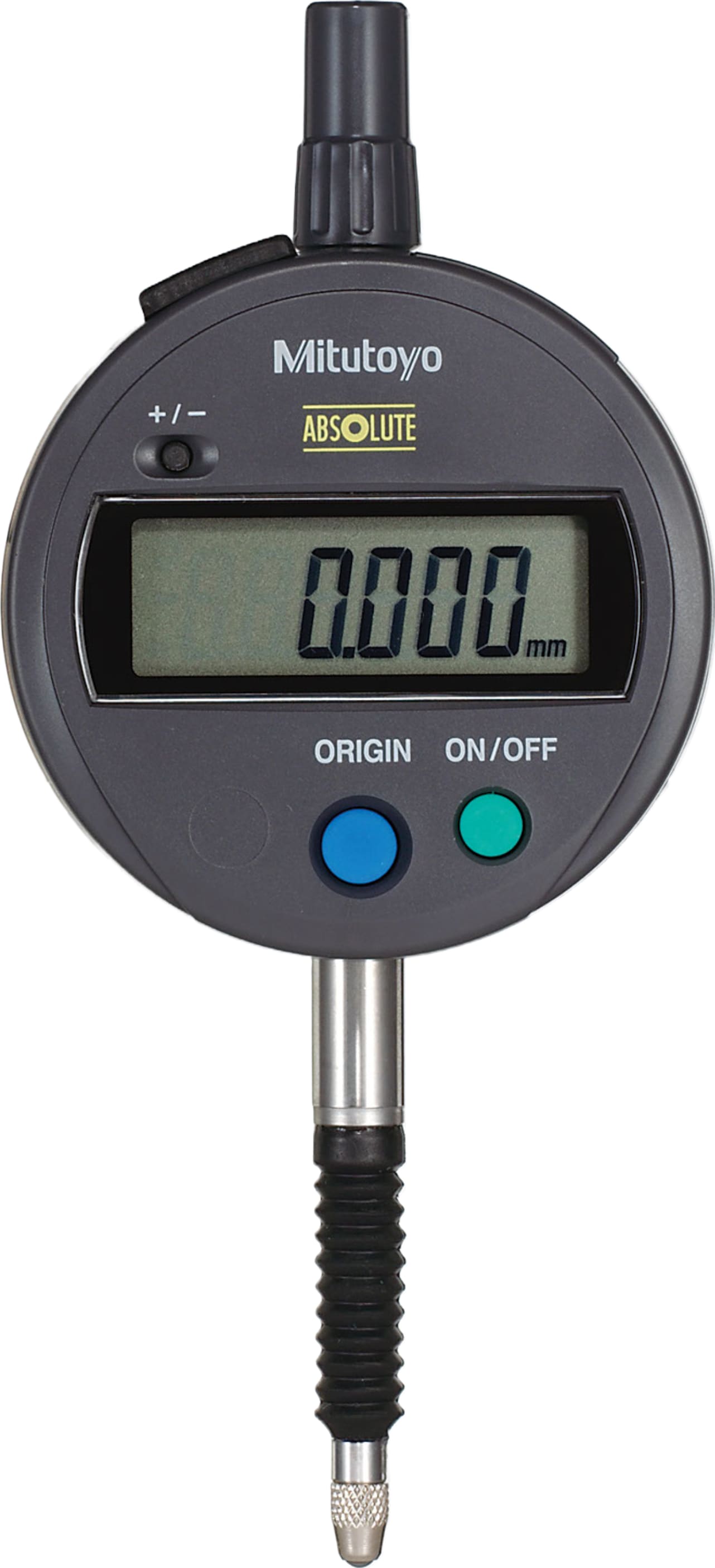

Mitutoyo 543-794B - ABSOLUTE Digimatic Indicator ID-S, Metric, Stem 8mm, Flat Back

Name: Mitutoyo 543-794B - ABSOLUTE Digimatic Indicator ID-S, Metric, Stem 8mm, Flat Back
Brand: Mitutoyo
SKU: Mitutoyo543-794B
Price: 330.00 USD
Availability: InStock

0 reviews | Catalog: 543-794B | Model: Mitutoyo 543-794B

Compare

DIGIMATIC INDICATOR, ID-S112PXB

Order No. (Model): 543-794B (ID-S112PXB)
Max Range: 12.7mm
Stem Diameter: 8mm
Thread Type: M2.5 x 0.45
Back Type: Flat Back
Resolution: .001mm
Accuracy: +/- .003mm
Measuring Force: 2.5N or less
Dust/Water Protection Level: IP53
Standards/Specifications: ISO/JIS

View Product Details
