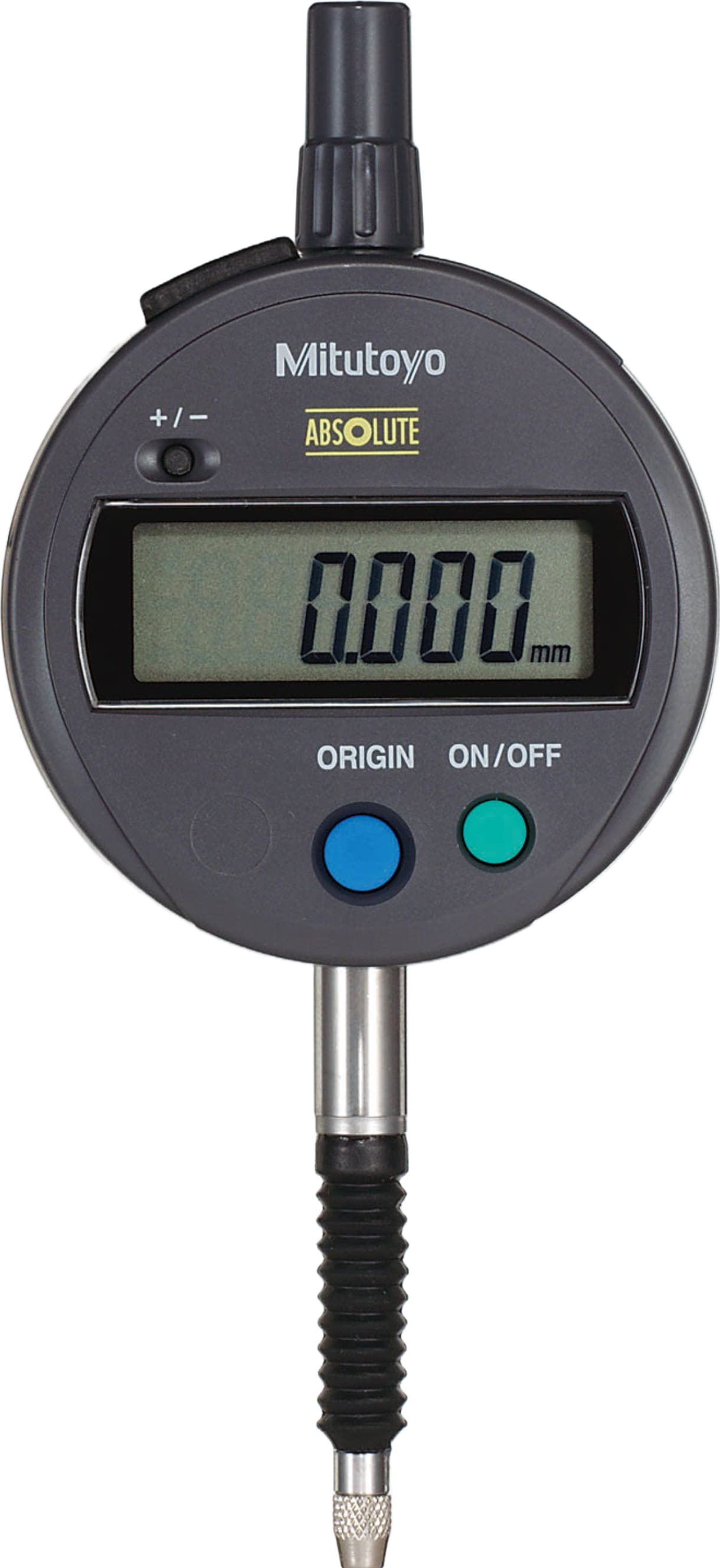

Mitutoyo 543-794 - ABSOLUTE Digimatic Indicator ID-S, Metric, Stem 8mm, Lug Back

Name: Mitutoyo 543-794 - ABSOLUTE Digimatic Indicator ID-S, Metric, Stem 8mm, Lug Back
Brand: Mitutoyo
SKU: Mitutoyo543-794
Price: 343.12 USD
Availability: InStock

0 reviews | Catalog: 543-794 | UPC: 603908569855 | Model: Mitutoyo 543-794

Compare

DIGIMATIC INDICATOR, ID-S112PX

Order No. (Model): 543-794 (ID-S112PX)
Max Range: 12.7mm
Stem Diameter: 8mm
Thread Type: M2.5 x 0.45
Back Type: Lug Back
Resolution: .001mm
Accuracy: +/- .003mm
Measuring Force: 2.5N or less
Dust/Water Protection Level: IP42
Standards/Specifications: ISO/JIS

View Product Details

List Price: $366.00

Your Price: $343.12

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Mitutoyo 543-794 DIGIMATIC INDICATOR, ID-S112PX	Mitutoyo 543-792-10 DIGIMATIC INDICATOR, ID-S112EX	Mitutoyo 543-796 DIGIMATIC INDICATOR, ID-S112PEX	Mitutoyo 543-781B DIGIMATIC INDICATOR, ID-S1012XB	Mitutoyo 543-791 DIGIMATIC INDICATOR, ID-S112MX	Mitutoyo 543-790B DIGIMATIC INDICATOR, ID-S112XB	Mitutoyo 543-795 DIGIMATIC INDICATOR, ID-S112PMX	Mitutoyo 543-795B DIGIMATIC INDICATOR, ID-S112PMXB	Mitutoyo 543-796B DIGIMATIC INDICATOR, ID-S112PEXB	Mitutoyo 543-782B-10 DIG IND, ID-S1012MXB, 0.5 IN/12.7MM, 0.0005 IN/0.01MM, 8MM STEM	Mitutoyo 543-782-10 ID-S1012MX2
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Mitutoyo 543-794 Accessories

Choose a Category

for the Mitutoyo 543-794

Mitutoyo 06AFM386 USB-ITPAK V2.1

Catalog: 06AFM386

(0)

In Stock!

Add to Cart

Mitutoyo MeasurLink Real-Time MeasurLink Real-Time

(0)

In Stock!

Configure Yours

Mitutoyo 02AZF670 U-Wave-TM/TMB Bracket for Indicators

Catalog: 02AZF670

(0)

In Stock!

Add to Cart

Mitutoyo 264-020 USB Input Tool

Catalog: 264-020

(0)

In Stock!

Add to Cart

Mitutoyo 519-109-10 TRANSFER STAND-RX

Catalog: 519-109-10

(0)

In Stock!

Add to Cart

Mitutoyo DialGageStand Dial Gage Stands

(0)

In Stock!

Configure Yours

Mitutoyo GraniteComparatorStand

(0)

In Stock!

Configure Yours

Mitutoyo IronComparatorStand Cast Iron Comparator Stands

(0)

In Stock!

Configure Yours

Mitutoyo 06AFM380F (USB-ITN-F) USB Direct Cable without Data Switch, Connection type F

Catalog: 06AFM380F

(0)

In Stock!

Add to Cart

Mitutoyo 264-007 INPUT TOOL FOR RS232C IT-007R

Catalog: 264-007

(0)

In Stock!

Add to Cart

Mitutoyo 542-007A EC-101D Counter, 120V

Catalog: 542-007A

(0)

In Stock!

Add to Cart

Mitutoyo 905338 SPC CABLE, CONNECTION TYPE F, STRAIGHT PLUG, NO DATA SWITCH, 1M

Catalog: 905338

(0)

In Stock!

Add to Cart

Mitutoyo 905409 SPC CABLE, CONNECTION TYPE F, STRAIGHT PLUG, NO DATA SWITCH, 2M

Catalog: 905409

(0)

In Stock!

Add to Cart

Mitutoyo 905689 SPC CABLE, CONNECTION TYPE F, BACK PLUG, NO DATA SWITCH, 1M

Catalog: 905689

(0)

In Stock!

Add to Cart

Mitutoyo 905690 SPC CABLE, CONNECTION TYPE F, BACK PLUG, NO DATA SWITCH, 2M

Catalog: 905690

(0)

In Stock!

Add to Cart

Mitutoyo 905691 SPC CABLE, CONNECTION TYPE F, RIGHT PLUG, NO DATA SWITCH, 1M

Catalog: 905691

(0)

In Stock!

Add to Cart

Mitutoyo 905692 SPC CABLE, CONNECTION TYPE F, RIGHT PLUG, NO DATA SWITCH, 2M

Catalog: 905692

(0)

In Stock!

Add to Cart

Mitutoyo 905693 SPC CABLE, CONNECTION TYPE F, LEFT PLUG, NO DATA SWITCH, 1M

Catalog: 905693

(0)

In Stock!

Add to Cart

Mitutoyo 905694 SPC CABLE, CONNECTION TYPE F, LEFT PLUG, NO DATA SWITCH, 2M

Catalog: 905694

(0)

In Stock!

Add to Cart

Mitutoyo 939039 GAGE SELECTOR 3CH

Catalog: 939039

(0)

In Stock!

Add to Cart

Mitutoyo DP-1VA DP-1VA, 120V AC W/ D2 OUTPUT

Catalog: 264-505A

(0)

In Stock!

Add to Cart

Mitutoyo MIG-1USB MIG-1USB, V6.0 W/D2 COMPAT, SINGLE INPUT

Catalog: 64AAB637

(0)

In Stock!

Add to Cart

Mitutoyo MIG-2USB MIG-2USB, V6.0 W/D2 COMPAT, DUAL INPUT

Catalog: 64AAB638

(0)

In Stock!

Add to Cart

Mitutoyo MIG-4USB MIG-4USB, V6.0 W/D2 COMPAT, 4 INPUT

Catalog: 64AAB639

(0)

In Stock!

Add to Cart

Mitutoyo MIG-8USB MIG-8USB, V6.0 W/D2 COMPAT, 8 INPUT

Catalog: 64AAB640

(0)

In Stock!

Add to Cart

Mitutoyo 02AZD730G-F U-WAVE TRANSMITTER W/ CONNECTING CABLE (F) FOR HEIGHT GAGES...

Catalog: 02AZD730G-F

(0)

In Stock!

Add to Cart

Mitutoyo 02AZD810D U-WAVE-R

Catalog: 02AZD810D

(0)

In Stock!

Add to Cart

Mitutoyo 02AZD880G U-WAVE-T/BUZZER TYPE

Catalog: 02AZD880G

(0)

In Stock!

Add to Cart

Mitutoyo 543-794 - ABSOLUTE Digimatic Indicator ID-S, Metric, Stem 8mm, Lug Back

The Mitutoyo ABS digital ID-S digital indicators provide up to a 12.7mm / .5in range in a compact design that is easy to use and read. Large push buttons provide direct, easy access to all the functions of the indicator, and readings are shown on a large 9mm LCD display. The ABSOLUTE sensor automatically restores the last origin position when the indicator is turned on, allowing for a quick-start operation which is useful in multipoint measurements.

ABS (Absolute) Sensor

Digimatic indicators employ Mitutoyo’s proprietary ABS (absolute) sensor, which automatically restores the origin point even if the power is turned off. This eliminates the need to reset the origin each time the unit is turned on. Unlimited response speed eliminates over-speed errors.

Measurement Data Output

These indicators have a measurement data output socket, which makes it possible to output Digimatic data to the DP-1VR mini processor or to a PC through an input tool. Furthermore, the U-WAVE measurement data wireless communication system can be used to wirelessly input measurement data to a PC.

Dimensions of the inch (ANSI/AGD Type) dial indicator partly differ from those of the metric (ISO/JIS Type) indicator. Inch (ANSI/AGD Type) dial indicators are provided with a stem of 3/8" dia. and #4-48UNF thread mount for the contact point.

See Brochure/Data Sheet for Model Specifications and Functions.

Mitutoyo ABSOLUTE Digimatic Indicator ID-S

Similar in size to standard Series 2 dial indicators
Available in Metric and Inch/Metric models
SPC output function allows for quick and easy data management in real-time
ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
Origin reset is not required even when data is re-displayed after a disappearance due to insufficient illumination during use
Functions include Origin set, zero sets, counting direction switching, power On/Off, data output, and inch/mm conversion (on inch/metric models only)
Alarm: Low voltage, counting value composition error, over-flow error
Dust/Water protection level: IP42 (IP53: 543-794B, 543-795B, 543-796B)

Series Technical Data

Model Number	Units	Max. Range - Resolution - Accuracy	Stem Diameter	Thread Type	Measuring Force	Back Type	ANSI/AAGD	ISO/JIS
543-781	Metric	12.7mm - 0.01mm - ±0.02mm	8mm	M2.5 X 0.45	1.5 or lessN	Lug Back	-	Yes
543-781B	Metric	12.7mm - 0.01mm - ±0.02mm	8mm	M2.5 X 0.45	1.5 or lessN	Flat Back	-	Yes
543-782	Metric, Inch	.5" / 12.7mm - .0005" - ±.0008"	8mm	M2.5 X 0.45	1.5 or lessN	Lug Back	-	Yes
543-782B	Metric, Inch	.5" / 12.7mm - .0005" - ±.0008"	8mm	M2.5 X 0.45	1.5 or lessN	Flat Back	-	Yes
543-783	Metric, Inch	.5" / 12.7mm - .0005" - ±.001"	3/8"	4-48 UNF	1.5 or lessN	Lug Back	Yes	-
543-783B	Metric, Inch	.5" / 12.7mm - .0005" - ±.001"	3/8"	4-48 UNF	1.5 or lessN	Flat Back	Yes	-
543-790	Metric	12.7mm - 0.001mm - ±0.003mm	8mm	M2.5 X 0.45	1.5 or lessN	Lug Back	-	Yes
543-790B	Metric	12.7mm - 0.001mm - ±0.003mm	8mm	M2.5 X 0.45	1.5 or lessN	Flat Back	-	Yes
543-791	Metric, Inch	.5" / 12.7mm - .00005" - ±.0001"	8mm	M2.5 X 0.45	1.5 or lessN	Lug Back	-	Yes
543-791B	Metric, Inch	.5" / 12.7mm - .00005" - ±.0001"	8mm	M2.5 X 0.45	1.5 or lessN	Flat Back	-	Yes
543-792	Metric, Inch	.5" / 12.7mm - .00005" - ±.0001"	3/8"	4-48 UNF	1.5 or lessN	Lug Back	Yes	-
543-792B	Metric, Inch	.5" / 12.7mm - .00005" - ±.0001"	3/8"	4-48 UNF	1.5 or lessN	Flat Back	Yes	-
543-793	Metric, Inch	.5" / 12.7mm - .0001" - ±.0001"	3/8"	4-48 UNF	1.5 or lessN	Lug Back	Yes	-
543-793B	Metric, Inch	.5" / 12.7mm - .0001" - ±.0001"	3/8"	4-48 UNF	1.5 or lessN	Flat Back	Yes	-
543-794	Metric	12.7mm - .0001" - ±0.003mm	8mm	M2.5 X 0.45	2.5 or lessN	Lug Back	-	Yes
543-794B	Metric	12.7mm - .0001" - ±0.003mm	8mm	M2.5 X 0.45	2.5 or lessN	Flat Back	-	Yes
543-795	Metric, Inch	.5" / 12.7mm - .00005" - ±.0001"	8mm	M2.5 X 0.45	2.5 or lessN	Lug Back	-	Yes
543-795B	Metric, Inch	.5" / 12.7mm - .00005" - ±.0001"	8mm	M2.5 X 0.45	2.5 or lessN	Flat Back	-	Yes
543-796	Metric, Inch	.5" / 12.7mm - .00005" - ±.0001"	3/8"	4-48 UNF	2.5 or lessN	Lug Back	Yes	-
543-796B	Metric, Inch	.5" / 12.7mm - .00005" - ±.0001"	3/8"	4-48 UNF	2.5 or lessN	Flat Back	Yes	-
