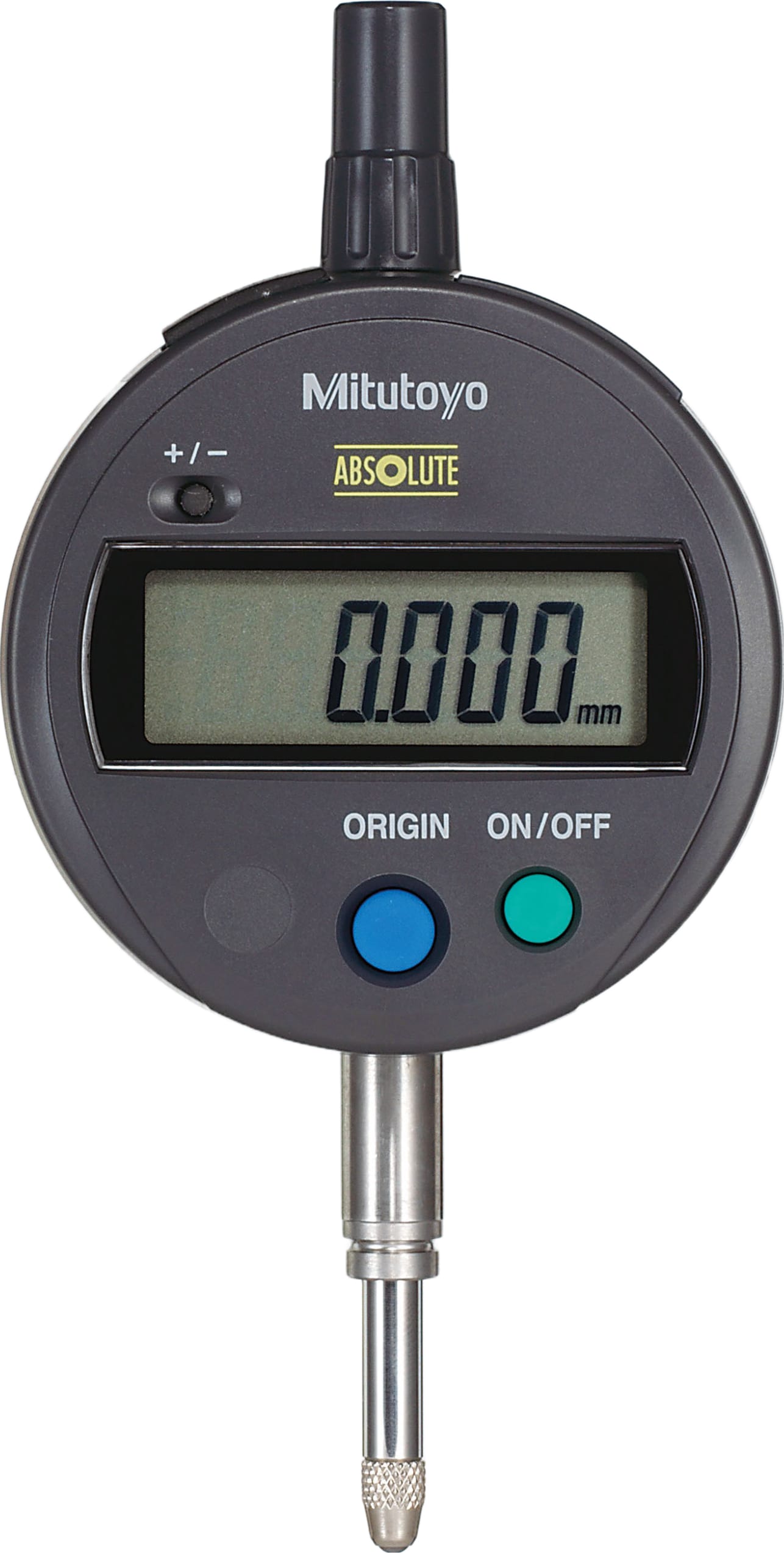

Mitutoyo 543-790 - ABSOLUTE Digimatic Indicator ID-S, Metric, Stem 8mm, Lug Back

Name: Mitutoyo 543-790 - ABSOLUTE Digimatic Indicator ID-S, Metric, Stem 8mm, Lug Back
Brand: Mitutoyo
SKU: Mitutoyo543-790
Price: 299.06 USD
Availability: InStock

0 reviews | Catalog: 543-790 | Model: Mitutoyo 543-790

Compare

DIGIMATIC INDICATOR, ID-S112X

Order No. (Model): 543-790 (ID-S112X)
Max Range: 12.7mm
Stem Diameter: 8mm
Thread Type: M2.5 x 0.45
Back Type: Lug Back
Resolution: .001mm
Accuracy: +/- .003mm
Measuring Force: 1.5N or less
Dust/Water Protection Level: IP42
Standards/Specifications: ISO/JIS
