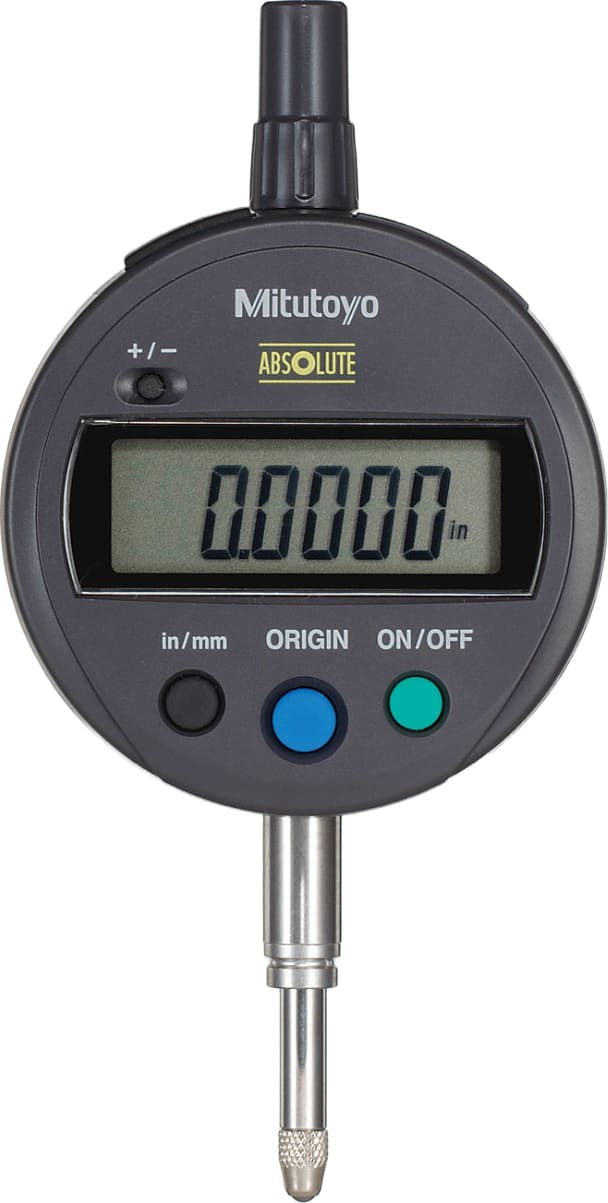

Mitutoyo 543-782B - ABSOLUTE Digimatic Indicator ID-S, Inch/Metric, Stem 8mm, Flat Back
The Mitutoyo ABS digital ID-S digital indicators provide up to a 12.7mm / .5in range in a compact design that is easy to use and read. Large push buttons provide direct, easy access to all the functions of the indicator, and readings are shown on a large 9mm LCD display. The ABSOLUTE sensor automatically restores the last origin position when the indicator is turned on, allowing for quick-start operation, which is useful in multipoint measurements.
ABS (Absolute) Sensor
Digimatic indicators employ Mitutoyo’s proprietary ABS (absolute) sensor, which automatically restores the origin point even if the power is turned off. This eliminates the need to reset the origin each time the unit is turned on. Unlimited response speed eliminates over-speed errors.
Measurement Data Output
These indicators have a measurement data output socket, which makes it possible to output Digimatic data to the DP-1VR mini processor or to a PC through an input tool. Furthermore, the U-WAVE measurement data wireless communication system can be used to wirelessly input measurement data to a PC.
Dimensions of the inch (ANSI/AGD Type) dial indicator partly differ from those of the metric (ISO/JIS Type) indicator. Inch (ANSI/AGD Type) dial indicators are provided with a stem of 3/8" dia. and #4-48UNF thread mount for the contact point.
See Brochure/Data Sheet for Model Specifications and Functions.
Mitutoyo ABSOLUTE Digimatic Indicator ID-S
- Similar in size to standard Series 2 dial indicators
- Available in Metric and Inch/Metric models
- SPC output function allows for quick and easy data management in real-time
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
- Origin reset is not required even when data is re-displayed after a disappearance due to insufficient illumination during use
- Functions include Origin set, zero sets, counting direction switching, power On/Off, data output, and inch/mm conversion (on inch/metric models only)
- Alarm: Low voltage, counting value composition error, over-flow error
- Dust/Water protection level: IP42 (IP53: 543-794B, 543-795B, 543-796B)
