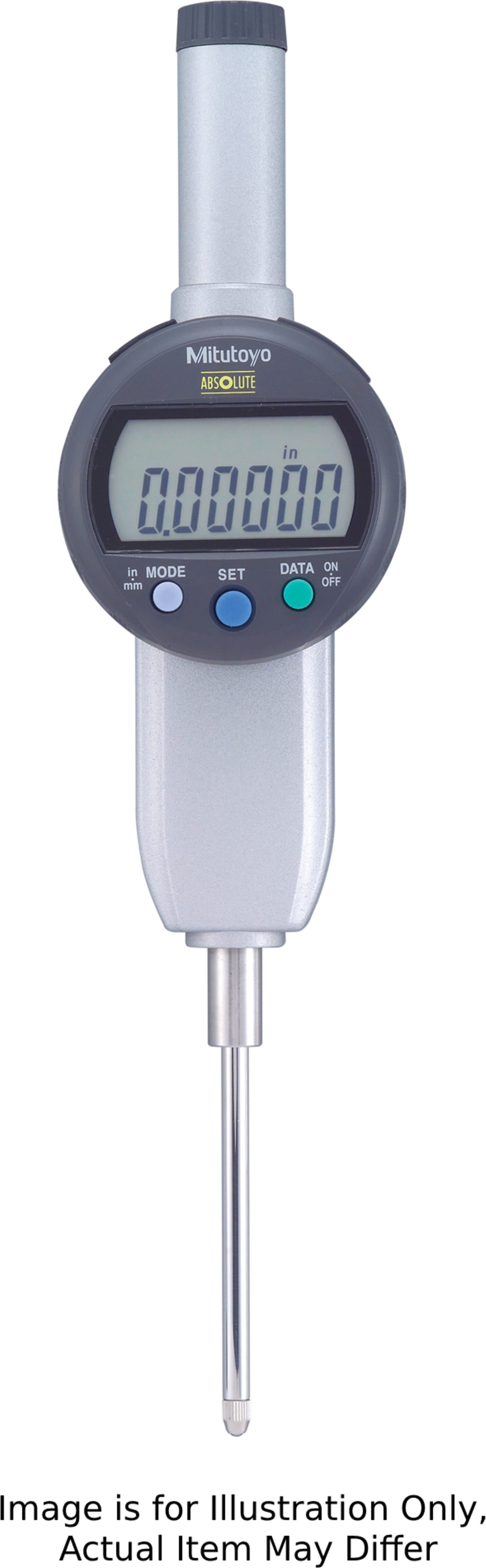

Mitutoyo 543-494B - ABSOLUTE Digimatic Indicator ID-C, Metric, Stem 8mm, Flat Back
The Mitutoyo ABS digital ID-C standard-type digital indicators provide up to a 50.8mm / 2in range in a compact design that is easy to use and read. The ID-C indicator’s face can rotate 330° to enable easier readings on the large 9mm LCD display from nearly any angle. Large push buttons provide direct, easy access to all of the indicator’s functions, and the positive/negative count from the spindle's up/down movement can be toggled. The ABSOLUTE sensor automatically restores the last origin position when the indicator is turned on, allowing for quick-start operation, which is useful in multipoint measurements. In addition, this affordable product has various measurement functions, including the ability to perform scaling calculations, judge tolerance, hold data, and perform general comparison measurements.
ABS (Absolute) Sensor
The original Mitutoyo ABS (ABSOLUTE) sensor, which is capable of relocating the origin even after turning the power off, enables you to quickly start multipoint measurement. Also, the ABS measurement mode can be restored even after measurement in the INC mode, where zero setting is possible at any position, improving work efficiency.
Measurement Data Output
From the output terminal, measurement data can be output to a PC via a compact printer, Digimatic mini processor DP-1VR, or input tool by pressing the button below the display. Wireless transmission of measurement data to a PC can also be performed using the measurement data wireless communication system U-WAVE.
Resolution Switching (.001mm or .00005in resolution models)
Models with 0.001mm resolution are capable of displaying in 0.01mm resolution. Models with .00005in resolution are capable of displaying in .0001in and .0005in resolution. Select the resolution according to the application.
Judging the Tolerance
Performs judgment (OK, +NG, -NG) according to the set upper and lower limit values and displays the result as a symbol. An enlarged display of the OK and NG symbols is possible.
Calculation [F(x)=Ax]
Mounting the ID-C on a measuring jig and setting the calculation factor (to any value) allows direct measurement without using a conversion table and improves measurement efficiency.
ANSI/AGD Type and ISO/JIS Type
Dimensions of the inch (ANSI/AGD Type) dial indicator partly differ from those of the metric (ISO/JIS Type) indicator. Inch (ANSI/AGD Type) dial indicators are provided with a stem of 3/8in dia. and #4-48UNF thread mount for the contact point.
See Brochure/Data Sheet for Model Specifications and Functions.
Mitutoyo ABSOLUTE Digimatic Indicator ID-C
- Similar in size to standard Series 2 dial indicators
- Available in Metric and Inch/Metric models
- SPC output function allows for quick and easy data management in real-time
- ABSOLUTE (ABS) linear scale eliminates the need for setting the origin point every time the micrometer is powered on
- Origin reset is not required even when data is re-displayed after a disappearance due to insufficient illumination during use
- G0/No-Go display lights red or green when upper and lower tolerances are set
- Internal calculations using the simple formula of [F(x)=Ax] are available
- Functions include Origin set, zero sets, Go/No-Go judgment, counting direction switching, power On/Off, data output and inch/mm conversion (on inch/metric models only)
- Alarm: Low voltage, counting value composition error, over-flow error, and tolerance limit setting error
- Unlimited response speed eliminates over-speed errors
- Dust/Water protection level: IP42
- Supplied in a fitted plastic case
- An inspection certificate is included
