Mitutoyo 513-412-10T - Dial Test Indicator, Horizontal Type, Inch, Full Set

Name: Mitutoyo 513-412-10T - Dial Test Indicator, Horizontal Type, Inch, Full Set
Brand: Mitutoyo
SKU: Mitutoyo513-412-10T
Price: 214.31 USD
Availability: InStock

0 reviews | Catalog: 513-412-10T | UPC: 603908616283 | Model: Mitutoyo 513-412-10T

Compare

DIAL TI, FULL SET, STANDARD, .03 IN, .0005 IN GRAD, LONG TIP, WHITE DIAL

Order No: 513-412-10T
Contact Point: Carbide
Contact Point Length: 33.9mm
Graduation: .0005in
Max Range: .03in
Dial Reading: 0-15-0
Accuracy: +/- .0005in
Measuring Force: 0.2N or less

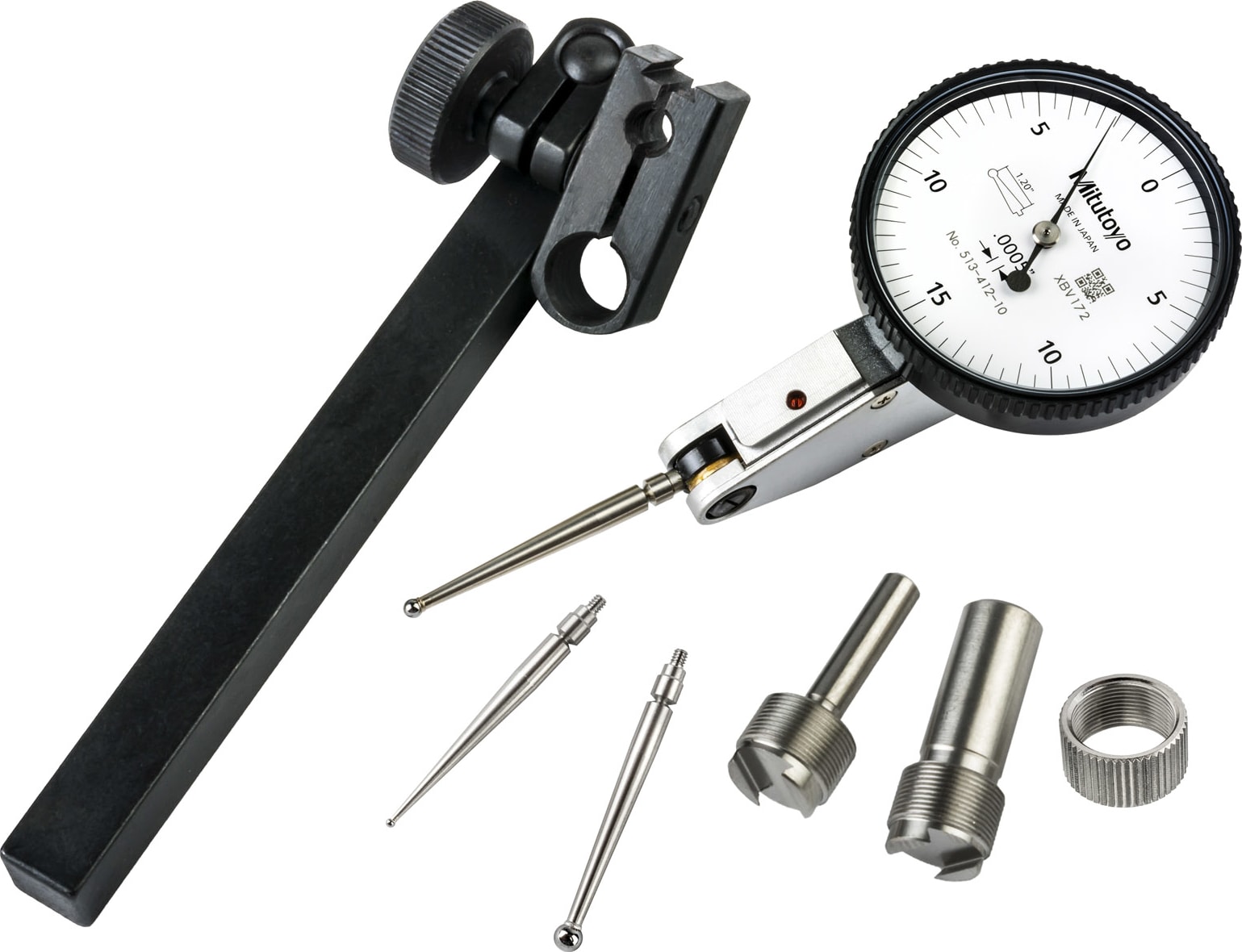

Basic / Full Set: Full (Indicator, Carbide .039in, .118in, and .079in Contact points, 3/8in and .157in Stems, Swivel clamp, Knurled clamp ring, Inch holding bar)
Special Features: Anti-magnet; Jeweled bearing; Long contact point

View Product Details

List Price: $254.00

Your Price: $214.31

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Mitutoyo 513-412-10T DIAL TI, FULL SET, STANDARD, .03 IN, .0005 IN GRAD, LONG TIP, WHITE D ...	Mitutoyo 513-402-10E DIAL TI, BASIC SET, STANDARD, .03 IN, .0005 IN GRAD	Mitutoyo 513-402-10T DIAL TI, FULL SET, STANDARD, .03 IN, .0005 IN GRAD, WHITE DIAL	Mitutoyo 513-403-10E DIAL TI, BASIC SET, STANDARD, .008 IN, .0001 IN GRAD, WHITE DIAL	Mitutoyo 513-403-10T DIAL TI, FULL SET, STANDARD, .008 IN, .0001 IN GRAD, WHITE DIAL	Mitutoyo 513-406-10E DIAL TI, BASIC SET, STANDARD, .03 IN/0.7MM, .0005 IN/0.01 MM GRAD, CO ...	Mitutoyo 513-406-10T DIAL TI, FULL SET, STANDARD, .03 IN/0.7MM, .0005 IN/0.01 MM GRAD, COM ...	Mitutoyo 513-407-10E Dial TI, BASIC SET, STANDARD, .008IN, .00005 IN GRAD, WHITE DIAL	Mitutoyo 513-407-10T Dial TI, FULL SET, STANDARD, .008 IN, .00005 IN GRAD, WHITE DIAL	Mitutoyo 513-412-10E DIAL TI, BASIC SET, STANDARD, .03 IN, .0005 IN GRAD, LONG TIP, WHITE ...	Mitutoyo 513-463-10E DIAL TI, BASIC SET, STANDARD (COMPACT), .008 IN, .0001 IN GRAD, WHITE ...	Mitutoyo 513-472-10E DIAL TI, BASIC SET, STANDARD, 0.2 MM, 0.002 MM GRAD, YELLOW DIAL	Mitutoyo 513-479-10E DIAL TI, BASIC SET, STANDARD, 0.2 MM, 0.002 MM GRAD, YELLOW DIAL	Mitutoyo 513-462-10E Dial Test Indicator, Horizontal Type, Inch, Basic Set	Mitutoyo 513-473-10E Dial Test Indicator, Horizontal Type, Inch, Basic Set
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Mitutoyo 513-412-10T Accessories

Choose a Category

General Accessories
Stands

for the Mitutoyo 513-412-10T

Mitutoyo 7014E-10 STAND, MAGNETIC, MINI, 6mm, 8mm,9.53mm 3/8in

Catalog: 7014E-10

(0)

In Stock!

Add to Cart

Mitutoyo 7010S-10 MAGNETIC STAND

Catalog: 7010S-10

(0)

In Stock!

Add to Cart

Mitutoyo 7011S-10 MAGNETIC STAND W ADJUSTER

Catalog: 7011S-10

(0)

In Stock!

Add to Cart

Mitutoyo 7014-10 STAND, MAGNETIC, MINI, 6mm, 8mm

Catalog: 7014-10

(0)

In Stock!

Add to Cart

Mitutoyo 7031-10 MAGNETIC STAND

Catalog: 7031-10

(0)

In Stock!

Add to Cart

Mitutoyo 7032-10 MAGNETIC STAND

Catalog: 7032-10

(0)

In Stock!

Add to Cart

Mitutoyo 7033-10 MAGNETIC STAND

Catalog: 7033-10

(0)

In Stock!

Add to Cart

Mitutoyo 513-412-10T - Dial Test Indicator, Horizontal Type, Inch, Full Set

The Mitutoyo horizontal-type dial test indicator with reversible measuring direction and the adjustable contact point is ideal for measuring surface variations in narrow or recessed areas with high precision. The dial test indicator’s one-piece movement provides high-impact resistance and better durability, while jeweled bearings deliver high sensitivity and quick response. The horizontal face is parallel to the axis of the indicator, and the indicator can be mounted either horizontally or vertically from the front, top, or back of the indicator.

Mitutoyo Horizontal Type Dial Test Indicator

Available in Metric, Inch, and Metric/Inch models
Performs easy and accurate measurement of narrow or recessed areas, plus inside and outside diameters that dial indicators cannot access
No-clutch structure provides automatic reversal of measuring direction
O-ring seal and bonding of the bezel and crystal protects against dust and oil while rotating smoothly
Contact point length is printed on the dial face to avoid accuracy issues
Newly designed contact point holder prevents backlash
Contact point is carbide tipped for lasting accuracy, durability (Ruby ball-tipped available for some models, see Special Features for details)
Crystal is glare-free with a scratch-resistant coating
High sensitivity and quick response because of jeweled bearings
Supplied in a fitted plastic case

Series Technical Data

Model Number	Units	Contact Point	Graduation	Basic or Full Set	Max Range	Dial Reading	Accuracy	Measuring Force	Special Feature (Long Contact Point - Compact -Double scale spacing type -Revolution Counter)
513-401-10E	Metric	Carbide	0.001mm	Basic	0.14mm	0-70-0	±4µm	0.3 or lessN
513-402-10E	Inch	Carbide	0005""	Basic	.03"	0-15-0	±.0005"	0.3 or lessN
513-402-10T	Inch	Carbide	0005""	Full	.03"	0-15-0	±.0005"	0.3 or lessN
513-403-10E	Inch	Carbide	.0001""	Basic	.008"	0-4-0	±.0001"	0.3 or lessN
513-403-10T	Inch	Carbide	.0001""	Full	.008"	0-4-0	±.0001"	0.3 or lessN
513-404-10E	Metric	Carbide	0.01mm	Basic	0.8mm	0-40-0	±8µm	0.3 or lessN
513-404-10T	Metric	Carbide	0.01mm	Full	0.8mm	0-40-0	±8µm	0.3 or lessN
513-405-10E	Metric	Carbide	0.002mm	Basic	0.2mm	0-100-0	±4µm	0.3 or lessN
513-405-10T	Metric	Carbide	0.002mm	Full	0.2mm	0-100-0	±4µm	0.3 or lessN
513-406-10E	Metric, Inch	Carbide	0005"" / 0.01mm	Basic	0.03" / 0.7mm	0-15-0, 0-35-0	±.0005"	0.3 or lessN
513-406-10T	Metric, Inch	Carbide	0005"" / 0.01mm	Full	0.03" / 0.7mm	0-15-0, 0-35-0	±.0005"	0.3 or lessN
513-407-10E	Inch	Carbide	.00005"	Basic	.008"	0-4-0	±.0001"	0.3 or lessN
513-407-10T	Inch	Carbide	.00005"	Full	.01"	0-4-0	±.0001"	0.3 or lessN
513-409-10E	Metric, Inch	Carbide	.0001"" / 0.002mm	Basic	.0075" / 0.2mm	0-10-0, 0-38-0	±3µm	0.3 or lessN
513-409-10T	Metric, Inch	Carbide	.0001"" / 0.002mm	Full	.0075" / 0.2mm	0-10-0, 0-38-0	±3µm	0.3 or lessN
513-412-10E	Inch	Carbide	.001"	Basic	.03"	0-15-0	±.0005"	0.2 or lessN	Long Contact Point
513-412-10T	Inch	Carbide	0005""	Full	.03"	0-15-0	±.0005"	0.2 or lessN	Long Contact Point
513-414-10E	Metric	Carbide	0.01mm	Basic	0.5mm	0-25-0	±10µm	0.2 or lessN	Long Contact Point, Double scale spacing type
513-414-10T	Metric	Carbide	0.01mm	Full	0.5mm	0-25-0	±10µm	0.2 or lessN	Long Contact Point, Double scale spacing type
513-415-10E	Metric	Carbide	0.01mm	Basic	1mm	0-50-0	±10µm	0.2 or lessN	Long Contact Point
513-415-10T	Metric	Carbide	0.01mm	Full	1mm	0-50-0	±10µm	0.2 or lessN	Long Contact Point
513-424-10E	Metric	Carbide	0.01mm	Basic	0.5mm	0-25-0	±5µm	0.3 or lessN	Double scale spacing type
513-424-10T	Metric	Carbide	0.01mm	Full	0.5mm	0-25-0	±5µm	0.3 or lessN	Double scale spacing type
513-425-10E	Metric	Carbide	0.002mm	Basic	0.6mm	0-100-0	±7µm	0.4 or lessN	Revolution counter
513-426-10E	Metric	Carbide	0.01mm	Basic	1.5mm	0-25-0	±16µm	0.4 or lessN	Double scale spacing type, Revolution counter
513-462-10E	Inch	Carbide	0005""	Basic	.03"	0-15-0	±.0005"	0.3 or lessN	Compact
513-463-10E	Inch	Carbide	.0001""	Basic	.008"	0-4-0	±.0001"	0.3 or lessN	Compact
513-464-10E	Metric	Carbide	0.01mm	Basic	0.8mm	0-40-0	±8µm	0.3 or lessN	Compact
513-465-10E	Metric	Carbide	0.002mm	Basic	0.2mm	0-100-0	±4µm	0.3 or lessN	Compact
513-466-10E	Metric	Carbide	0.01mm	Basic	0.5mm	0-25-0	±5µm	0.3 or lessN	Compact, Double scale spacing type
513-471-10E	Metric	Ruby	0.001mm	Basic	0.14mm	0-70-0	±4µm	0.3 or lessN
513-472-10E	Inch	Ruby	.001"	Basic	.03"	0-15-0	±.0005"	0.3 or lessN
513-473-10E	Inch	Ruby	.0001""	Basic	.008"	0-4-0	±.0001"	0.3 or lessN
513-474-10E	Metric	Ruby	0.01mm	Basic	0.8mm	0-40-0	±8µm	0.3 or lessN
513-475-10H	Metric	Ruby	0.002mm	Basic	0.2mm	0-100-0	±4µm	0.3 or lessN
513-477-10E	Metric	Ruby	0.01mm	Basic	1mm	0-50-0	±10µm	0.2 or lessN	Long Contact Point
513-478-10E	Metric	Ruby	0.01mm	Basic	0.5mm	0-25-0	±5µm	0.3 or lessN
513-479-10E	Inch	Ruby	0005""	Basic	.03"	0-15-0	±.0005"	0.2 or lessN	Long Contact Point
