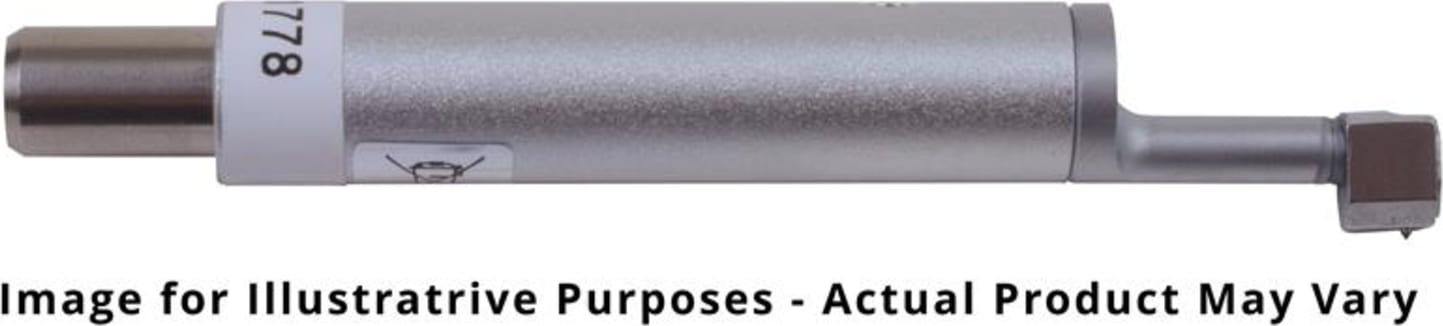

Mitutoyo 178-393 - Extra Small Hole Detector for SJ-210 / SJ-310 (4 mN, 5umR/90 degrees)

Name: Mitutoyo 178-393 - Extra Small Hole Detector for SJ-210 / SJ-310 (4 mN, 5umR/90 degrees)
Brand: Mitutoyo
SKU: Mitutoyo178-393
Price: 720.00 USD
Availability: InStock

0 reviews | Model: Mitutoyo 178-393

Compare

EXTRA SMALL HOLE DETECTOR (2.8MM DI

Standard detector
Measuring force: 4 mN
Stylus form (tip radius/tip angle): 5 µmR/9
Dedicated to the standard/retractable drive unit
Connects to drive unit of SJ-210 or SJ-310

View Product Details

List Price: $768.00

Your Price: $720.00

In Stock:

View Payment Options

Request Quote

Items in This Series



Product	Mitutoyo 178-393 EXTRA SMALL HOLE DETECTOR (2.8MM DI	Mitutoyo 178-296 LOW MEASURING FORCE DETECTOR/SJ201	Mitutoyo 178-390 STANDARD DETECTOR FOR SJ	Mitutoyo 178-387 STD DETECTOR FOR S-DRIVE, 0.75MN	Mitutoyo 178-395 LOW-FORCE DETECTOR FOR SJ	Mitutoyo 178-391 DETECTOR FOR SOFT MATERIALS	Mitutoyo 178-383 SMALL HOLE DETECTOR (LOW MEASURING FORCE)	Mitutoyo 178-392 SMALL HOLE DETECTOR (4.5MM DIA.)	Mitutoyo 178-384 EXTRA SMALL HOLE DETECTOR, 0.75MN	Mitutoyo 178-388 GEAR TOOTH DETECTOR, 0.75MN	Mitutoyo 178-385 DEEP GROOVE DETECTOR, 0.75MN	Mitutoyo 178-394 DEEP GROOVE DETECTOR
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Mitutoyo 178-393

Standard detector
Measuring force: 4 mN
Stylus form (tip radius/tip angle): 5 µmR/9
Dedicated to the standard/retractable drive unit
Connects to drive unit of SJ-210 or SJ-310

Extra Small Hole Detector for SJ-210 / SJ-310 (4 mN, 5umR/90 degrees)

A wide range of optional detectors is available, including detectors for small holes, extra small holes, gear tooth surfaces, and deep grooves.

Model	Measuring Force	Stylus Form (Tip Radius/Tip Angle)	Remarks
178-296	0.75 mN	2 μmR/60˚	Dedicated to the standard/retractable drive unit
178-390	4 mN	5 μmR/90˚	Dedicated to the standard/retractable drive unit
178-387	0.75 mN	2 μmR/60˚	Dedicated to the transverse tracing drive unit
178-386	4 mN	5 μmR/90˚	Dedicated to the transverse tracing drive unit
178-391	4 mN	10 μmR/90˚	Dedicated to the standard/retractable drive unit
178-395	0.75mN	2 μmR/90˚	Dedicated to the standard/retractable drive unit
