• Simple 1 Point Calibration
• Measures Total Dissolved (TDS) Direct & w/Automatic Temperature Compensation (ATC)
• Range: 0 to 1990 ppm
• Resolution: 10 ppm
• Accuracy: ±2% Full Scale
• ATC: 5 to 50°C (41 to 122°F)

Digital. Simple. Compact.

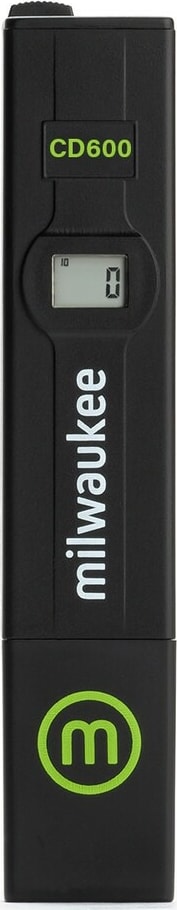

The Milwaukee CD600 Total Dissolved Solids (TDS) Pen is designed for hydroponics, aquariums, horticulture, water conditioning, and many other applications. The CD600 helps you make sure that your plants are receiving the right amount of nutrients or helps you keep your filters up-to-date and clean for water filtration. Keep TDS in your target range to help you achieve better results.

Design Features

• Measures Total Dissolved (TDS) direct and with automatic temperature compensation.
• Ideal range for hydroponics (0 to 1990 ppm).
• Units in ppm are easily convertible to uS/cm.
• Factory calibrated with the ability to recalibrate if needed.
• Automatic Temperature Compensation (ATC).
• 350 hours continuous use (4 x 1.5V batteries included).
• Simple one-point calibration.

Maintenance

TDS/PPM electrodes can develop nutrient buildup over time. To minimize build-up, always rinse the probe in fresh tap or DI water after every use.

Converting TDS to EC

The Milwaukee TDS Pen, like all TDS meters, provides a measure of Total Dissolved Solids (ppm) reading, of contaminates per unit of volume in a solution.

TDS/PPM is often converted to uS/cm. Different scales include the 500 scales, 650 scales, and 700 scales.

Your TDS/PPM readings can be approximately converted to uS/cm as shown in the examples below.

• 1 ppm = 2 uS/cm on the 0.5 factor scale
• 1 ppm = 1.43 µS/cm on the 442 scale or .70 factor scale

• Range: 0 to 1990 ppm
• Resolution: 10 ppm
• Accuracy: ±2% Full Scale
• Typical EMC Deviation: ±2% Full Scale
• Calibration: Manual, at 1 point through trimmer
• Temperature Compensation: Automatic from 5 to 50°C, with ß=2%/°C
• Environment: 0 to 50°C / 32 to 122°F; max RH 100%
• Battery Type: 4 x 1.5V Alkaline (included)
• Battery Life: Approx. 350 hours of continuous use
• Calibration Solution: M10032B (25 sachets 20 mL ea.)
• Dimensions: 6 x 1.2 x 0.95 inches (180 x 65 x 32 mm)
• Weight: 3.5 ounces (0.99 g)
