Metcal SSC-722A Cartridge, Conical, Sharp, 0.5mm (0.02In)

Name: Metcal SSC-722A Cartridge, Conical, Sharp, 0.5mm (0.02In)
Brand: Metcal
SKU: MetcalSSC-722A
Price: 19.66 USD
Availability: InStock

0 reviews | Model: Metcal SSC-722A

Compare

CARTRIDGE, CONICAL, SHARP, 0.5MM (0.02IN)

SSC soldering tip
Please click here for a complete list of part numbers and dimensional information
Compatible with SP200, MFR-1160 and MFR-1161 systems
Compatible with MFR-H6-SSC hand piece
Two temperature ranges available
600 Series - 675°F, for temperature sensitive applications
700 Series - 775°F, for most standard applications

View Product Details

List Price: $20.70

Your Price: $19.66

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Choose a Category

Flux Remover

Flux Remover for the Metcal SSC-722A

MG Chemicals 824-450G Isopropyl Alcohol for Cleaning Electronics and Flux Removal

Catalog: 824-450G

(7)

54 In Stock! $12.95

Add to Cart

Metcal SSC-722A Cartridge, Conical, Sharp, 0.5mm (0.02In)

SSC-722A

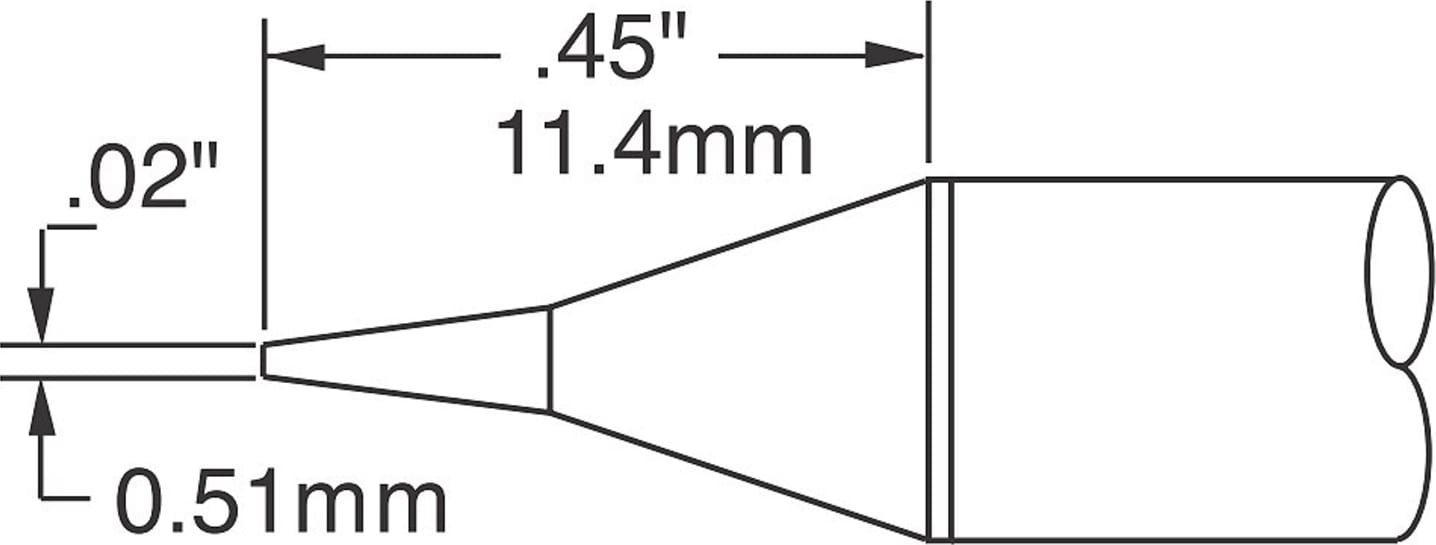

Conical Sharp 0.51mm x 11.4mm (.02" x 45")

Features and Benefits:

The SSC Tip Cartridges have been upgraded with a new, high power coil assembly that delivers additional power to demanding solder joints, without the need to increase temperature. For use with the MFR-1160 and MFR-1161 Soldering Systems with the MFR-H6-SSC hand-piece, but also with the previous Metcal SP200 Soldering System. 700 Series for most standard applications.

SmartHeat

SmartHeat Technology is unique in that it senses the specific thermal demand directly at the solder pad and delivers the precise quantity and flow of thermal energy during both flux activation and intermetallic bonding phases without any adjustment and calibration. SmartHeat is radically different and provides users the only fully safe and thermally effective lead free soldering solution.

Conventional technology senses and responds to the tip temperature and not the thermal energy demand of the solder joint and users are required to calibrate their systems regularly. In today's lead free environment, the conventional technology is thermally inefficient to produce good quality solder joints consistently and leaves process control in the hands of the individual operators.

Conventional Soldering Irons

Metcal SMARTHEAT Technology

Good quality joints are a result of precise quantity and flow of thermal energy and not tip temperature. Fixed temperature cartridges and tips offer users a fully safe and thermally effective solution to their lead free soldering needs as well as complete process control. Furthermore, fixed temperature cartridges and tips can offer better tip life because they can operate at a lower temperature than conventional technology.

The table below provides an overview of applications and maximum tip temperatures:

Series	Application	Max tip temperature
500	Temperature Sensitive	575°F / 302°C
600	Temperature Sensitive	675°F / 357°C
700	FR4/Glass Fiber	775°F / 412°C
800	Ceramic	905°F + / 485°C +

0

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Real people, here to help you.

Get Connected

Join the community and find out what we're up to, experience live product releases, webinars and more!

Buy from people, not just the internet™

First Name:
Last Name:
Email:
Phone (optional):
Subject:
Comments:



Product	Metcal SSC-722A CARTRIDGE, CONICAL, SHARP, 0.5MM (0.02IN)	Metcal SSC-737A CARTRIDGE, CHISEL 1.78MM (0.07IN), 30 DEG	Metcal SSC-738A CARTRIDGE, CHISEL 1.5MM (0.059IN), 30 DEG	Metcal SSC-725A CARTRIDGE, CHISEL 1MM (0.039IN), 30 DEG	Metcal SSC-736A CARTRIDGE, CHISEL 2.5MM (0.098IN), 30 DEG	Metcal SSC-745A CARTRIDGE, BEVEL 0.4MM (0.016IN), 60 DEG	Metcal SSC-701A CARTRIDGE, CONICAL, SHARP, 1MM (0.039IN)	Metcal SSC-726A CARTRIDGE, SHARP, BENT, 0.5MM (0.02 IN), 30 DEG	Metcal SSC-746A CARTRIDGE, CHISEL, LONG, 3MM (0.118IN)	Metcal SSC-754A CARTRIDGE, SHARP, BENT, 0.5MM (0.02 IN), 30 DEG	Metcal SSC-7006P CARTRIDGE, CONICAL, POWER, 1MM (0.04IN)	Metcal SSC-742A CARTRIDGE, CHISEL, LONG, 1.78MM (0.07 IN), 60 DEG	Metcal SSC-713A CARTRIDGE, CHISEL 3MM (0.118IN), 90 DEG	Metcal SSC-717A CARTRIDGE, CHISEL, EXTRA LARGE, 5.3MM (0.209 IN),	Metcal SSC-747A CARTRIDGE, BEVEL 1.78MM (0.07IN), 60 DEG	Metcal SSC-739A CARTRIDGE, HOOF 2.3MM (0.091IN)	Metcal SSC-7174A CARTRIDGE, HOOF 0.76MM (0.03IN), 60 DEG	Metcal SSC-7171A CARTRIDGE, CONICAL, BENT, 0.76MM (0.03IN)	Metcal SSC-7175A CARTRIDGE, HOOF, FACE, 0.76MM (0.03 IN), 60 DEG	Metcal SSC-7172A CARTRIDGE, HOOK, BENT, 0.5MM (0.02IN)	Metcal SSC-761A CARTRIDGE, KNIFE 4.5MM (0.177IN)	Metcal SSC-767A CARTRIDGE, HOOF 1.27MM (0.05IN)	Metcal SSC-770A CARTRIDGE, CHISEL, LONG, 1.78MM (0.07IN)	Metcal SSC-771A CARTRIDGE, CONICAL, CHISEL, 0.8MM (0.031IN)	Metcal SSC-772A CARTRIDGE, CONICAL, CHISEL, 1.78MM (0.07IN)	Metcal SSC-773A CARTRIDGE, KNIFE 5.97MM (0.235IN)	Metcal SSC-774A CARTRIDGE, CONICAL, SHARP, 1.4MM (0.055IN)	Metcal SSC-774T1 SPECIAL BUILD, CONICAL, 1.4MM (.055IN)	Metcal SSC-790A CARTRIDGE, CONICAL, MICRO FINE, 0.25MM (0.01IN)	Metcal SSC-7003P Cartridge, Knife, Asymmetric, 0.25mm (0.01in)
Price	$19.66	$19.66	$19.66	$19.66	$19.66	$19.66	$19.66	$19.66	$21.85	$21.85	$21.85	$24.70	$24.70	$24.70	$29.54	$31.35	$38.86	$38.86	$38.86	$38.86
In Stock	Available to Order Check Lead Time	51	130	107	8	87	Available to Order Check Lead Time	77	17	32	Available to Order Check Lead Time	20	Available to Order Check Lead Time	9	16	22	Available to Order Check Lead Time	Available to Order Check Lead Time	1 Left!	2	Available to Order Check Lead Time	Available to Order Check Lead Time	6	20	39	13	Available to Order Check Lead Time	Available to Order Check Lead Time	12	Available to Order Check Lead Time
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Test Equipment General Attributes
Product Height	0.04 IN
Product Length	0.60 IN
Product Width	0.10 IN
HTS/Schedule B Number	8515.90.4000
Country of Origin	United States
Shipping Height	0.04 IN
Shipping Length	0.60 IN
Shipping Width	0.10 IN
