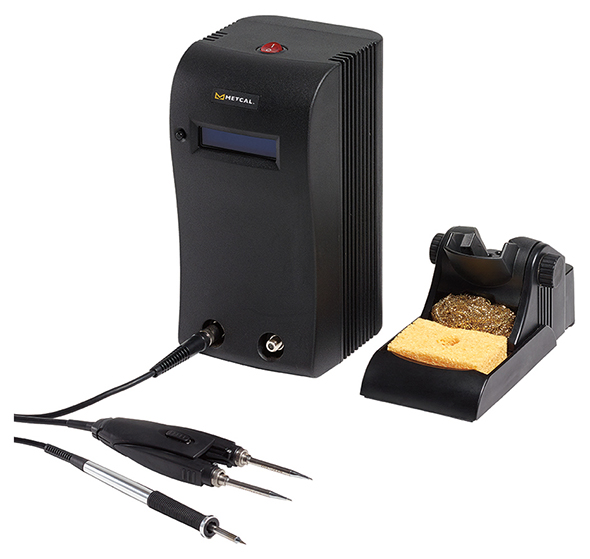

0 reviews | UPC: 1220000616080 | Model: Metcal MX-5241
SYSTEM, PS, MX-PTZ HP, AD HP, WORKSTANDS and ACCESS
List Price: $1,395.00
Your Price: $1,325.25
Sign-in for EDU Pricing!
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!
(1)
(9)
(4)
(5)
(7)
(3)
(36)
(71)

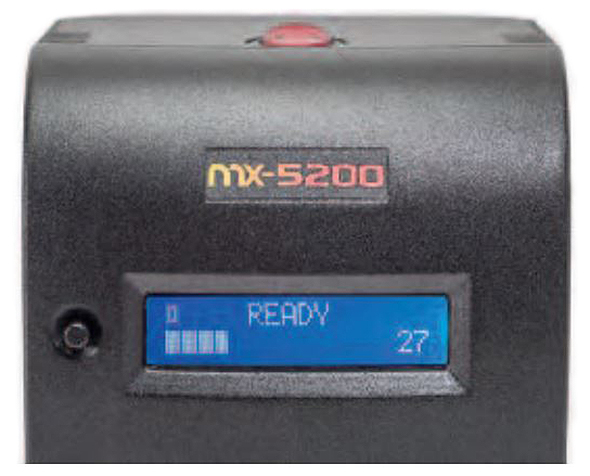

The MX-5200 Series is a precision, high-power soldering system with dual switchable ports. It features ergonomic hand-pieces, a built in power meter, 80 watts of power per channel or 40 watts simultaneous, and includes SmartHeat Technology for quick response and precise control. For two users or single user with dual applications. The MX-5200 can be operated with two hand-pieces dynamically sharing the 80 watts output power based on demand adding even more application flexibility and speed. Fast time to recovery. Delivers increased production rates and throughput no matter the application. The challenges of high mass components, multilayered boards and lead-free solders are seamlessly tackled by the MX- 5200 super-charged power supply. SmartHeat process control. The technology built in every Metcal system means that soldering and rework are always performed at safe, controlled temperatures. Metcal users know that moderate fixed temperatures, where power is varied, provides the best assurance for a well controlled soldering and rework process. TipSaver Workstand improves tip life as well as operator ergonomics. This "Auto Sleep" workstand reduces power to the handpiece when it is placed in the Metcal TipSaver workstand. Reduction in power will substantially decrease tip oxidation, a major cause of reduced tip life. ESD safe and features incoming AC ground monitoring circuitry. The AC (mains) ground monitor detects power line ground failure, immediately alerting the operator and shutting down the system. Only after the power line ground has been restored can the MX-5200 be restarted and soldering operations can be resumed. Built in power indication meter with digital display and bar graph that visually provides the operator with feedback on the status of the soldering operation. Whether using a large mass rework tip for QFPs or a fine-point soldering tip, the power indication meter is a valuable resource for making consistent, acceptable solder joints.
It is also possible to upgrade your existing MX-5200 system with a Metcal upgrade kit. Each kit includes a handpiece and workstand, as shown below.
Answers (1) - Asked by Anonymous
I have this question too (1)
The MX-5241 comes with two hand pieces, the MX-H1-AV iron and MX-PTZ tweezer. The MX-H1-AV is compatible with SMTC and STTC tips. The MX-PTZ is compatible with PTTC tips. Each can be viewed in the description section of this page: • STTC - 500 Series for temperature sensitive applications - 600 Series for temperature sensitive applications - 700 Series for most standard applications - 800 Series for ceramic and high thermal demand applications • SMTC - 500 Series for temperature sensitive applications - 600 Series for temperature sensitive applications - 700 Series for most standard applications - 800 Series for ceramic and high thermal demand applications • PTTC(for MX-PTZ tweezer) -600 Series for temperature sensitive applications -700 Series for most standard applications - 800 Series for ceramic and high thermal demand applications
I found this helpful (0)
Inaccurate? (0)
Answered by Anonymous
I have this question too (0)
Each numbered series has a different maximum temperature. The maximum temperatures are as follows: • 500 Series = 575° F • 600 Series = 675° F • 700 Series = 775° F • 800 Series = 905° F +
