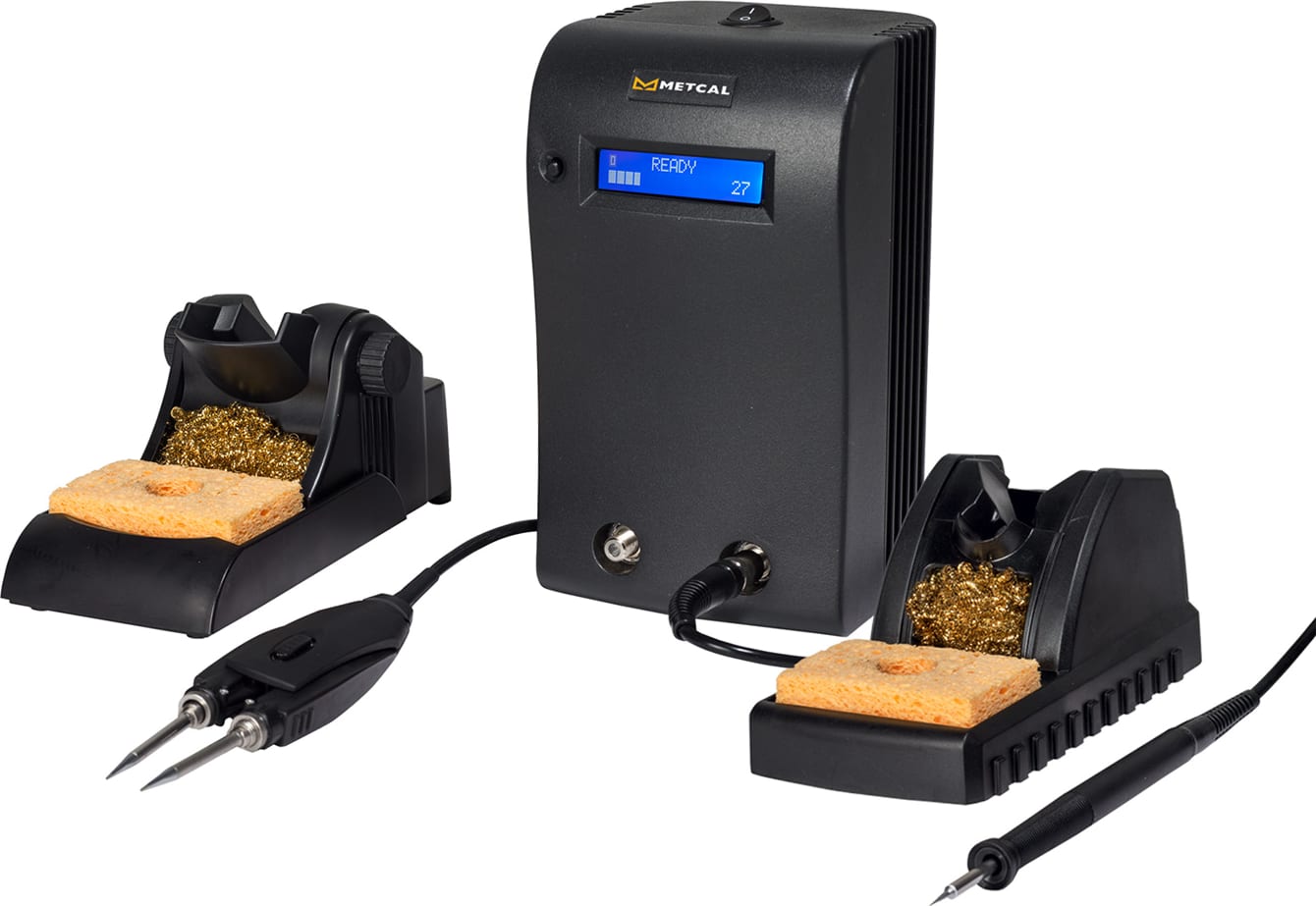

Metcal MX-500SPT Soldering/Rework Station with MX-PTZ Tweezer and MX-RM3E Handpiece

Name: Metcal MX-500SPT Soldering/Rework Station with MX-PTZ Tweezer and MX-RM3E Handpiece
Brand: Metcal
SKU: MetcalMX-500SPT
Price: 1000.35 USD
Availability: InStock

0 reviews | UPC: 1220000613584 | Model: Metcal MX-500SPT

Compare

MX-500 PRECISION TWEEZER REWORK SYSTEM

Dual output rework system
Switchable channels - not used simultaneously
Integrated meter displays power applied to cartridge
User adjustable Power Save mode from 10 to 120 minutes
AC ground monitor detects power line ground failures and immediately shuts down system
Greater process control with SmartHeat Technology
Reduced space requirements
Several configurations available
Can be used with MX upgrade kits, handpieces and accessories
This package includes the MX-RM3E handpiece and MX-PTZ tweezer
Compatible with STTC, SMTC, and PTTC tips (Please see description for full list)

View Product Details

List Price: $1,053.00

Your Price: $1,000.35

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Metcal MX-500SPT MX-500 PRECISION TWEEZER REWORK SYSTEM	Metcal MX-500AV MX-500AV ADVANCE SOLDERING AND REWORK SYSTEM	Metcal MX-500DS MX-500 DESOLDERING REWORK SYSTEM	Metcal MX-500P TWO PORT SWITCHABLE POWER SUPPLY, 100-240 VAC	Metcal MX-500S MX-500S SOLDERING REWORK SYSTEM	Metcal MX-500UF MX-500UF SOLDERING SYSTEM	Metcal MX-570 40W MX System w/ MX-PS500, USF-1000
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Metcal MX-500SPT Accessories

Choose a Category

for the Metcal MX-500SPT

R&R Lotion ICL-8-ESD I.C. Hand Lotion, ESD-Safe, Lightly Fragranced, 8oz, Static...

Catalog: ICL-8-ESD

(0)

In Stock!

Add to Cart

MicroCare MCC-EC00W ESD Presaturated Wipes

Catalog: MCC-EC00W

(0)

In Stock!

Add to Cart

MicroCare MCC-MLCW Multi-Task Surface Electronics Cleaner Presaturated Wipes...

Catalog: MCC-MLCW

(0)

In Stock!

Add to Cart

MicroCare MCC-CCH10A Universal Contact Cleaner

Catalog: MCC-CCH10A

(0)

In Stock!

Add to Cart

Metcal MX-DS1 DESOLDER TOOL, Grip

Catalog: MX-DS1

(0)

In Stock!

Add to Cart

Metcal MX-UK5 UPGRADE KIT: MX-DS1 HANDPIECE and WORKSTAND

Catalog: MX-UK5

(0)

In Stock!

Add to Cart

MG Chemicals 8341-10ML No Clean Flux Paste, 10 mL (0.34 fl oz)

Catalog: 8341-10mL

(1)

In Stock!

Add to Cart

MG Chemicals 835-100ML Rosin Flux, 4.2 Fluid Ounces

Catalog: 835-100mL

(9)

In Stock!

Add to Cart

MG Chemicals 836-P No Clean Flux Pen

Catalog: 836-P

(4)

In Stock!

Add to Cart

Chip Quik SMD291 Tack Flux no clean in a 10cc syringe w/plunger And tip

Catalog: SMD291

(5)

In Stock!

Add to Cart

MG Chemicals 4140-400G Flux Remover for PC Boards

Catalog: 4140-400G

(1)

In Stock!

Add to Cart

MG Chemicals 824-450G Isopropyl Alcohol for Cleaning Electronics and Flux Removal

Catalog: 824-450G

(7)

In Stock!

Add to Cart

MicroCare MCC-BAC IPA Based Flux Remover, IsoClean

Catalog: MCC-BAC

(0)

In Stock!

Add to Cart

MicroCare MCC-CBCSK Cleaning Station Kit, TriggerGrip Tool, Bench Mount, Flux Remover,...

Catalog: MCC-CBCSK

(0)

In Stock!

Add to Cart

MicroCare MCC-DC1 No Clean Flux Remover, VeriClean

Catalog: MCC-DC1

(0)

In Stock!

Add to Cart

MicroCare MCC-DC1PEN No Clean Flux Remover Cleaning Pen

Catalog: MCC-DC1PEN

(1)

In Stock!

Add to Cart

MicroCare MCC-EC7M Slow Drying Flux Remover, Citrus-Based

Catalog: MCC-EC7M

(1)

In Stock!

Add to Cart

MicroCare MCC-FRC General Purpose Flux Remover, Flux Remover C

Catalog: MCC-FRC

(0)

In Stock!

Add to Cart

MicroCare MCC-PRO Alcohol Enhanced Flux Remover, ProClean

Catalog: MCC-PRO

(0)

In Stock!

Add to Cart

MicroCare MCC-PROWR Alcohol Enhanced Presaturated Wipes, ProClean Refill

Catalog: MCC-PROWR

(0)

In Stock!

Add to Cart

MicroCare MCC-SPR Heavy Duty Flux Remover, SuprClean

Catalog: MCC-SPR

(0)

In Stock!

Add to Cart

MicroCare MCC-VOC10A VOC-Free Flux Remover, UltraClean

Catalog: MCC-VOC10A

(0)

In Stock!

Add to Cart

OC White Green-Lite 5in Round Green-Lite 5” round magnifier – product selection tool

(0)

In Stock!

Configure Yours

OC White Green-Lite 6in Round Green-Lite 6” round magnifier – product selection tool

(0)

In Stock!

Configure Yours

OC White Green-Lite 7 x 5.25in Green-Lite 7 x 5.25” rectangular magnifier – product...

Catalog: Green-Lite

(1)

In Stock!

Configure Yours

OC White Green-Lite 7.5in Round Green-Lite 7.5” round magnifier – product selection tool

(0)

In Stock!

Configure Yours

Panavise 201 PV JR. COMBINATION VISE HEAD AND BASE

Catalog: 201

(0)

In Stock!

Add to Cart

Panavise 301 STANDARD PANAVISE

Catalog: 301

(0)

In Stock!

Add to Cart

Sensepeek PC BITE KIT SP10 TW PCBite kit with 4x SP10 probes and test wires

Catalog: 4003

(3)

In Stock!

Add to Cart

MG Chemicals 4900P-25G Lead Free Solder Paste, SAC305, No Clean (Keep Refrigerated)

Catalog: 4900P-25G

(3)

In Stock!

Add to Cart

Amerway AM63.37.SPOOL.1LB 63/37 tin lead solder, 1 lb spool, 0.032 diameter, Made in...

(36)

In Stock!

Add to Cart

Metcal CV-H6-HTDX HP, CONNECTION VALIDATION, HTD, LONG REACH

Catalog: CV-H6-HTDX

(0)

In Stock!

Add to Cart

Metcal MX-H1-AV HP, SOLDERING, CARTRIDGE ADV VERSION FOR STTC CART

Catalog: MX-H1-AV

(0)

In Stock!

Add to Cart

Metcal MX-H2-UF HP, SOLDERING, CARTRIDGE UF VERSION FOR UFTC CART

Catalog: MX-H2-UF

(0)

In Stock!

Add to Cart

Metcal MX-H9-MFH Soldering Handpiece for Use With Mx Series Systems, Microfine

Catalog: MX-H9-MFH

(0)

In Stock!

Add to Cart

Metcal MX-RM3E ESD SOLDER HANDLE W/CP2 FOR MX500 SYSTEMS

Catalog: MX-RM3E

(0)

In Stock!

Add to Cart

Metcal MX-UK1 UPGRADE KIT: ADV SOLDERING HANDPIECE and WORKSTAND

Catalog: MX-UK1

(0)

In Stock!

Add to Cart

Metcal MX-UK2 UPGRADE KIT: UF SOLDERING HANDPIECE and WORKSTAND

Catalog: MX-UK2

(0)

In Stock!

Add to Cart

Metcal MX-UK9 Mx Handpiece + Workstand, Microfine

Catalog: MX-UK9

(0)

In Stock!

Add to Cart

Metcal MX-H10-MFT Tweezer Handpiece for Use With Mx Soldering Systems, Microfine

Catalog: MX-H10-MFT

(0)

In Stock!

Add to Cart

Metcal MX-PTZ PRECISION TWEEZER HANDPIECE, W/CORD, MX SERIES

Catalog: MX-PTZ

(0)

In Stock!

Add to Cart

Metcal MX-UK10 Mx Tweezer + Workstand, Microfine

Catalog: MX-UK10

(0)

In Stock!

Add to Cart

Metcal MX-UK4 UPGRADE KIT: PRECISION TWEEZERS HP and WORKSTAND

Catalog: MX-UK4

(0)

In Stock!

Add to Cart

Metcal PTC-6CN1404A Tweezer Cartridge, Bent 30 Degrees, 0.4mm

Catalog: PTC-6CN1404A

(0)

In Stock!

Add to Cart

Metcal STTC-025P CARTRIDGE, CHISEL, 1MM (0.04 IN), 30DEG

Catalog: STTC-025P

(0)

In Stock!

Add to Cart

Hakko CHP-170 Cutter, Micro, Clean Cut, 16AWG

Catalog: CHP-170

(71)

In Stock!

Add to Cart

Panavise 209 VACUUM BASE PV JR.

Catalog: 209

(0)

In Stock!

Add to Cart

Panavise 350 MULTI-PURPOSE WORK CENTER

Catalog: 350

(4)

In Stock!

Add to Cart

Metcal MX-500SPT - Soldering/Rework Station with MX-PTZ Tweezer and MX-RM3E Handpiece

Two channel soldering / rework station

Switchable outputs - not used simultaneously
40 watt output
Compatible with variety of accessories
This package includes the MX-PTZ tweezer and MX-RM3E handpiece

The MX-500 Series is a precision, high-power soldering system with dual switchable ports. The system utilizes SmartHeat Technology, wherein each cartridge is equipped with a self-regulating heater which 'senses' its own temperature and closely maintains its pre-set idle temperature for the life of the heater-tip. The tip temperature is determined by the inherent metallurgical properties of the heater; no external adjustment or equipment is required. The MX-500 retains switchable dual port, 40W operation while introducing numerous new features in a new housing.

Features and benefits:

Integrated Power Indication Meter: a built in net power meter which will display a graphical and numerical representation of the power applied to the cartridge.
User Programmable PowerSave Mode: the time to enter PowerSave Mode is adjustable from 10 to 120 minutes.
Ground Fault Interrupt: AC ground monitor detects power line ground failures and immediately alerts the operator and shuts down the system. Only after the power line ground has been restored, can the MX-500 be restarted and soldering operations can be resumed.
Universal Power Supply: automatically senses the input line voltage and adjusts accordingly, which allows for worldwide operation without adaptors or a change in performance.
Compatibility with all MX products: the MX-500 redesign allows full compatibility with existing and previous MX upgrade kits, tip-cartridges, hand-pieces and accessories.
Greater process control with SmartHeat Technology
Reduced space requirements

Compatible with STTC, SMTC, and PTTC tips

STTC (for MX-RM3E iron)
- 500 Series for temperature sensitive applications
- 600 Series for temperature sensitive applications
- 700 Series for most standard applications
- 800 Series for ceramic and high thermal demand applications
SMTC (for MX-RM3E iron)
- 500 Series for temperature sensitive applications
- 600 Series for temperature sensitive applications
- 700 Series for most standard applications
- 800 Series for ceramic and high thermal demand applications
PTTC (for MX-PTZ tweezer)
- 600 Series for temperature sensitive applications
- 700 Series for most standard applications
- 800 Series for ceramic and high thermal demand applications

System Specifications
Ambient Operating Temperature	10 - 40°C
Maximum Enclosure Temperature	55°C
Input Line Voltage	100 - 240 VAC, grounded circuit
Input Line Frequency	50/60 Hz
Output Power (Max.)	40 Watts max. Per channel at 22°C ambient temperature
Output Frequency	13.56 MHz
Power Cord 3-Wire	183cm (18/3") SJT
Dimensions w x d x h	12.1cm (4.8") x 12.1cm (4.8") x 22.2cm (8.8")
Certification / Marking	cNRTLus, CE
Surface Resistivity	10⁵- 10⁹ Ω/in
Tip-to-Ground Potential	<2mV
Tip-to-Ground Resistance	<2 ohms
Idle Temperature Stability	± 1.1°C in still air
Hand-piece Cable Length	L=183cm (72"), burn proof, ESD safe
Hand-piece Connector	F connector

Tech Specs

Desoldering Equipment / Rework Template
Functionality (Soldering Equipment)	Soldering
Channels	2
Display Type	Digital
Power Supply Voltage	110V
Test Equipment General Attributes
HTS/Schedule B Number	8515.19.0000
ECCN Number	EAR99
Country of Origin	China

Start typing your question...

Answers (1) - Asked by Anonymous

I have this question too (0)

Each numbered series has a different maximum temperature. The maximum temperatures are as follows: • 500 Series = 575° F • 600 Series = 675° F • 700 Series = 775° F • 800 Series = 905° F +

I found this helpful (0)

Inaccurate? (0)

Answered by TEquipment

Answers (1) - Asked by Anonymous

I have this question too (0)

These systems all include the Metcal MX-500 power supply but have different hand pieces. The following is an overview of each: Systems with one handpiece • MX-500S, MX-500 power supply, MX-RM3E soldering/rework handpiece, WS1 sleeper workstand • MX-500AV, MX-500 power supply , MX-H1-AV Advanced handpiece , MX-W1AV workstand • MX-500UF, MX-500 power supply, MX-H2-UF Ultra Fine handpiece, MX-W1AV workstand Systems with two handpieces • MX-500SPT, MX-500 power supply, MX-PTZ tweezer, MX-W4PT TipSaver workstand, MX-RM3E soldering/rework handpiece , WS1 sleeper workstand • MX-500DS, MX-500 power supply, MX-DS1 desoldering handpiece , MX-W5DS TipSaver worksand , MX-RM3E soldering/rework handpiece, WS1 sleeper workstand System with no handpiece • MX500P, MX-500 power supply, Accessories sold separately

I found this helpful (0)

Inaccurate? (0)

Answered by TEquipment

Answers (1) - Asked by Anonymous

I have this question too (0)

The MX-500SPT includes the MX-PTZ tweezer and MX-RM3E handpiece. Compatible tips can be viewed in the description section • STTC, 500 Series for temperature sensitive applications, 600 Series for temperature sensitive applications, 700 Series for most standard applications, 800 Series for ceramic and high thermal demand applications • SMTC , 500 Series for temperature sensitive applications , 600 Series for temperature sensitive applications, 700 Series for most standard applications, 800 Series for ceramic and high thermal demand applications • PTTC(for MX-PTZ tweezer), 600 Series for temperature sensitive applications, 700 Series for most standard applications, 800 Series for ceramic and high thermal demand applications

I found this helpful (0)

Inaccurate? (0)

Answered by TEquipment

0

Out of 5

Average Customer Review

Share your thoughts with other customers

Write a Review

Add to cart

Compare

Real people, here to help you.

Get Connected

Join the community and find out what we're up to, experience live product releases, webinars and more!

How Can We Help You?

Questions?

Log in to Your Account

Not a member yet? It's FREE!

Top Categories

Metcal MX-500SPT Soldering/Rework Station with MX-PTZ Tweezer and MX-RM3E Handpiece

Items in This Series

Recommended for you

Metcal MX-500SPT Accessories

for the Metcal MX-500SPT

R&R Lotion ICL-8-ESD I.C. Hand Lotion, ESD-Safe, Lightly Fragranced, 8oz, Static...

MicroCare MCC-EC00W ESD Presaturated Wipes

MicroCare MCC-MLCW Multi-Task Surface Electronics Cleaner Presaturated Wipes...

MicroCare MCC-CCH10A Universal Contact Cleaner

Metcal MX-DS1 DESOLDER TOOL, Grip

Metcal MX-UK5 UPGRADE KIT: MX-DS1 HANDPIECE and WORKSTAND

MG Chemicals 8341-10ML No Clean Flux Paste, 10 mL (0.34 fl oz)

MG Chemicals 835-100ML Rosin Flux, 4.2 Fluid Ounces

MG Chemicals 836-P No Clean Flux Pen

Chip Quik SMD291 Tack Flux no clean in a 10cc syringe w/plunger And tip

MG Chemicals 4140-400G Flux Remover for PC Boards

MG Chemicals 824-450G Isopropyl Alcohol for Cleaning Electronics and Flux Removal

MicroCare MCC-BAC IPA Based Flux Remover, IsoClean

MicroCare MCC-CBCSK Cleaning Station Kit, TriggerGrip Tool, Bench Mount, Flux Remover,...

MicroCare MCC-DC1 No Clean Flux Remover, VeriClean

MicroCare MCC-DC1PEN No Clean Flux Remover Cleaning Pen

MicroCare MCC-EC7M Slow Drying Flux Remover, Citrus-Based

MicroCare MCC-FRC General Purpose Flux Remover, Flux Remover C

MicroCare MCC-PRO Alcohol Enhanced Flux Remover, ProClean

MicroCare MCC-PROWR Alcohol Enhanced Presaturated Wipes, ProClean Refill

MicroCare MCC-SPR Heavy Duty Flux Remover, SuprClean

MicroCare MCC-VOC10A VOC-Free Flux Remover, UltraClean

OC White Green-Lite 5in Round Green-Lite 5” round magnifier – product selection tool

OC White Green-Lite 6in Round Green-Lite 6” round magnifier – product selection tool

OC White Green-Lite 7 x 5.25in Green-Lite 7 x 5.25” rectangular magnifier – product...

OC White Green-Lite 7.5in Round Green-Lite 7.5” round magnifier – product selection tool

Panavise 201 PV JR. COMBINATION VISE HEAD AND BASE

Panavise 301 STANDARD PANAVISE

Sensepeek PC BITE KIT SP10 TW PCBite kit with 4x SP10 probes and test wires

MG Chemicals 4900P-25G Lead Free Solder Paste, SAC305, No Clean (Keep Refrigerated)

Amerway AM63.37.SPOOL.1LB 63/37 tin lead solder, 1 lb spool, 0.032 diameter, Made in...

Metcal CV-H6-HTDX HP, CONNECTION VALIDATION, HTD, LONG REACH

Metcal MX-H1-AV HP, SOLDERING, CARTRIDGE ADV VERSION FOR STTC CART

Metcal MX-H2-UF HP, SOLDERING, CARTRIDGE UF VERSION FOR UFTC CART

Metcal MX-H9-MFH Soldering Handpiece for Use With Mx Series Systems, Microfine

Metcal MX-RM3E ESD SOLDER HANDLE W/CP2 FOR MX500 SYSTEMS

Metcal MX-UK1 UPGRADE KIT: ADV SOLDERING HANDPIECE and WORKSTAND

Metcal MX-UK2 UPGRADE KIT: UF SOLDERING HANDPIECE and WORKSTAND

Metcal MX-UK9 Mx Handpiece + Workstand, Microfine

Metcal MX-H10-MFT Tweezer Handpiece for Use With Mx Soldering Systems, Microfine

Metcal MX-PTZ PRECISION TWEEZER HANDPIECE, W/CORD, MX SERIES

Metcal MX-UK10 Mx Tweezer + Workstand, Microfine

Metcal MX-UK4 UPGRADE KIT: PRECISION TWEEZERS HP and WORKSTAND

Metcal PTC-6CN1404A Tweezer Cartridge, Bent 30 Degrees, 0.4mm

Metcal STTC-025P CARTRIDGE, CHISEL, 1MM (0.04 IN), 30DEG

Hakko CHP-170 Cutter, Micro, Clean Cut, 16AWG

Panavise 209 VACUUM BASE PV JR.

Panavise 350 MULTI-PURPOSE WORK CENTER

Metcal MX-500SPT - Soldering/Rework Station with MX-PTZ Tweezer and MX-RM3E Handpiece

Two channel soldering / rework station

Compatible with STTC, SMTC, and PTTC tips

Tech Specs

Desoldering Equipment / Rework Template

Test Equipment General Attributes

0

Featured Review

We'd love to hear from you

Real people, here to help you.

Get Connected

My Account

Promotions & Offers

Resources

Company
