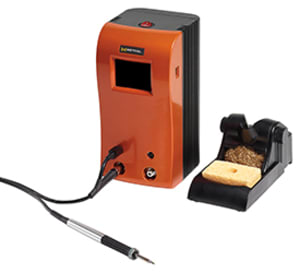

5 (1 Review) | Model: Metcal CV-5210
SYSTEM, CVPS, 1 CVHP, 1 WORKSTAND and ACCESS
List Price: $1,021.00
Your Price: $969.95
Sign-in for EDU Pricing!
We accept purchase orders and all major credit cards. We also provide financing via Klarna at checkout for qualifying purchases.
Have a question or need to apply for payment terms?
Contact us.
Have a question? Ask an expert.
(0)
In Stock!
(7)
(1)
(3)
Metcal is raising the bar with a technology that will change hand soldering forever. Metcal soldering stations have led the way with SmartHeat technology for 35 years. SmartHeat senses the thermal load and instantly delivers Power on Demand directly to the joint. The embedded, self-regulating heater delivers the right amount of power based on the requirements of the solder joint. This provides a fast, safe and repeatable process with no calibration required. Currently, the industry standard relies on a visual inspection of the solder joint. Metcal has developed a better way… Introducing Connection Validation. The intermetallic compound thickness is critical in the formation of a solder joint. Connection Validation (CV) evaluates the quality of the solder joint by calculating the intermetallic compound formation and provides closed loop feedback to the operator. CV provides feedback to the operator via the LED light ring integrated in the hand-piece. It takes the risk associated with the variables involved in the soldering activity and removes the success and failure determination of a good solder joint out of the hands of the operator. CV complements the skill of the operator to judge the quality of a solder joint by introducing an objective method of evaluating solder joint quality. This systemic and objective approach provides repeatability and a measurable standard to the soldering process. Features and benefits:

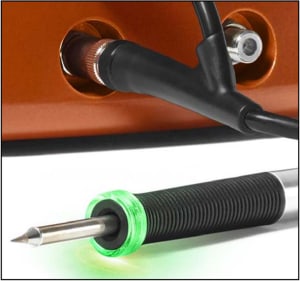

LED equipped hand piece signals to operator when a good solder joint is formed.

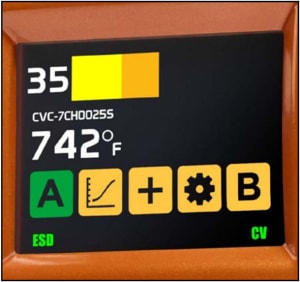

Tip temperature displayed on large color screen.

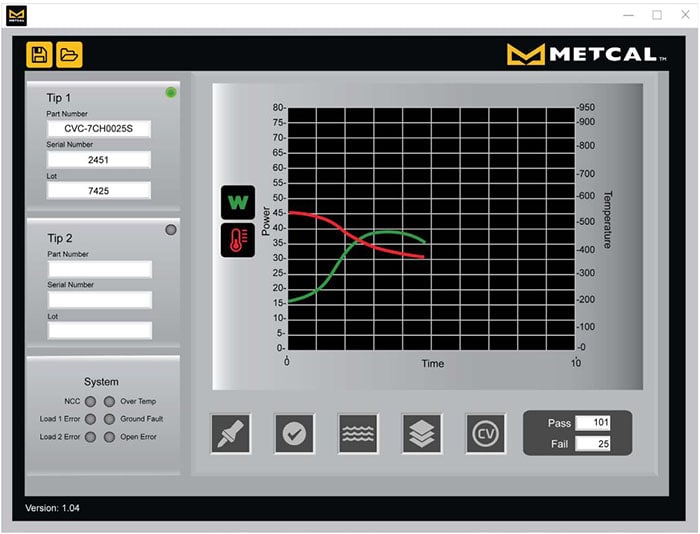

Introducing the All-New CV Monitoring Software Improve your solder process traceability and create a performance baseline using CV’s intelligent cartridges plus CV-5000 Monitor software. Using our Connection Validation patented technology, CV Monitor software allows you to capture solder process information over time for each joint when attached to the communication port. You'll get:
*Metcal Exclusive
Upgrade Kits Metcal offers several upgrade kits to expand the functionality of your existing Connection Validation system. With Metcal upgrade kits, it is possible to build a customized system, matched exactly to your requirements. Users can add individual tools without having to buy larger packaged system with items they may not need. The following are upgrade kits which are compatible with the CV-5210.
For users not requiring a full upgrade kit, tools can also be purchased individually. The following tools are compatible with the Metcal CV-5210.
Compatible with CVC tips
Compatible with SMC tips
Answers (1) - Asked by Anonymous
I have this question too (0)
There are two main groups, the CVC (Connection Validation Cartridges) and SMC (Surface Mount Cartridges). Each are also available in five different temperature ranges (Links are available in the description section) • CVC Series • CVC - 500 Series (max temperature 575° F) • CVC - 600 Series (max temperature 675° F) • CVC - 700 Series (max temperature 775° F) • CVC - 800 Series (max temperature 875° F) • CVC - 900 Series (max temperature 925° F) • SMC Series • SMC - 500 Series (max temperature 575° F) • SMC - 600 Series (max temperature 675° F) • SMC - 700 Series (max temperature 775° F) • SMC - 800 Series (max temperature 875° F) • SMC - 900 Series (max temperature 925° F)
I found this helpful (1)
Inaccurate? (0)
Answered by TEquipment
Please select a rating star.
Please complete this field.
Email Adrress is not Valid.
Almost there, please complete all required fields
Out of 5
Average Customer Review
View All Reviews
Share your thoughts with other customers
Displaying 1 review
Most Helpful First | Newest First
Recommend to a Friend
Excellent product
5.0
I almost wanted to leave a 1 star since this unit has made it impossible for me to use my old gear. It all just sits around collecting dust now. The CV5200 unit is just too good to go back to anything esle. It may be a little on the pricey side but its well worth it in my opinion. Here's a short video showing just how fast its ready to go. https://www.youtube.com/watch?v=e6ZKhRoFzgk
Verified Purchase Keyworks.us on Aug 12, 2021 I found this helpful (0)
