Meriam 1500 Smart Transmitter

Name: Meriam 1500 Smart Transmitter
Brand: Meriam
SKU: Meriam1500
Availability: InStock

0 reviews | Model: Meriam 1500

Compare

Smart Transmitter

? 0.025% of URL (Upper Range Limit).
Absolute, gauge and differential pressure sensors.
316SS isolated sensors for wet/corrosive process.
Cost saving, non-isolated sensors for gas service.
No temperature effect on RS-485 output from 23? to 122? F.

View Product Details

In Stock:

View Payment Options

Recommended for you

1500 Smart Transmitter

Precision Instruments for Pressure, Flow, Temperature, and Level

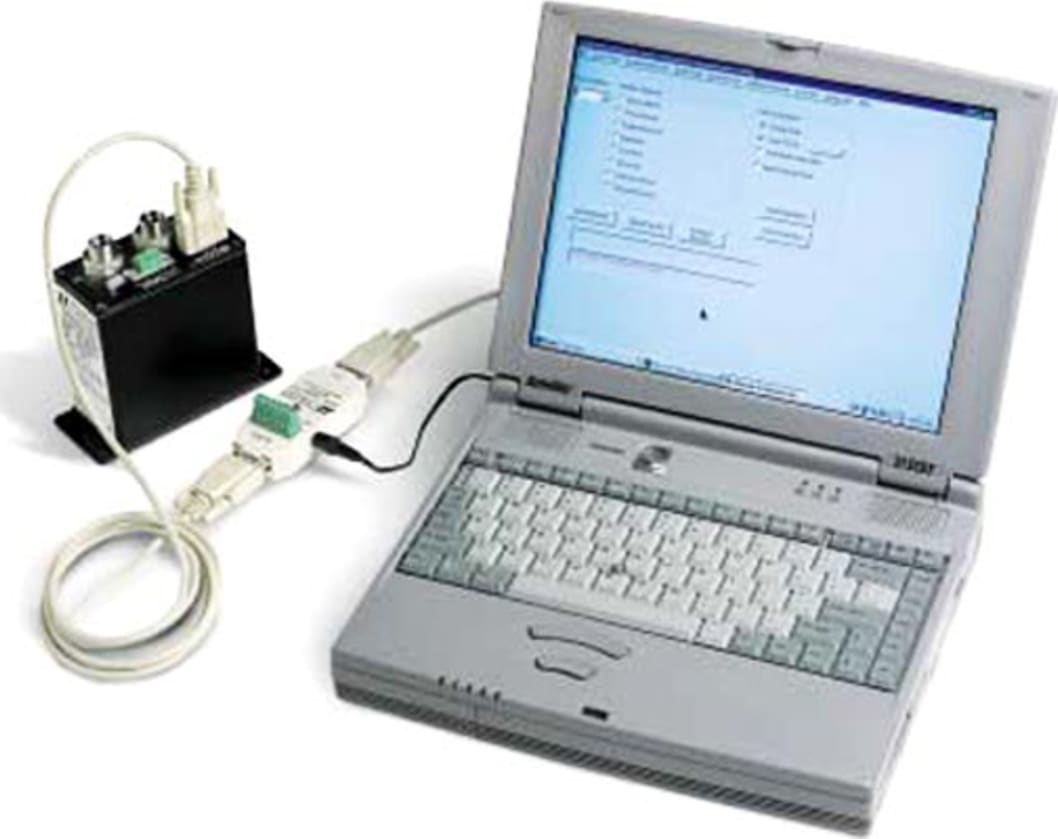

Meriam?s 1500 Digital Transmitters are for high accuracy applications for OEM?s, on manufactured skids, in process control systems and plant instrumentation. RS-485 communications allows for easy configuration using a PC or laptop computer. The RS-485 addressable interface allows up to 32 devices to be networked together. Optional 1-5 Volt or 4 - 20 mA outputs are also configured from a PC or laptop.

1500 Digital Transmitter
Digital Communications

RS-485 PROGRAMMING:
Pressure zero set
Reset factory zero
Analog output span and offset factor set
Damping factor set
Engineering unit selection
Multi drop address selection

1500 Transmitter Accessories/Options:

RS-485 interface devices
Process connection adapters
Electrical connection adapters
System setup software
Simultaneous digital communications and analog outputs

1500 Digital Transmitter Ordering Information

DN0020	0-20" H₂O	Differential
DN0200	0-200" H₂O	Differential
DN2000	0-2000" H₂O	Differential
GI0020	0-20 PSI	Gauge
GI0200	0-200 PSI	Gauge
GI2000	0-2000 PSI	Gauge
AI2000	0-2000 mm Hg	Absolute
AI0900	0-900 mm Hg	Absolute

Please Specify the Model Number and Sensor Type. Example is based on a Model 1500 with a 200" H2O Differential sensor - 1500DN0200

Standard Features on the 1500 Digital Transmitter
Damping rates	User selectable from 0.1 to 25 seconds
NIST Traceability	NIST certificate supplied with all models.
Temperature Range	Storage: -40?F to 140?F (-40?C to 60?C) Operating: 23?F to 122?F (-5?C to 50?C)
Process Connections	Pressure: 1/8" female NPT, 316ss Electrical: DB-9
Media compatibility	Non-isolated Differential sensor (DN) for clean, dry, non-corrosive gases. Isolated Gauge and Absolute sensor (GI and AI) for fluids compatible with 316ss.
Pressure limits	Twice range on Gauge and Absolute (GI and AI) units. Twice range on Differential (DN) units when pressurized on high side only and 150 PSI (10.5 Kg/cm²) static when applied to both sides of the sensor simultaneously.
Engineering units	cm H₂O, in H₂O (at 39.2, 60 and 68?F), mBar, Bar, mm Hg, in Hg at 0?C, PSI, kPa, Kg/cm² and user scaled.
Enclosure	2" x 4" x 4" NEMA 12 Aluminum Housing
Mounting	Standard transmitter secures by pressure connections. Optional mountings are DIN rail clip or surface/wall mount flange.
Weight	DN units are 1 lb. GI & AI units are 2 lb.

1500 Digital Transmitter Output Specifications
Output Accuracy	RS-485 ±0.025 % of URL (±0.1% 20" sensor) 4 - 20 mA ±0.05% of URL. ±0.125% on 20" sensor ±0.125% span @ 4:1 turndown of URL 1 - 5 VDC ±0.05% of URL ±0.125% on 20" sensor (or 0 - 5V) ±0.125% span @ 4:1 turndown of URL
Output Temperature Effect	Digital Output: No temperature effect from -5? C to 50? C Analog Output: ±.005% of span /?C
Long Term Stability	±0.1% URL per year
Output Options	RS-485 (standard): Half Duplex, 3 wire- TR-1, TR-0, and Signal ground. 9600 baud, 1 start bit, 1 stop bit and no parity. External power of 7 to 32 VDC (40 mAmax). Multi-drop addressing with up to 32 devices maximum per RS-485 segment. RS-485 repeaters for additional segments. 4-20 mA (optional): 2 wire current loop. 17 to 32 VDC for loop supplied 4-20 mA. 1-5V (or 0 - 5V) (optional) : 4 wire, 17 to 32 VDC powered.

Standard Features - 2100 Series Smart Gauge Family
Approvals	CSA Intrinsically Safe on battery models. CE mark available on battery and 4-20 mA units.
NIST Traceable	NIST certificate supplied with all models.
Media compatibility	Non-isolated Differential sensor (DN) for clean, dry, non-corrosive gases. Isolated Gauge and Absolute sensor (GI and AI) for fluids compatible with 316ss.
Process connection	1/8" female NPT, 3l6ss
Enclosure	4 lbs, 1/4" DIN (3.8" x 3.8" x 6.5") aluminum enclosure with epoxy finish. Standard unit is NEMA 4X on front panel only. Battery and 4-20 mA units are NEMA 4X throughout.
Damping	selectable from 0.1 to 50 seconds
Adjustable Deadband	on SPDT relays
Selectable Timeout	conserves battery
Lockout	prevents inadvertent resetting of gauge configuration.
Temperature	Storage: -40?F to 140?F (-40 to 60?C) Operating: 23?F to 122?F (-5 to 50?C)
Pressure Limits	Twice range on Gauge and Absolute (GI and AI) units. Twice range on Differential (DN) units when pressurized on high side only 20x on 20" sensors when pressurized on high side only and 150 PSI (10.5 Kg/cm2) static when applied to both sides of the sensor simultaneously.
Display	4 1/2 digit LCD, 0.6" high (15.24mm)
Power/Outputs	Standard unit has selectable 110 VAC 50/60 Hz, 220 VAC 50/60 Hz, or 12 to 28 VDC power. Included are an RS-232C and two set point relays rated 1 amp resistive @24 VDC, .5 amp resistive @ 115 VAC. Options: Lithium battery unit with field replaceable battery board and user defined auto shut-off. 12 to 28 VDC power for 4-20 mA and RS-232 output or 1-5 VDC and RS-232
Accuracy	±0.05% of Full Scale( ±0.1% FS on 20" H₂O Sensor). This includes the combined effects of linearity, repeatability, hysteresis and temperature
