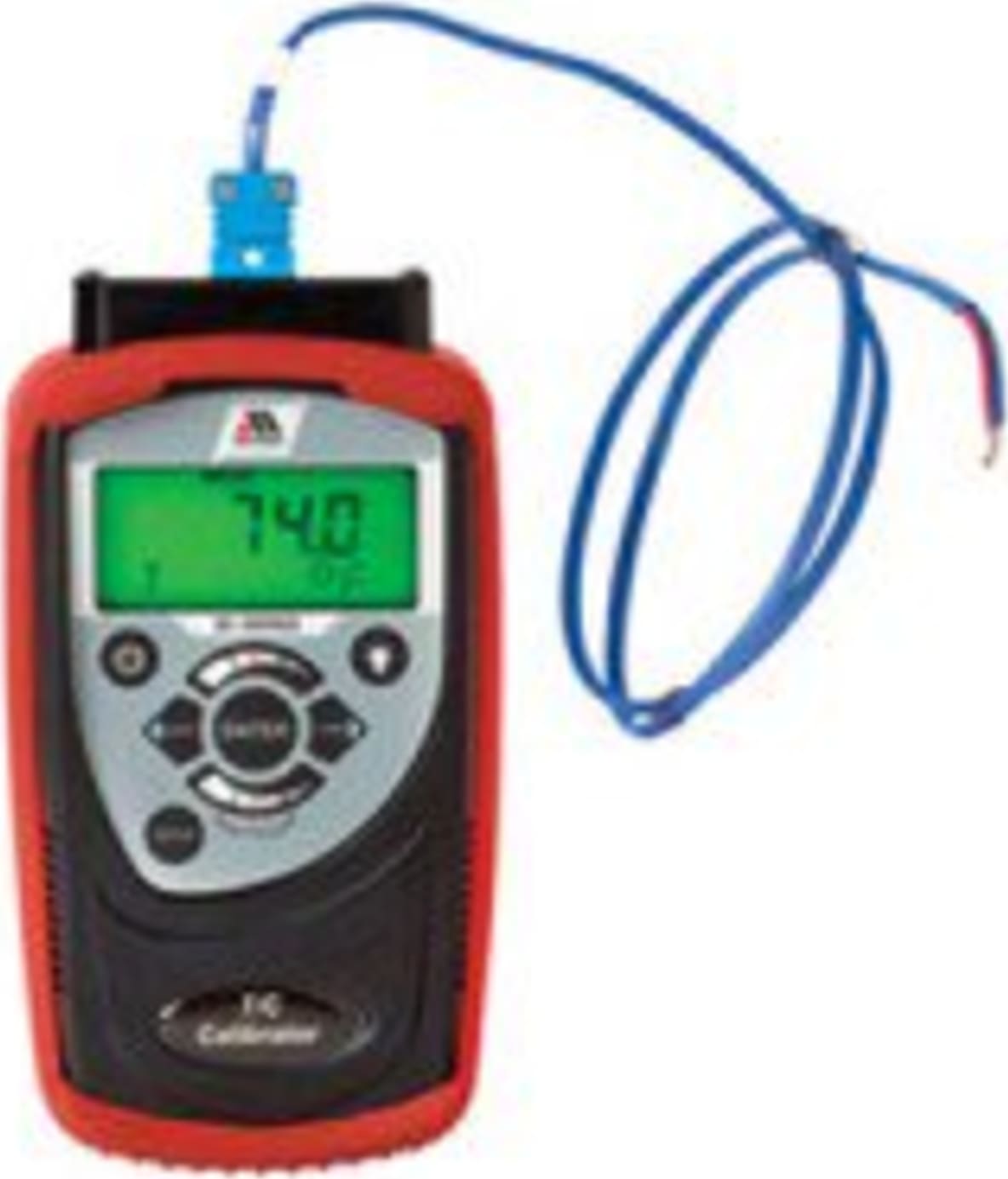

The M1 Series of handheld calibrators from Meriam Process Technologies combines form, fit and function to deliver precision measurement for field, plant or lab use.
Thermocouple Types
Type B, E, J, K, N, R, S, T and millivolts
Accuracy
± 0.005% Reading ± 6 µV
Engineering Units
Displays the temperature of a T/C in °C, °F, °R, K and millivolts.
Record Mode
Store up to 240 temperature measurements.
• Automatic – the current value is automatically stored every 5 seconds, for up to 20 minutes.
• Manual – the current value is stored each time the Units key is pressed, up to 240 times.
Backlight
A green backlight is user activated via the backlight key. A red backlight is automatically activated during an over range condition.
Auto Shutoff
To conserve battery life, the M130 will automatically power off after 30 minutes of keypad inactivity.
Low Battery Indication
BAT icon is displayed when batteries require replacement. Approximately 2 hours of run time remains when BAT appears.
