| Volume approx. |
49 |

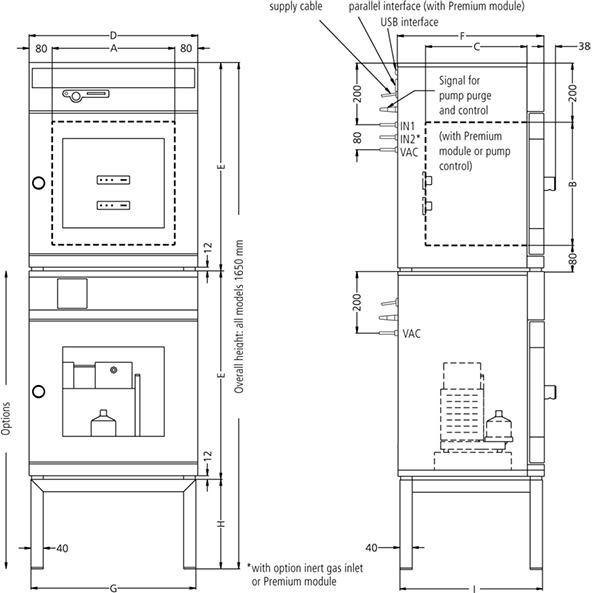

| Width (A) mm |
385 |
| Height (B) mm |
385 |
| Depth (C) mm |
330 |
| Max. number of thermoshelves – basic equipment/with Premium Module number |
2/4 |
| Distance between thermoshelves mm |
75 |
| Maximum load per shelf approx. kg |
20 |
| Maximum load per oven approx. kg |
60 |
| Width (D) mm |
550 |
| Height (E) mm |
680 |
| Depth (without door handle, depth of handle 38 mm) (F) mm |
480 |
| Safety glass door |
Textured stainless steel frame with spring-loaded safety glass on inside and anti-splinter screen ESG on outside of door |
| Door seal |
Endless silicone profile seal |
| Working-temperature range °C |
at least 5 above ambient temperature to +200 |
| Setting temperature range °C |
+20 to +200 |
| Temperature variation in time (to DIN 12880 |
2007-05) (aluminium thermoshelf) K: ≤ ± 0.3 |
| Temperature uniformity (surface) at +160 °C/20 mbar (aluminium thermoshelf) |
K ≤ ± 2 |
| Pressure (vacuum) |
Digital electronic pressure control (in programme operation up to 40 ramps, adjustable for each segment) for vacuum via solenoid valves. Tubing for vacuum, air and inert gas are made of material 1.4571 (ASTM 316 Ti). Adjustable from 5 mbar up to 1100 mbar. Programmable, digitally controlled inlet for air. Integrated process control with programmable temperature and vacuum cycles enabling amongst others accelerated moisture reduction. |
| Permitted final vacuum mbar |
0.01 |
| Maximum leakage rate bar/h |
0.01 |
| Monitor |
Microprocessor temperature monitor acting as overtemperature protection (protection class 3.1) with Pt100, incorporating fault diagnostics with visual and acoustic alarm
Digital over- and undertemperature monitor
Temperature monitoring band automatically linked to the setpoint (ASF)
Multi-Level-Overtemperature-Protection (MLOP) for each thermoshelf
Relay for reliable heating cut-off in case of fault |
| Interior |
Stainless steel interior, material 1.4404 (ASTM 316 L), hermetically welded, with removable mountings at the sides for cleaning, including thermoshelf guide bars, as well as mounting on top to avoid turbulences |

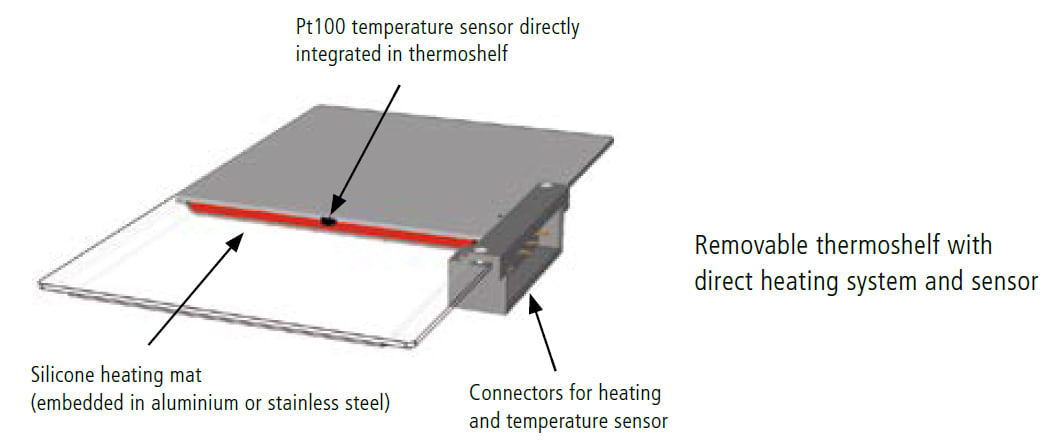

| Internals |
Thermoshelf, aluminium, eloxadised material 3.3547 (ASTM B209) |
| Housing |
Textured stainless steel, rear zinc-plated steel, aesthetic functional glass-stainless steel operating panel with multifunction display and input module, safety glass door with inner bullet-proof glass and external anti-splinter screen |
| Installation |
4 feet |
| Connection |
Mains cable with plug (German type) |
| Interfaces |
USB, LAN/Ethernet and Printer Interface |
| Net weight/Gross weight (packed in carton) approx. kg |
83/104 |
| Packed dimensions Width/Height/Depth approx. cm |
66/87/59 |
| Net weight without/with pump approx. kg |
30/46 |
| Gross weight (packed in carton) without/with pump approx. kg |
51/67 |
| Packed dimensions Width/Height/Depth approx. cm |
66/87/59 |
