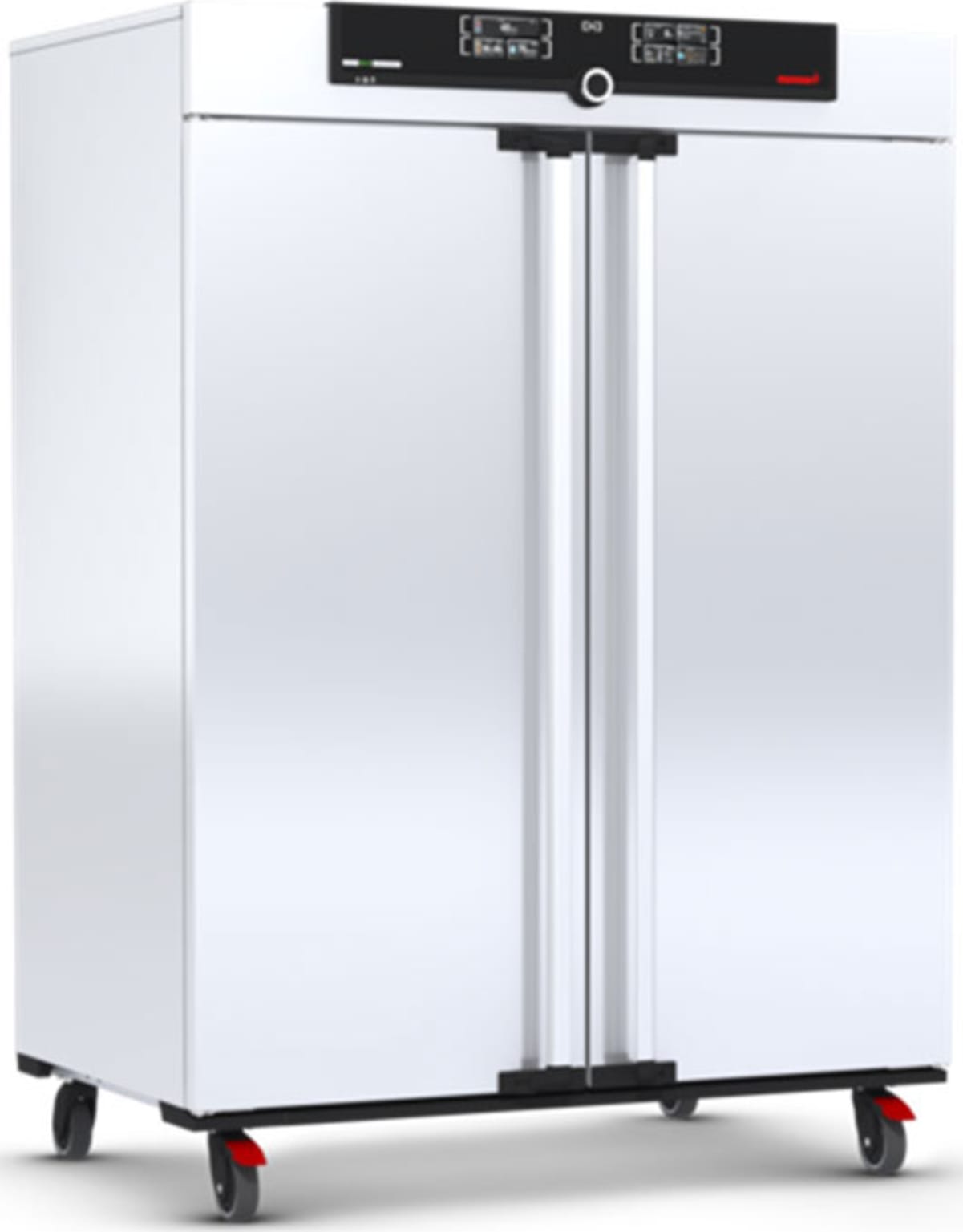

Memmert IPP750eco PLUS Specifications |
Temperature |
Setting temperature range |
0 to +70 °C |
Working temperature range |
with light: +10 to +40 °C |
Working temperature range |
without light: from 0 (at least 20 below ambient temperature) to +70°C |
Setting accuracy temperature |
0.1 °C |
Temperature sensor |
2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error |
Control technology |
ControlCOCKPIT |
TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays. |
Language setting |
German, English, Spanish, French, Polish, Czech, Hungarian |
Timer |
Digital backwards counter with target time setting, adjustable from 1 minute to 99 days |
Function HeatBALANCE |
adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % |
to +50 % |
Function SetpointWAIT |
the process time does not start until the set temperature is reached |
Calibration |
three freely selectable temperature values |
Adjustable parameters |
temperature (Celsius or Fahrenheit), programme time, time zones, summertime/wintertime |
Ventilation |
Convection |
forced ventilation by Peltier fan |
Communication |
Documentation |
programme stored in case of power failure |
Programming |
AtmoCONTROL software on a USB stick for programming, managing and transferring programmes via Ethernet interface or USB port |
Safety |
Temperature control |
over- and undertemperature monitor TWW, protection class 3.3 or adjustable temperature limiter TWB, protection class 2, selectable on display |
AutoSAFETY |
additionally integrated over- and undertemperature protection "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating function is switched off in case of overtemperature, cooling function in case of undertemperature |
Autodiagnostic system |
for fault analysis |
Alarm |
visual and acoustic |
Heating concept |
Peltier |
Heating and cooling performance distribution by individual control of the Peltier elements in the upper and lower row |
Peltier |
energy-saving Peltier heating-/cooling system integrated in the rear (heat pump principle) |
Standard equipment |
Internals |
2 stainless steel grid(s), electropolished |
Works calibration certificate |
for +10°C and +37°C |
Door |
inner glass doors |
Door |
fully insulated stainless steel doors with2-point locking (compression door lock) |
Stainless steel interior |
Dimensions w(A) x h(B) x d(C) |
1040 x 1200 x 600 mm (d less 32 mm for fan - Peltier) |
Volume |
749 l |
Max. number of internals |
14 |
Max. loading of chamber |
200 kg |
Max. loading per internal |
30 kg |
Textured stainless steel casing |
Dimensions w(D) x h(E) x d(F) |
1224 x 1720 x 755 mm (d +56mm door handle) |
Installation |
on lockable castors |
Housing |
rear zinc-plated steel |
Electrical data |
Voltage |
230 V, 50/60 Hz |
Electrical load |
approx. 1200 W |
Voltage |
115 V, 50/60 Hz |
Electrical load |
approx. 1200 W |
Ambient conditions |
Set Up |
The distance between the wall and the rear of the appliance must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm. |
Ambient temperature |
16 ºC to 40 ºC |
Humidity rh |
max. 70 %, non-condensing |
Altitude of installation |
max. 2,000 m above sea level |
Overvoltage category |
II |
Pollution degree |
2 |
Packing/shipping data |
Transport information |
The appliances must be transported upright |
Customs tariff number |
8419 8998 |
Country of origin |
Federal Republic of Germany |
WEEE-Reg.-No. |
DE 66812464 |
Dimensions approx incl. carton |
w x h x d: 1330 x 1910 x 1050 mm |
Net weight |
approx. 230 kg |
Gross weight carton |
approx. 301 kg |
Standard units are safety-approved and bear the test marks |
CE, EAC |
