• 749L volume, stainless steel interior climate chamber
• Temperature range: 0 to +70°C, accuracy: 0.1°C
• Humidity range: 10 – 90% rh, accuracy: 0.5%
• Max loading of chamber: 200 kg (440.9 lbs.)
• Advanced Peltier technology is 90% more energy efficient than condenser cooled chambers

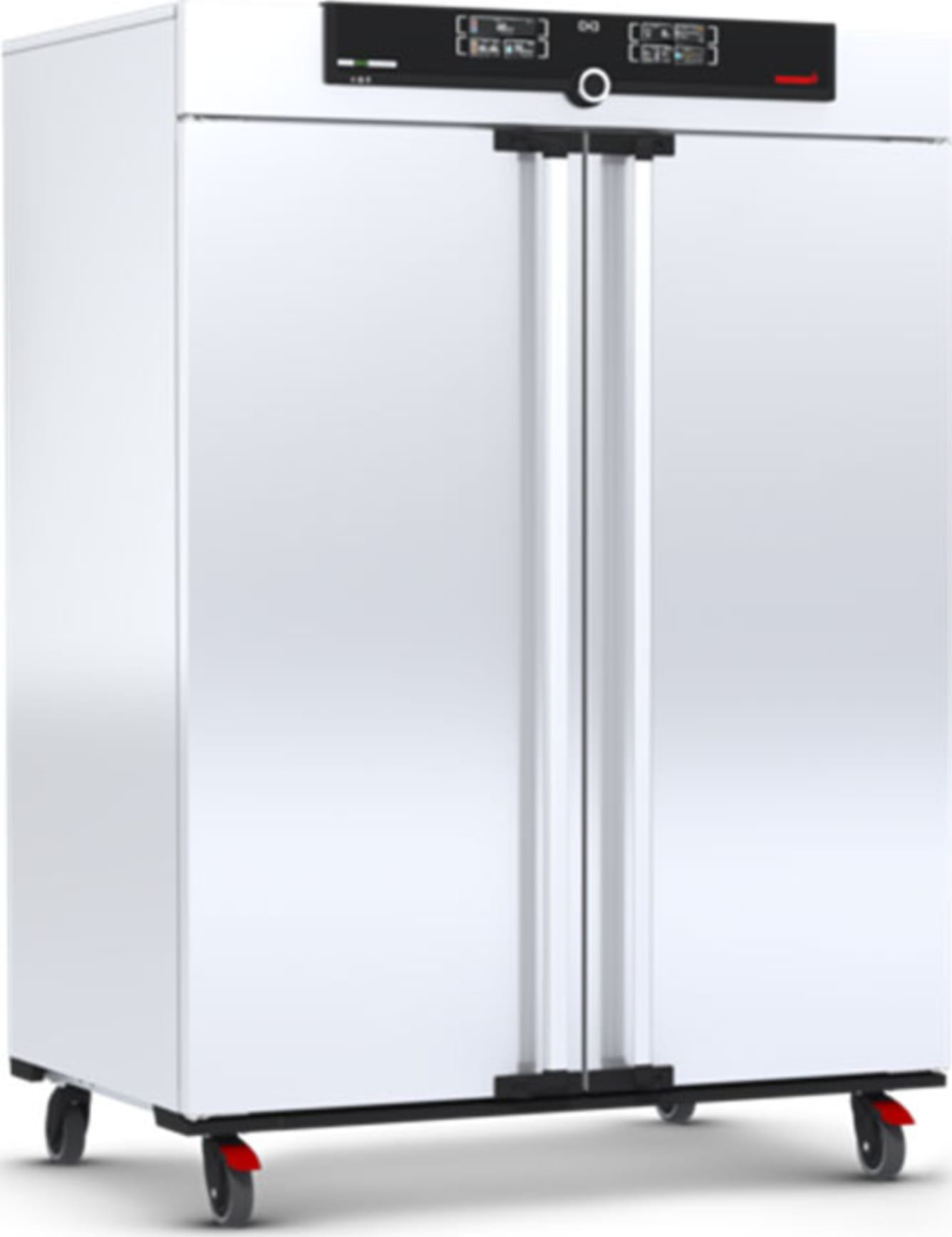

The Memmert HPP750eco constant climate chamber provides maximum energy efficiency in continuous operation. The HPPeco series chambers require low maintenance and have a long service life. The HPP750eco provides the perfect atmosphere for climate and temperature tests. The constant climate chamber is tailored to environmental simulation, material testing, and stability testing in accordance with ICH guidelines. It is a cost-effective, eco-friendly, and reliable solution for critical stability testing.

Equipped with advanced Peltier technology, the constant climate chamber works around 90% more energy efficiently than compressor-cooled devices. Due to the environmentally friendly Peltier elements, the HPPeco has no need for refrigerants and requires no regular maintenance.

The main part of stability testing is performed at temperatures between +20°C and +30°C – close to the ambient temperature. The impressive cost effectiveness of the HPPeco with advanced Peltier technology can be seen in the graph below:

ControlCOCKPIT:

TwinDISPLAY - adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-color displays

Adjustable Parameters:

Temperature (C or F), relative humidity, program time, time zones, summer/winter

Function HeatBALANCE:

Adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 %

Timer:

Digital backwards counter with target time setting, adjustable from 1 minute to 99 days

Function SetpointWAIT:

The process time does not start until the set temperature is reached

Calibration:

Three freely selectable values each, 2-point calibration for humidity: 20 and 90 % rh

Temperature control:

Over- and under temperature monitor TWW, protection class 3.3 or adjustable temperature limiter TWB, protection class 2, selectable on display

Auto-diagnostic System:

Integral fault diagnostics for temperature and humidity control

AutoSAFETY:

Integrated over- and under temperature protection “ASF”, automatically following the setpoint value at a preset tolerance range, alarm in case of over- or under temperature, heating is switched off in case of overtemperature, the compressor in case of under temperature

Alarm:

Visual and acoustic alarm in case of over-/under temperature and under humidity, open door, and empty water tank

Setting temperature range:

• without light, with humidity: +5 to +70 °C
• with light, with humidity: +5 to +70 °C
• with light, without humidity: 0 to +70 °C
• without light, without humidity: 0 to +70 °C

Working temperature range:

• with light, with or without humidity: 15 to +40 °C
• without light, with humidity: +5 (at least 20 below ambient temperature) to +70 °C
• without light, without humidity: 0 (at least 20 below ambient temperature) to +70 °C

Temperature sensor:

2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value
