Meiji Techno PX Pole Stand - Extra Long Vertical Post, 11.41 inches

Name: Meiji Techno PX Pole Stand - Extra Long Vertical Post, 11.41 inches
Brand: Meiji Techno
SKU: MeijiPX
Price: 355.86 USD
Availability: InStock

0 reviews | Model: Meiji Techno PX

Images (8)

Compare

Meiji Techno America Extended W.D. Plain stand with Black and White plastic stage plate, two stage clips, 290mm vertical Post,100% MADE IN JAPAN

Basic pole type stand
Extra long vertical post, 11.4 inches
Includes "FX" focus block
Does not contain built in light source
Compatible with Meiji stereo models
- EMZ
- EMT
- EMF

View Product Details

List Price: $415.00

In Stock:

View Payment Options

Recommended for you

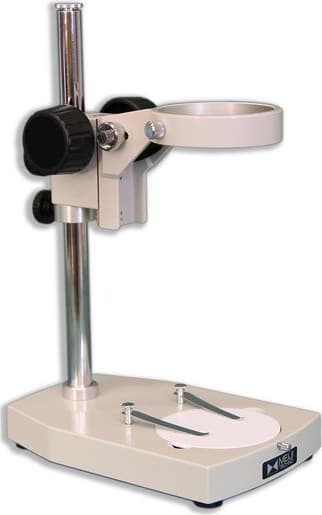

The Meiji Techno PX is a pole style stand, with an extended length vertical post at 11.41 inches. This includes an "FX" style focus block, designed to hold the FL150/50 focusing lens with the FL150/12 single arm fiber optic cable attached to a FL150/115 illuminator. The PX stand comes with a 94.5mm diameter reversible black and white stage plate, two stainless steel stage clips and a 20mm diameter vertical pole. The PX stand’s compact design allows users to maximize their work area, so that operation in limited space becomes possible. This model does not have a built in light source, enabling users to select from a variety of Meiji Techno illumination products, including ring lights, fiber optics, and much more.

Dimensions: 150mm (5.9") wide by 230mm (9.05") deep
Pillar Height: 11.41” height -20mm Stainless Steel pillar with safety collar stop accepts a 4” extension pillar (MA551)
Reversible Black & White Stage Plate: 94.5mm Round (MA568)
Stage Clips: 75mm clip length, 4mm pin, paired (MA593)
Focusing Holder: FX Focus Holder Block included with 84.2 mm diameter opening which accepts 84 mm stereo bodies. Integrated illuminator port designed to hold the FL150/50 focusing lens with the FL150/12 or the FL150/12-60 single arm fiber optic cable attached to a FL150/115 illuminator. Rack and pinion mount allows smooth precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment (FX holder)
Illumination Port: No illumination, requires an external illuminator for lighting
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY

Tech Specs

Test Equipment General Attributes
Unique Features	pole stand, "FX" model focus block, 11.4 inch extra long vertical post
Product Height	9.00 IN
Product Length	19.00 IN
Product Width	15.00 IN
Country of Origin	Japan
Shipping Height	9.00 IN
Shipping Length	19.00 IN
Shipping Width	15.00 IN
