Digital Brightfield/Phase Contrast/Fluorescent Microscope Imaging System with Integrated Digital Camera

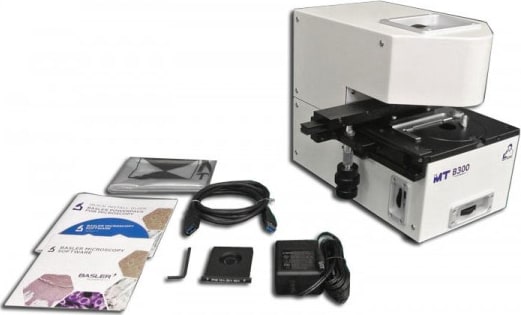

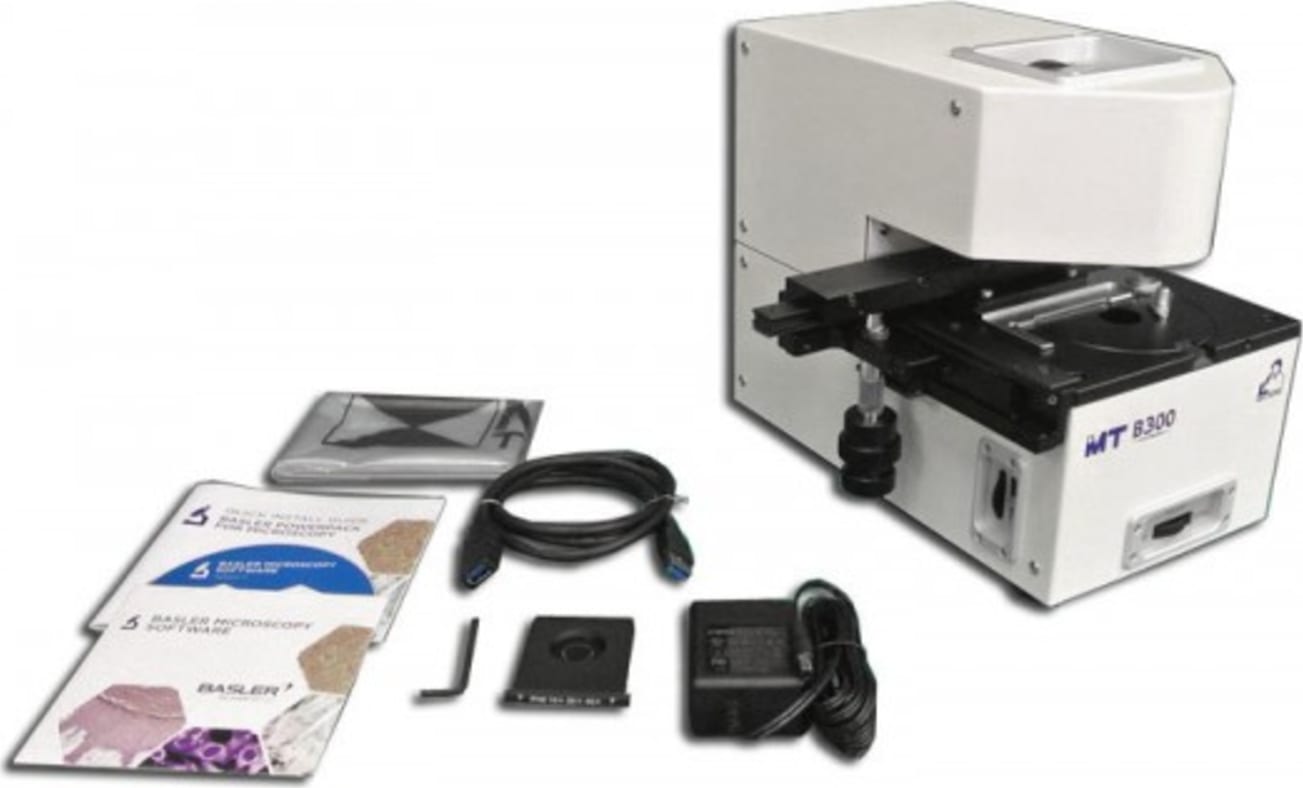

The MT-B300/GFP/FITC Digital Microscope is Meiji Techno’s new Digital Brightfield/ Phase Contrast/ Fluorescence microscope imaging system with a built in USB 3.0, 1.3MP CMOS Digital Camera with Basler Pylon Software which can be easily downloaded. It connects easily to any PC or laptop with a USB 3.0 connection. Its compact footprint design ( 160 mm (W) x 270 mm (D) x 230 mm (H) ) is a perfect fit for any lab that have limited space. Replaceable fixed one objective turret with a front focus control to easily bring a slide into focus. A 3W integrated LED illumination with an auto voltage sensing power supply (AC100V to 240V, 50Hz/ 60Hz). It accommodates one slide with an optional attachable manual mechanical stage. Controls to switch from one modality to the next is conveniently located on the side for easy access.
This Digital microscope is designed for laboratories that do routine volume slide scanning with a particular objective and want to digitize every slide seen for documentation for the patient digital file. It also saves the laboratory or hospital valuable time from sending their slides to third parties inspection labs, which often times are lost or the quality of the slide degrades from temperature or shipping mishaps. This Ultra Compact space saving Digital Microscope, ultimately saving the pathologist or lab technician time in their diagnosis as a in house microscope system. This is a complete digital imaging fluorescence and brightfield/phase contrast microscope system that is equipped with a Basic Blue CHROMA (19002) filter-AT-GFP/FITC Longpass mounted internally: Exciter (EX): AT480/30X, Dichroic (BS): AT505DC, Emitter (EM): AT5151p.
