Meiji Techno MT9530 - Trinocular Gout Testing Microscope

Name: Meiji Techno MT9530 - Trinocular Gout Testing Microscope
Brand: Meiji Techno
SKU: MeijiMT9530
Price: 5072.11 USD
Availability: InStock

0 reviews | Model: Meiji Techno MT9530

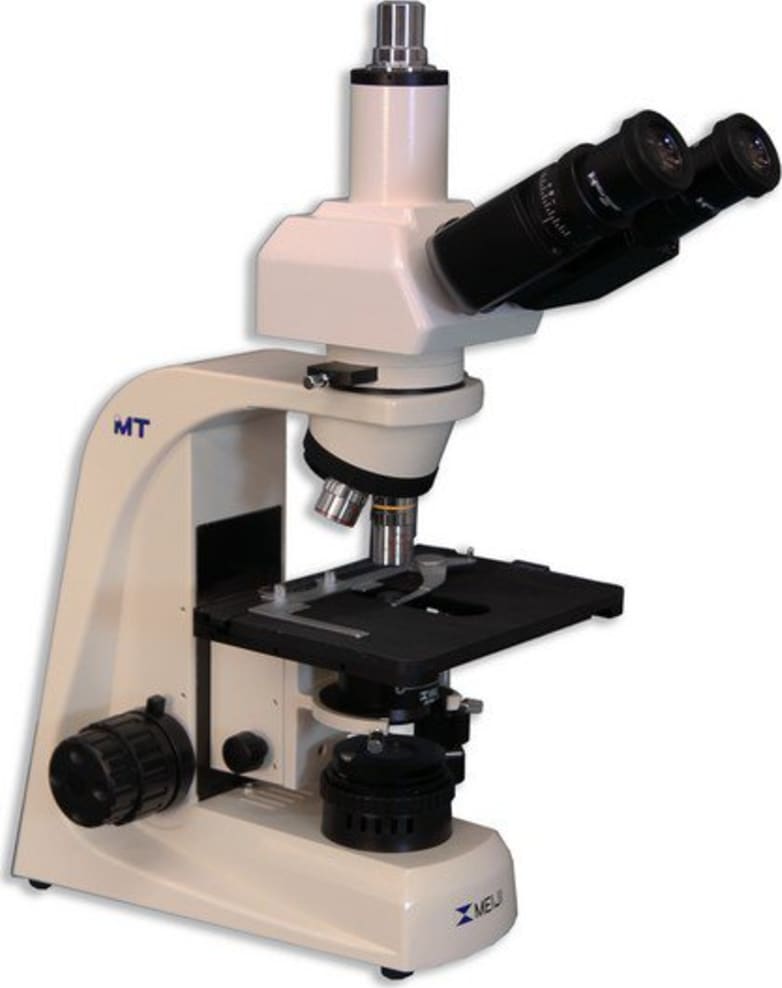

Meiji Techno MT9530 Trinocular Gout Testing Microscope Right Side Angle View

Images (8)

Compare

Trinocular Gout Testing microscope, auto voltage sensing, auto voltage sensing

Gout testing microscope
Trinocular head
6V/30W Halogen illumination
Quintuple nosepiece
Included objectives - Strain Free S.Plan 4x, 10x, 40xS
Included polarizer accessories
- Analyzer
- Full wave plate polarizer
- 29mm filter tray in lamp house assembly

View Product Details

List Price: $5,915.00

Your Price: $5,072.11

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series



Product	Meiji Techno MT9530 Trinocular Gout Testing microscope, auto voltage sensing, auto voltage ...	Meiji Techno MT9520 Binocular Gout Testing microscope, auto voltage sensing, auto voltage ...	Meiji Techno MT9540 Ergonomic Binocular Gout Testing microscope, auto voltage sensing	Meiji Techno MT9550 Ergonomic Trinocular Gout Microscope	Meiji Techno MT9550L Ergonomic Trinocular Gout Microscope LED
Price
In Stock
Body Style	Trinocular	Binocular	Binocular	Trinocular	Trinocular
Illumination Type	Halogen	Halogen	Halogen	Halogen	LED
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Meiji Techno MT9530 Accessories

Choose a Category

for the Meiji Techno MT9530

Meiji Techno MA958 Photo/video attachment with sliding 80/20 beam-splitter

Catalog: MA958

(0)

In Stock!

Add to Cart

Meiji Techno MA954 Strain Free Abbe condenser, N.A.1.25 with iris diaphragm in dove...

Catalog: MA954

(0)

In Stock!

Add to Cart

Meiji Techno MA817 SWH10X widefield high eyepoint E.P. field no.22, tube O.D.30.0mm (each)

Catalog: MA817

(0)

In Stock!

Add to Cart

Meiji Techno MA818 SWH15X widefield high eyepoint E.P. field no.16, tube O.D.30.0mm (each)

Catalog: MA818

(0)

In Stock!

Add to Cart

Meiji Techno MA819 SWF20X widefield high eyepoint E.P. field no.12, tube O.D.30.0mm (each)

Catalog: MA819

(0)

In Stock!

Add to Cart

Meiji Techno MA327 Spare Fuse 3A for Halogen illuminator

Catalog: MA327

(0)

In Stock!

Add to Cart

Meiji Techno MA598 Attachable finger assembly for MA917R, MA917L, MA918R and MA918L

Catalog: MA598

(0)

In Stock!

Add to Cart

Meiji Techno MA676 Attachable clinical specimen holder for MA596R, MA596L, MA917 and MA918

Catalog: MA676

(0)

In Stock!

Add to Cart

Meiji Techno MA711 Dust cover for ML7000, MT7000, MT7100, ML8000, MT8000 and MT8100

Catalog: MA711

(0)

In Stock!

Add to Cart

Meiji Techno MA809/10 Removable AC electrical cord with plug for 115V models (MT series)

Catalog: MA809/10

(0)

In Stock!

Add to Cart

Meiji Techno MA809/20 Removable AC electrical cord with plug for 220V models (MT series)

Catalog: MA809/20

(0)

In Stock!

Add to Cart

Meiji Techno MA906 Eyeshield for MA817 SWH 10X eyepiece (each)

Catalog: MA906

(0)

In Stock!

Add to Cart

Meiji Techno MA326 Spare bulb, 6V 30W Halogen

Catalog: MA326

(0)

In Stock!

Add to Cart

Meiji Techno MA935 Strain Free Plan Semi Apo Pol objective 4X, N.A.0.10, W.D. 25.89mm

Catalog: MA935

(0)

In Stock!

Add to Cart

Meiji Techno MA936 Strain Free Plan Semi Apo Pol objective 10X, N.A.0.25, W.D.7.3mm

Catalog: MA936

(0)

In Stock!

Add to Cart

Meiji Techno MA937 Plan Semi Apo Pol objective 20X, N.A.0.40, W.D.7.29mm

Catalog: MA937

(0)

In Stock!

Add to Cart

Meiji Techno MA938 Strain Free Plan Semi Apo Pol objective 40X, N.A.0.65, W.D.0.50mm

Catalog: MA938

(0)

In Stock!

Add to Cart

Meiji Techno MA939 Strain Free Plan Semi Apo Pol objective 60XS, N.A.0.85, W.D.0.2mm

Catalog: MA939

(0)

In Stock!

Add to Cart

Meiji Techno MA940 Strain Free Plan Semi Apo Pol objective 100XS, N.A.1.25 oil, W.D.0.14mm

Catalog: MA940

(0)

In Stock!

Add to Cart

Meiji Techno MA816 Inclined siedentopf type Trinocular head (30mm I.D. eyetubes)

Catalog: MA816

(0)

In Stock!

Add to Cart

Meiji Techno MA918L Ceramic coated flat-top stage,78mm x 52mm, X-Y movement

Catalog: MA918L

(0)

In Stock!

Add to Cart

Meiji Techno MA918R Ceramic coated flat-top stage,78mm x 52mm, X-Y movement

Catalog: MA918R

(0)

In Stock!

Add to Cart

Meiji Techno MT9530 - Trinocular Gout Testing Microscope

The MT9530 from Meiji Techno is a specialized trinocular microscope. This product has been designed and configured for the identification of crystals contained in bodily fluids, specific to testing done for gout. The MT9530 provides transmitted illumination through a 6V/30W Halogen lamp, and also includes several components for polarization – analyzer, full wave plate polarizer, and a 29mm filter tray in lamp house assembly.

This microscope contains a ball bearing mounted, quintuple nosepiece with the following objectives - Strain Free S.Plan 4x, 10x, 40xS. It can also be customized by the user with Meiji Techno’s wide variety of optional S. Planachromat Polarizing Infinity Corrected objectives.

For a full list of magnifications and included parts, please see the tab labeled “What’s In The Box”.

MT9530: Trinocular Gout Testing Microscope for the identification of crystals present in body fluids. Transmitted 6V 30W Koehler Halogen illuminator with strain free condenser and strain free ∞ Infinity Corrected objectives. Intermediate tube with built in analyzer and compensator slot and rotatable polarizer with full wave plate.

MA8165: Trinocular head - Siedentopf type, I.P. adjustment 53mm to 75mm, graduated diopter on left eye tube (30.0 mm I.D. eyetube) Inclined at 30 degrees Inverted Image. Sliding 80/20 sliding beamsplitter when engaged for photo work, 80% of the image is directed to the phototube and 20% to the eyetubess

MA817 (x 2): SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm

MA906 (x 2): Rubber Eyeshield for MA817, SWH10X eyepiece (each)

MA935: Strain free Plan objective 4X/N.A.0.10, W.D. 25.89mm, ∞ Infinity Corrected

MA936: Strain free Plan objective 10X/N.A.0.25, W.D. 7.3mm, ∞ Infinity Corrected

MA938: Strain free Plan objective 40XS/N.A.0.65, W.D. 0.72mm, ∞ Infinity Corrected

MA954: Strain free Abbe condenser, N.A. 1.25 with iris diaphragm and dovetail mount

MA918R: Ceramic coated flat-top stage with rounded corners , 190mm x 140mm with 80mm x 52mm X-Y movement and low positioned right hand ergonomic drop-down coaxial controls (Included in Models MT9520, MT9530, MT9540, MT9550)

Focusing Adjustment: Low positioned controls allows the operator to work with their forearms relaxed on the working surface so ergonomically placed controls are within easy reach, range of travel:23mm, rotation of fine focus: 0.2mm per revolution. Coaxial coarse and fine focusing controls with graduation reading 2 microns per division. Incorporates tension adjustment and safety Auto-focus stage stop lever

MA598: Attachable finger assembly for MA918R and MA918L

MA1043: Intermediate tube with built in analyzer and compensator slot (Requires MA915/PT#2 -43mm polarizing filter if used with MT4000 & MT5000 Series)(Factory Installed)

MA1044: Rotatable polarizer with full wave plate (built into stand available as a replacement part only) (Factory Installed)

MA326: Bulb, 6V 30W Halogen (Factory Installed)

MA327: Fuse 3Amp (Factory Installed)

MA809/10: Removable AC Electric cord with plug for 115V models (Included in all 115V models) or

MA809/20: Removable AC Electric cord with plug for 220V models (Included in all 220V models)

MA711: Dust cover for MT9500 Series

Manual: Meiji Techno America MT9500 Manual

For a full list of magnifications and included parts, please see the tab labeled “What’s In The Box”.

The following is a brief overview of the MT9500 series of gout testing microscopes from Meiji Techno.

Model	Head	Eyepieces	Objectives	Stage	Condenser	Illumination
MT9520	Binocular	SWH10x FN22	Strain Free S.Plan 4x, 10x, 40xS	Fixed flat-top	Abbe NA 1.25 with iris in dovetail mount	Transmitted light Koehler Illuminator 6V 30W halogen auto voltage sensing with intensity control
MT9530	Trinocular
MT9540	Ergonomic

Tech Specs

Microscopes/Benchtop and Portable Microscopes Template
Type (Microscopes)	Compound
Body Style	Trinocular
Illumination Type	Halogen
Diopter Adjustment	Yes
Eyepiece Magnification	10
Eyepiece Inclination	Yes
Interpupillary Distance Max	75 MM
Interpupillary Distance Min	53 MM
Test Equipment General Attributes
Unique Features	Binocular head
Country of Origin	Japan
