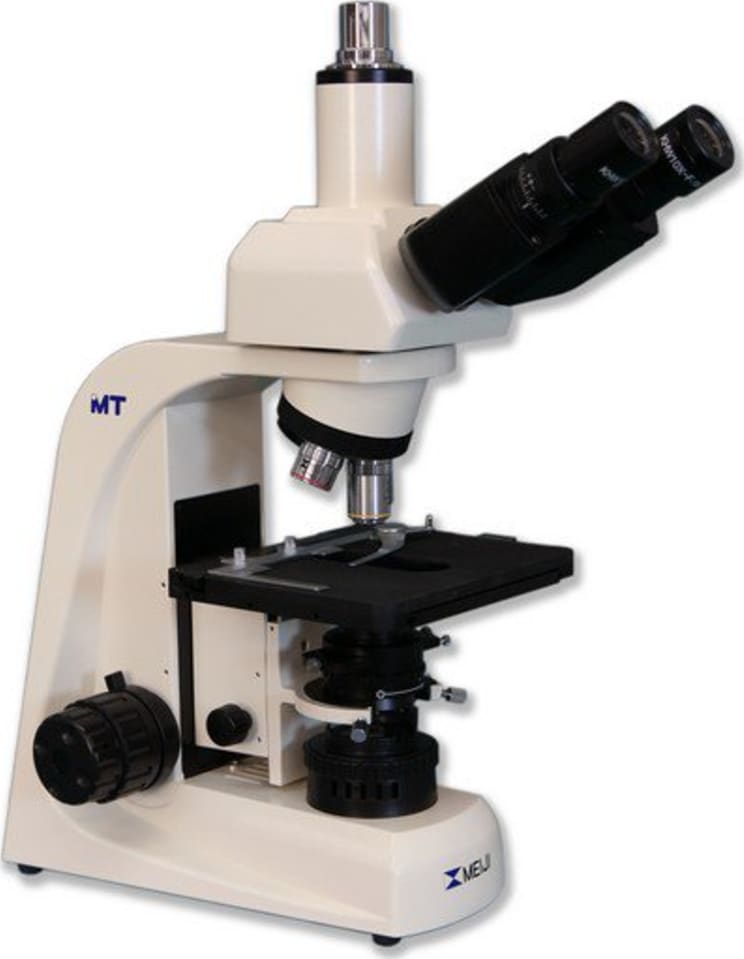

MT6530: The MT6530 Newly Designed Trinocular PCM (Phase Contrast) Compound Microscopes for Asbestos fiber counting applications. Meiji manufactures these microscopes pursuant to NIOSH 7400 and OSHA ID 160 Reference methods. Built in Koehler Transmitted illuminator with 6V 30W Halogen lamp and variable intensity control. Equipped with Phase contrast ∞ Infinity Corrected objectives, GIF filter, Walton & Beckett reticle and a centering telescope and stage micrometer. This model is 100% Made in Japan
MA816/05: Trinocular head-Siedentopf type Interpupillary adjustment 53mm to 75mm, graduated diopter on left eyetube, ( 23.2mm I.D. eyetube). Inclined at 30° degrees, Inverted image
MA407: KHW10X compensating eyepiece, Field No. 20, Tube O.D. 23.2MM (each)
MA407/W: KHW10X Focusing eyepiece with Walton & Beckett reticle, Field No 20 (Eyetube O.D. 23.2mm)
MA254/05: Walton & Beckett reticle, 21mm diameter
MA831: Plan Semi Apochromat Objective 4X, N.A. 0.10, W.D. 17.8mm, F.N. 24, ∞ Infinity Corrected
MA832: Plan Semi Apochromat Ojective 10X, N.A. 0.25, W.D. 10.67mm, F.N. 24,∞ Infinity Corrected
MA841: Plan Semi Apochromat positive Phase Contrast objective 40X, N.A. 0.65, W.D. 0.5mm, F.N. 24,∞ Infinity Corrected
Focusing Mount: Coaxial coarse and fine focus adjustment with graduation, reading 2 microns per division with tension adjustment and safety auto focus stop.
MA910/10: Abbe condenser N.A. 1.25 with iris diaphragm with centerable phase annuli for 20x & 40X phase objectives, dovetail mount
MA458: Focusing centering Telescope, 23.2mm O.D.
MA861/05: Green interference filter 546mm, 44.0mm diameter, unmounted
MA856/05: Blue clear filter, 44.0mm diameter, unmounted
MA917R: Ceramic coated flat-top stage, 170mm X 140mm, with 80mm X 52mm X-Y movement, and right hand drop-down coaxial controls (Factory Installed)
MA598: Attachable finger assembly for MA917R and MA917L
MA285: Stage Micrometer-1mm divided into 100 units, 0.01mm(each división= 0.01mm)
MA326: Bulb 6V 30W Halogen lamp (Factory Installed)
MA809/10: Removable AC Electric cord with plug for 115V models or
MA809/20: Removable AC Electric cord with plug for 220V models
MA701: Dust Cover for MT6500
Manual: Meiji Techno America ML6500 Manual
Warranty: Limited Lifetime Warranty Card
Product Information:
Manufactured: 100% MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
Customer Support: 1-(800) 832-0060 (U.S.A Based)
