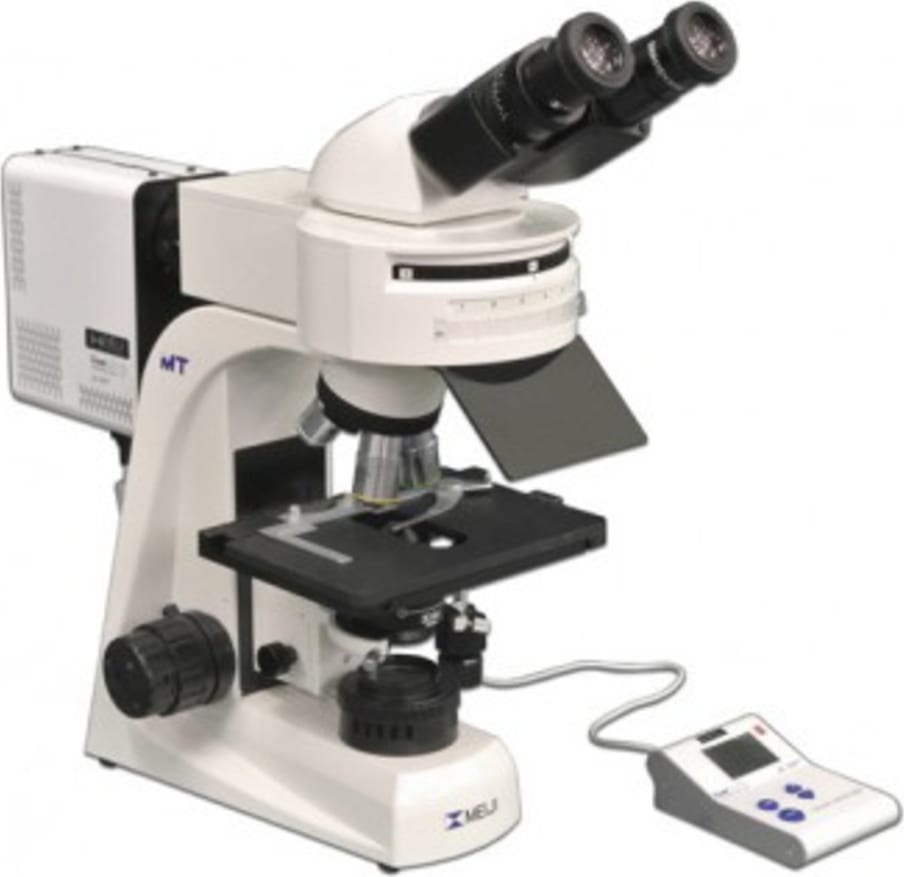

MT6200CL Binocular Microscope with Epi-Fluorescence is an optical biological microscope that uses fluorescence and phosphorescence instead of, or in addition to, reflection and absorption to study properties of organic or inorganic substances. The “fluorescence microscope” refers to any microscope that uses fluorescence to generate an image, whether it is a more simple set up like an epifluorescence microscope, or a more complicated design such as a confocal microscope, which uses optical sectioning to get better resolution of the fluorescent image. Equipped with Chroma filters and a six position filter holder, there is a slot to add 3 more filter cubes and desired filters for your specific experiment or application. Intensity from a conventional lamp decreases through its life, which means that illumination varies dramatically over time. The lifetime of LED’s far exceeds that of these older lamps, ex. Mercury, Metal Halide, Xenon models and intensity remains broadly constant throughout its life providing a stable, repeatable light source. Some of the many fluorophores excited by the PE-300 Series are FITC, DAPI, Cy3, Auramine, TxRed, mCherry, TRITC, ChR, Hoechst, Cy5, Calcofluor, RFP to name a few.

PE-300L/LEDMT is a LED fluorescence illumination kit, configured for fluorophores such as DAPI, FITC, TRITC & Cy5, instant on/off with the ability to optimize intensity & minimize sample damage via the simple desktop Control Pod with a manual control pod and power supply. (Included in MT6200CL & MT6200ECL & MT6300CL & MT6300ECL models)

The MT6200CL Series employs Meiji Techno’s all new ICOS™ (Infinity Corrected Optical System) making the study of mounted specimens fast and easy while delivering an excellent cost-to- performance ratio. The MT6200CL Series microscope are configured for Brightfield and Epi-flourescence but can also be outfitted with optional phase contrast, polarized light and darkfield components. System modularity makes purchase and operation.

The award-winning PE-300 Series is a range of LED Illumination Systems for Fluorescence Microscopy, Optogenetics, Electrophysiology and high-speed microscopy applications. It comprises 3 systems providing a solution that covers a range of everyday fluorescence microscopy; from the simple PE-300L/LEDTC or PE-300L/LEDMT (lite versions) through the classic PE-300W/LEDMT or PE-300W/LEDTC (white versions). The PE-300 Series offers:

• High intensity at your microscope sample plane - view and image your samples brighter than ever
• Adjustment of output in 1% steps on all systems - giving precise control whether imaging quickly or for a gentler approach to care for your samples.
• Spectral coverage for all your everyday fluorophores: DAPI, CFP, Aqua, GFP, FITC, Tritc, TxRed, Cy5 and alike.

Features:

• Computer Aided Design Frame and Optics
• Ergonomically positioned controls
• Comfortable Siedentopf Viewing Heads
• Quintuple turret DIN nosepiece
• Six Position Fluorescence Module with three Chroma Fluorochromes included
• CHROMA - 19002 - AT-GFP/FITC - Basic Blue
• CHROMA - 19004 - AT-TRITC/Cy3 - Basic Green
• CHROMA - CHROMA - 3900 - AT-DAPI/Hoechst/AlexaFluor - Basic UV
• MA898 Empty filter cube available as an option to fit in the additional 3 empty filter cube spots for specialized Chroma filters
• Newly Designed Semi Apo Plan Fluorescence Objectives
• Brightfield, Darkfield, Phase Contrast, Polarized Light and Epi-Fluorescence modes
• LED Transmitted Koehler + CoolLed Epi Module
• LED products are more sustainable and energy efficient than conventional illuminators
• Mercury-free
• Energy Efficient: 80% less power
• Long lifetime (25,000 operating hours)
• No Bulb replacements
• Reduced risk of eye damage
• Quiet operation
• No special disposal regulations or issues
• Optional motorized stage and focus drive
• Optional Ergonomic Binocular or Trinocular Viewing Head available very affordable for colleges, universities, researchers and clinics.
