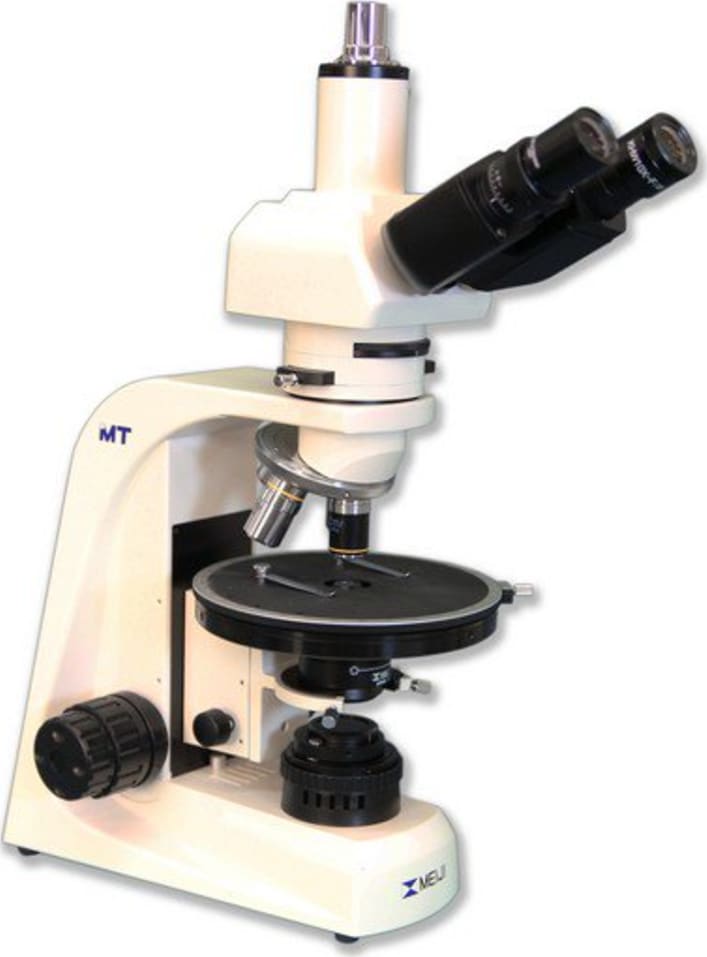

Meiji Techno MT6130 - Halogen Trinocular Asbestos PLM Microscope

Name: Meiji Techno MT6130 - Halogen Trinocular Asbestos PLM Microscope
Brand: Meiji Techno
SKU: MeijiMT6130
Price: 6047.75 USD
Availability: InStock

0 reviews | Model: Meiji Techno MT6130

Images (8)

Compare

Binocular asbestos PLM scope,Strain Free Plain10X,20X,40X,10X dispersion

Specialized for Asbestos examination
Bulk fiber identification – NIOSH 9002
Trinocular body
6V/30W Koehler Halogen Illuminator
Strain free condenser
Quadruple nosepiece, reverse facing
- One fixed, three centerable objective apertures
Included objectives
- DIN Strain Free Plan 10x, 20x, & 40x, & 10x Dispersion Staining
Included eyepieces
- KHW10XCP Focusing with guide pin and crossline reticle
- KHW 10X, F.N. 20 O.D. 23.2mm

View Product Details

List Price: $7,115.00

Your Price: $6,047.75

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series



Product	Meiji Techno MT6130 Binocular asbestos PLM scope,Strain Free Plain10X,20X,40X,10X dispersi ...	Meiji Techno MT6120 Binocular asbestos PLM scope with Strain free Plan Achromat 10X,20X,40 ...	Meiji Techno MT6520 Binocular PCM scopes for Asbestos fiber counting,UPlan Achromat 4X,10X ...	Meiji Techno MT6530 Trinocular PCM scopes for Asbestos fiber counting,UPlan Achromat 4X,10 ...	Meiji Techno MT6820 Binocular Asbestos scope,Strain Free Plan Achromat 10X,20X,40X and 10X ...	Meiji Techno MT6830 Trinocular Asbestos scope, Strain Free Plan Achromat 10X,20X,40X and 1 ...
Price
In Stock
Type (Microscopes)	Compound	Compound	Compound	Compound	Compound	Compound
Body Style	Trinocular	Binocular	Binocular	Trinocular	Binocular	Trinocular
Illumination Type	Halogen	Halogen	Halogen	Halogen	Halogen	Halogen
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Meiji Techno MT6130 Accessories

Choose a Category

for the Meiji Techno MT6130

Meiji Techno MA954/05 Strain Free Abbe condenser N.A.1.25

Catalog: MA954/05

(0)

In Stock!

Add to Cart

Meiji Techno MA407 KHW10X compensating E.P., field no. 20, tube O.D. 23.2mm (each)

Catalog: MA407

(0)

In Stock!

Add to Cart

Meiji Techno MA407/05 DIN KHW10X, compensating focusing E.P., field no.20(ea)(tube...

Catalog: MA407/05

(0)

In Stock!

Add to Cart

Meiji Techno MA407CP KHW10X focusing eyepiece with crossline and guide pin (each)

Catalog: MA407CP

(0)

In Stock!

Add to Cart

Meiji Techno MA289/05 Blue clear filter, 29.8mm diameter, unmounted, for transmitted light

Catalog: MA289/05

(0)

In Stock!

Add to Cart

Meiji Techno MA471/05 Analyzer for MT9000 series (26mm x 6mm x 80mm)

Catalog: MA471/05

(0)

In Stock!

Add to Cart

Meiji Techno MA200 Eyeshields for MA406, MA407 (each)

Catalog: MA200

(0)

In Stock!

Add to Cart

Meiji Techno MA327 Spare Fuse 3A for Halogen illuminator

Catalog: MA327

(0)

In Stock!

Add to Cart

Meiji Techno MA458 Centering telescope, 23,2mm O.D. (incl. in MT4210L,4310L,4210H,4310H)

Catalog: MA458

(0)

In Stock!

Add to Cart

Meiji Techno MA470/05 First order red compensating plate for MT9000 series (20mm x 6mm...

Catalog: MA470/05

(0)

In Stock!

Add to Cart

Meiji Techno MA477/05 Bertrand lens for MT9000 series (20mm x 6mm x 80mm)

Catalog: MA477/05

(0)

In Stock!

Add to Cart

Meiji Techno MA701 Dust cover for MT4000 and MT5000 series

Catalog: MA701

(0)

In Stock!

Add to Cart

Meiji Techno MA809/10 Removable AC electrical cord with plug for 115V models (MT series)

Catalog: MA809/10

(0)

In Stock!

Add to Cart

Meiji Techno MA809/20 Removable AC electrical cord with plug for 220V models (MT series)

Catalog: MA809/20

(0)

In Stock!

Add to Cart

Meiji Techno MA905 Interference Color Chart ( Included in MT9000, MT9900, ML9000 Series)

Catalog: MA905

(0)

In Stock!

Add to Cart

Meiji Techno MA326 Spare bulb, 6V 30W Halogen

Catalog: MA326

(0)

In Stock!

Add to Cart

Meiji Techno MA936 Strain Free Plan Semi Apo Pol objective 10X, N.A.0.25, W.D.7.3mm

Catalog: MA936

(0)

In Stock!

Add to Cart

Meiji Techno MA936D Strain free Plan objective 10X,N.A.0.25, W.D.10.67mm

Catalog: MA936D

(0)

In Stock!

Add to Cart

Meiji Techno MA937 Plan Semi Apo Pol objective 20X, N.A.0.40, W.D.7.29mm

Catalog: MA937

(0)

In Stock!

Add to Cart

Meiji Techno MA937D Plan objective 20X/N.A.0.40, W.D. 5.0mm

Catalog: MA937D

(0)

In Stock!

Add to Cart

Meiji Techno MA938 Strain Free Plan Semi Apo Pol objective 40X, N.A.0.65, W.D.0.50mm

Catalog: MA938

(0)

In Stock!

Add to Cart

Meiji Techno MA938D Plan objective 40XS/N.A.0.65, W.D.0.50mm

Catalog: MA938D

(0)

In Stock!

Add to Cart

Meiji Techno MA939 Strain Free Plan Semi Apo Pol objective 60XS, N.A.0.85, W.D.0.2mm

Catalog: MA939

(0)

In Stock!

Add to Cart

Meiji Techno MA940 Strain Free Plan Semi Apo Pol objective 100XS, N.A.1.25 oil, W.D.0.14mm

Catalog: MA940

(0)

In Stock!

Add to Cart

Meiji Techno MA953 Trinocular head Siedentopf type, inclined at 30 degrees

Catalog: MA953

(0)

In Stock!

Add to Cart

Meiji Techno MA299 Attachable mechanical stage for ML9000, ML-POL/RM-POL, MT9000...

Catalog: MA299

(0)

In Stock!

Add to Cart

Meiji Techno MA946 Stage clips (2 pcs)

Catalog: MA946

(0)

In Stock!

Add to Cart

Meiji Techno MT6130 - Halogen Trinocular Asbestos PLM Microscope

The MT6130 from Meiji Techno is a trinocular microscope, specialized for use in the study of asbestos with the NIOSH 9002 method. The MT6130 contains a powerful, 6V/30W Koehler Halogen illuminator, and a quadruple nosepiece with the following objectives - DIN Strain Free Plan 10x, 20x, & 40x, & 10x Dispersion Staining.

The MT6130 is also available as a trinocular version, the MT6130.

For a full list of magnifications and included parts, please see the tab labeled “What’s In The Box”.

MT6130: Trinocular PLM Asbestos Microscope for NIOSH 9002 Reference Method. Equipped with a large stable microscope base and limb with graduated coaxial coarse and fine focusing( with safety stop), rack and pinion focusing condenser mount, strain free condenser and strain free objectives with pre-centered transmitted Koehler illuminator with 6V 30W Halogen lamp with variable intensity control

MA953: Trinocular head, 30° inclination. One eye tube slotted for orientation of cross-line focusing eyepiece dual graduated diopter eyetubes with interpupillary adjustments of 53mm to 75mm

MA407CP: KHW-10X focusing eyepiece with cross-line and guide pin,(ea) (21mm reticle mount) (Tube O.D. 23.2mm)

MA407: KHW-10X Compensating eyepiece, F.N.20 (each)(Tube O.D. 23.2mm)

Nosepiece: Reverse Facing Quadruple ball-bearing with one fixed and three centerable objective apertures

MA936: Strain free Plan objective 10X/N.A. 0.25, W.D. 7.3mm

MA936D: Strain free Plan objective 10X/N.A. 0.25, W.D. 10.6mm (Dispersion Staining Objective)

MA937: Strain free Plan objective 20X/N.A. 0.40, W.D. 7.29mm

MA938: Strain free Plan objective 40XS/N.A. 0.40, W.D. 0.72mm

MA954/05: Strain free Abbe condenser, N.A. 1.25, includes sliding mount with annulus for 10X, 20X, 40X phase or dispersion staining objectives, iris diaphragm, dovetail mount

MA458: Focusing Centering Telescope, 23.2mm O.D.

MA946: Stainless Steel Stage Clips ( 2 pcs.)

MA470/05: First Order Red compensating plate, 530nm for MT6100 (20mm X 6mm X 80mm)

MA471/05: Analyzer (Sliding type for MT6100 Series (26mm X 6mm X 80mm)

MA477/05: Bertrand lens (Sliding type) for MT6100 Series (Built in to frame)

Stage: Rotatable stage with Vernier graduation 360° with Vernier, reading to 1°, 150mm diameter with stainless steel stage clips (Factory Installed)

Focusing Adjustment: Coaxial coarse and fine focusing controls with graduation reading 2 microns power division. Incorporates tension adjustment and safety Auto-focus stage stop lever

MA289/05: Blue clear daylight filter, 29.8mm diameter, unmounted

MA326: Bulb 6V 30W Halogen (Factory Installed)

MA327: Fuse 3 Amp (Factory Installed)

MA809/10: Removable AC Electric cord with plug for 115V models (Included in all 115V models)

MA809/20: Removable AC Electric cord with plug for 220V models (Included in all 220V models)

Polarizer: Swing in-out click/clamp mount, fully rotatable 360° with click stop at 0°and 90°

MA712: Dust cover for MT6100 Series

Manual: Meiji Techno America MT6100 Manual

Warranty: Limited Lifetime Warranty Card

For a full list of magnifications and included parts, please see the tab labeled “What’s In The Box”.

The following is a brief overview of the MT6100 series of asbestos microscopes from Meiji Techno.

Model	Head	Illumination	Eyepieces	Objectives	Stage	Condenser
MT6120	Binocular	Transmitted light Koehler Illuminator 6V 30W halogen auto voltage sensing with intensity control	(1) KHW10XCP Focusing with guide pin and crossline reticle, (1) KHW 10X, F.N. 20 O.D. 23.2mm	DIN Strain Free Plan 10x, 20x, & 40x, & 10x Dispersion Staining	Rotatable with 360 degree graduations and vernier	Strain Free Abbe N.A. 1.25 w/ slider for dispersion staining objectives
MT6130	Trinocular

Microscopes/Benchtop and Portable Microscopes Template
Type (Microscopes)	Compound
Body Style	Trinocular
Illumination Type	Halogen
Diopter Adjustment	Yes
Eyepiece Inclination	Yes
Eyepiece Inclination Degress	30 Degrees
Objective Lens Zoom Min	10 x
Objective Lens Zoom Max	40 x
Rotating Head	Yes
Stand Type	Pole
Camera Included	Yes
Test Equipment General Attributes
Unique Features	Strain Free Condenser Dispersion Staining Objective
Warranty Details	MEIJI TECHNO will repair or replace, at its option, any instrument which under normal conditions of use and service proves to be defective in material or workmanship. No charge will be made for labor or parts with respect to defects covered by this warranty, provided that the work is done by MEIJI TECHNO. This warranty does not cover expenses incurred in the removal or reinstallation of any instrument or instruments, whether or not proven defective. Replacement or repairs furnished under this warranty are subject to the same terms and conditions of the original warranty.
Country of Origin	Japan
