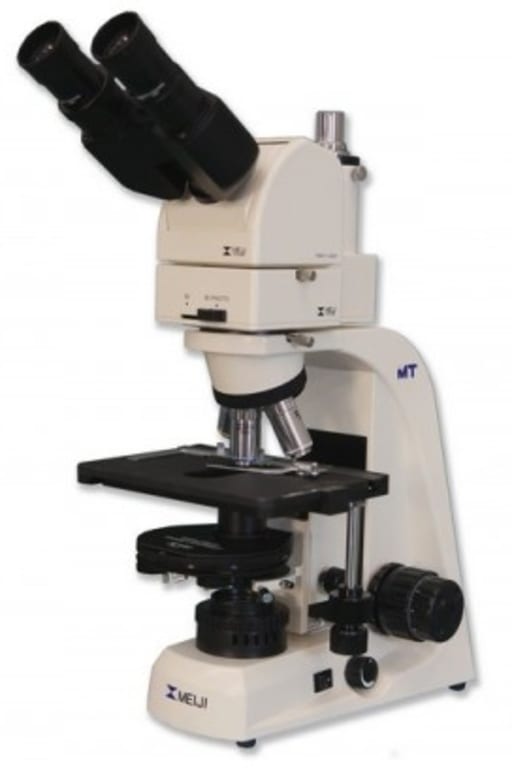

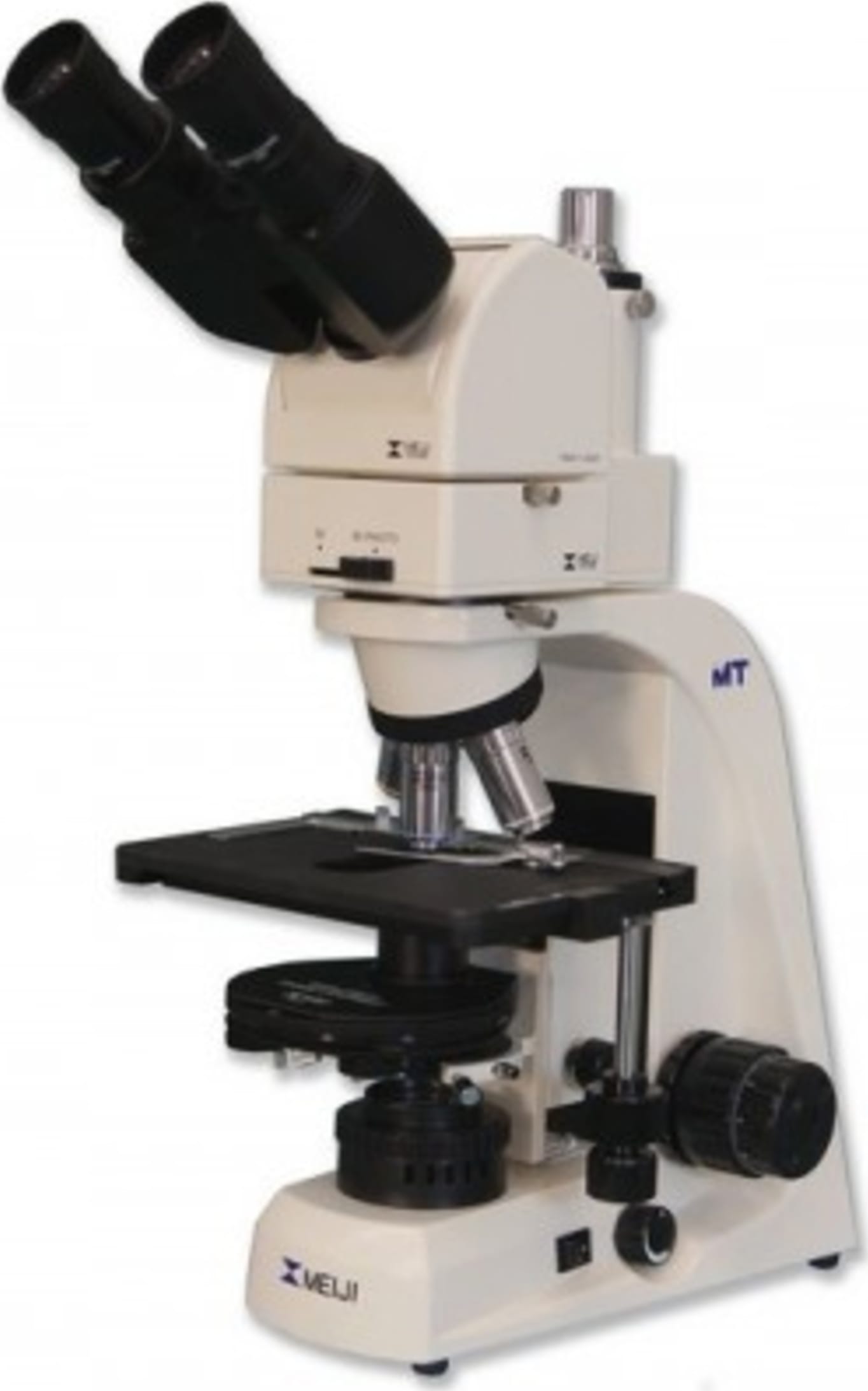

Advanced Live Blood Cell LED Ergonomic Trinocular Brightfield/Phase Contrast Biological Microscope
The MT5310EL/LBC Series is Meiji Techno America’s Advanced Research Grade LED Upright Ergonomic Trinocular Biological Brightfield/Phase Contrast Compound LED Microscope system. Meiji Techno's laboratory grade upright microscope line is the new and cost-effective MT5310EL/LBC Series Advanced Biological Microscopes. The MT5310EL/LBC Series employs all new and improved U. Plan Phase optics. Smooth operating ball bearing quintuple nosepiece provides effortless objective changes. Meiji Techno's ICOS™ (Infinity Corrected Optical System) makes the study of mounted specimens fast and easy while delivering an excellent cost-to-performance ratio.
Ergonomically designed, precisely manufactured in Japan and simple to use stage and coarse and fine controls, to meet the demands of researchers and clinical laboratory specialists. Adjustable, smooth operating, field iris in a new and improved enclosed sealed hardshell plastic design. Its ergonomic tilting binocular head can be adjusted vertically from 10 to 50 degrees. Meiji Techno has reviewed all aspects of microscope usability to develop the MT5310EL/LBC microscope, which provides functionality with operational ease. It has a larger 30.0 mm I.D. eyetube and a larger stage than the MT4000/LBC Series. Viewing high quality images, sample changing and photomicroscopy are all conducted with ergonomics in mind. High Intensity LED illumination shows true to life color quality.
The MT5310EL/LBC is designed for Brightfield/Phase Contrast observation and rugged quality as you would expect from a Japanese made microscope. Various imaging techniques are available with different models in this series.
The Ph1 condenser annulus , which contains the smallest aperture, is designed to be used with the lower power 10X and 20X Phase objective. Intermediate magnification objective 40X Phase utilize the Ph 2 annulus, while the highest power and N.A. 100X objective require the Ph 3 annulus, which requires the largest phase annulus.
The Ph1 position in the Phase Condenser Turret facilitates Objectives Phase 10X and Phase 20X
The Ph2 position in the Phase Condenser Turret facilitates Objectives Phase 40X
The Ph3 position in the Phase Condenser Turret facilitates Objectives Phase 100X
The MT5300/LBC Series features include:
- Computer Aided Design
- Ergonomically positioned controls
- Comfortable Siedentopf viewing heads
- Your choice and preference in illumination, halogen or LED
- Brightfield, darkfield and phase contrast observation modes
- Available with motorized stage and focus drive
- Optional Ergonomic Binocular Viewing Head Available
