Meiji Techno America’s Veterinary Series is our Preconfigured Compound Biological Series catered to the Veterinary market. A Veterinary series is a useful tool for any clinical practice. Equipped with newly upgraded U. Plan Brightfield Objectives Infinity Corrected, Brightfield 4X, 10X, 20X, 40X, 100X oil objectives. Many Veterinary clinics have in house laboratory microscopes. If you are a starting Veterinarian and in search of the most practical laboratory microscope or want to modernize the microscope in your in-house with a wider field of view and smooth operating mechanical stage with a full suite of Infinity objectives which includes U. Planachromat 4X, 10X, 20X, 40X, S100X oil. Equipped with an Abbe Condenser that has a Numerical Aperture of 1.25, coarse and fine focus knobs with a stage lock and tension adjustment ring and a transmitted Halogen light base that is auto-voltage sensing which will work in every country in the world.

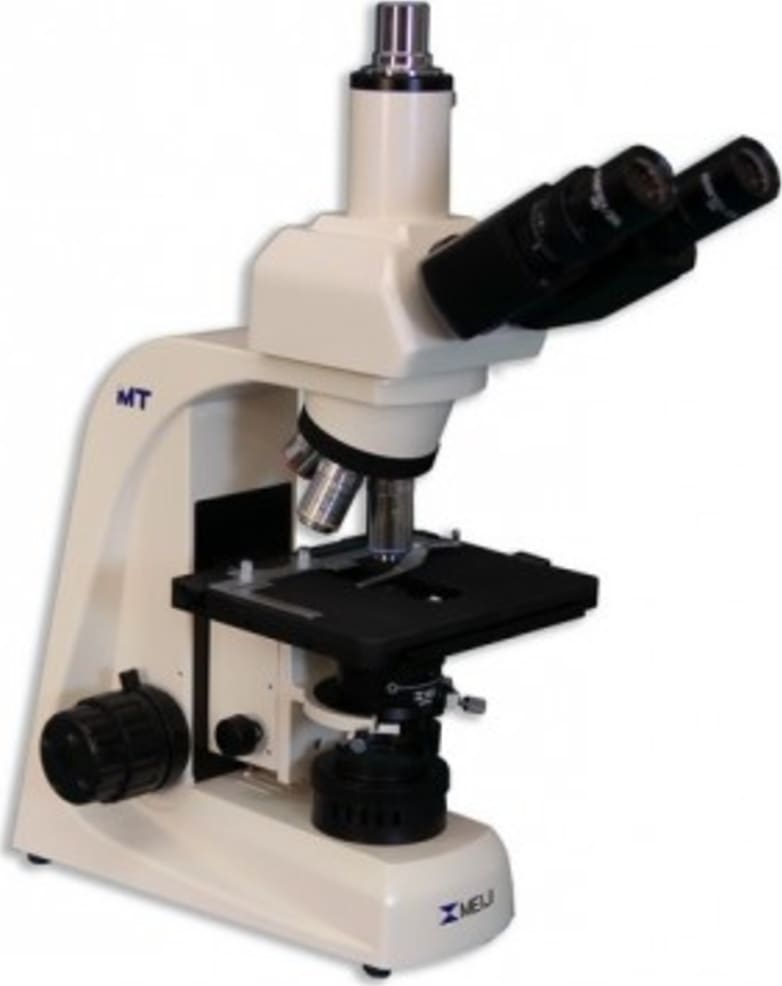

The MT4000 Veterinary Microscopes features include:

• Compact Space Saving Footprint design with ergonomics in mind
• Infinity Corrected Optical System (ICOS™) with all newly designed Planachromatic optics
• Comfortable Siedentopf-type Binocular and Trinocular Viewing heads
• Optional Ergonomic tilting binocular head- Adjustable vertically from 10°to 50° degrees
• Ceramic Coated Stage with Ergonomically Placed Low Position Drop down Control
• Parfocalled Microscope Brightfield U. Plan Infinity Corrected Objectives 4X, ,10X, 20X, 40X, 100X oil
• Tension adjustment control with Coaxial knobs
• Low Positioned Ergonomic Coaxial Fine and Coarse Focus Control
• Smooth Operating Ergonomic Quintuple Nosepiece
• Brightfield and Phase Contrast Observation modes available
• Super Bright LED Koehler illumination, lambertian design ( LED Models)
• Integrated 30-Watt Halogen Transmitted illumination System ( Halogen Models
• Abbe and Zernike Phase Contrast Condensers available
• Integrated Automatic Voltage Sensing Power Supply with localized power cord
• Rear Cord Wrap for easy storage
• Wide Range of Filters and Accessories

VIEWING HEADS

Model MA815/05 is the Siedentopf-type binocular head and Model MA816/05 is the trinocular head for camera integration. Each head has the eyetubes inclined at 30 ° with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm - 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work.The optional MA957/05, Ergonomic Binocular Viewing Head, has the inclination adjustable from 10 to 50 degrees to fit users of different heights. The Ergonomic Trinocular model comes with the MA958, photo/video attachment with sliding 80/20 beam-splitter (Included in MT4300ED).

EYEPIECES

10X Widefield High Eyepoint eyepieces F.N.20 are standard, and 15X and 20X eyepieces are available as an option. A Widefield High Eyepoint 10X focusable eyepiece that accepts 21mm reticules is also available.

OBJECTIVE CHANGER

Quintuple nosepiece provides effortless objective changes with smooth-operating, ball bearing mounted.

OBJECTIVES

Meiji Techno America offers an assortment of Planachromat Infinity Corrected (ICOS) objectives for Brightfield, Darkfield and Phase Contrast observation modes.

STAGE

Ceramic coated standard right-handed or optional left-handed controls, flat top stage 171mm x 115mm and travels 78mm(X) x 52mm(Y). Ergonomically positioned coaxial drop down controls. Available with motorized focus and stage controls.

CONDENSER

New design centerable Abbe 1.25 N.A. Condenser with built-in iris diaphragm in dovetail mount.

ILLUMINATION

Powerful white LED illumination provides enhanced image quality and brightness for the observation of specimens and photomicroscopy.

PHOTOMICROGRAPHY

Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.
