Meiji Techno's university grade upright microscope line is a biological research microscopes the new and cost-effective MT4000 Series Biological Microscopes. The MT4000 Series employs all new and improved Plan optics. Meiji Techno's ICOS™ (Infinity Corrected Optical System) makes the study of mounted specimens fast and easy while delivering an excellent cost-to-performance ratio.
For a full list of magnifications and included parts, please see the tab labeled "What's In The Box".
The MT4300D Microscopes features include:
- Compact Space Saving Footprint design with ergonomics in mind
- Infinity Corrected Optical System (ICOS™) with all newly designed optics
- Comfortable Siedentopf-type Binocular and Trinocular Viewing heads
- Optional Ergonomic tilting binocular head- Adjustable vertically from 10°to 50° degrees
- Ceramic Coated Stage with Ergonomically Placed Low Position Drop down Control
- Low Positioned Ergonomic Coaxial Focus Control
- Smooth Operating Ergonomic Quintuple Nosepiece
- Plan Apo 1.25X objective is used with a specialized Abbe condenser
- Plan Apo 4X, 10X, 20X and 40X is included
- 2.5X U Plan objective is available
- Brightfield Observation mode
- Super Bright LED Koehler illumination, lambertian design
- Abbe Condensers with swing out top lens
- Built-in iris diaphragm
- Integrated Automatic Voltage Sensing Power Supply with localized power cord
- Wide Range of Filters and Accessories
Brightfield:
The simplest of all the optical microscopy illumination techniques. Sample illumination is transmitted (i.e., illuminated from below and observed from above) white light and contrast in the sample is caused by absorbance of some of the transmitted light in dense areas of the sample. Brightfield microscopy is the simplest of a range of techniques used for illumination of samples in light microscopes and its simplicity makes it a popular technique. The typical appearance of a brightfield microscopy image is a dark sample on a bright background.
Dermatology:
The demand for a reliable Dermatology Microscope has been growing in popularity, with new treatments for skin cancer are appearing and evolving rapidly in recent years. Mohs surgery, also known as chemosurgery, is the most commonly used in the study with dermatology. Mohs surgery has come to be accepted as the single most effective technique for removing Basal Cell Carcinomas (BCC) and Squamous Cell Carcinomas(SCCs), the two most common skin cancers. It accomplishes the nifty trick of sparing the greatest amount of healthy tissue while also most completely expunging cancer cells; cure rates for BCC and SCC are an unparalleled 98 percent or higher with Mohs, significantly better than the rates for standard excision or any other accepted method.
The MT4000D Series are used to view thin slices of skin tissue, which have a common setup that utilizes lower magnification objective lenses 4x, 10x, 20x and 40. The lowest magnifications are typically used most frequently. When using a dermatology microscope the samples must be sliced thinly in order to allow the user to view it clearly.
VIEWING HEADS

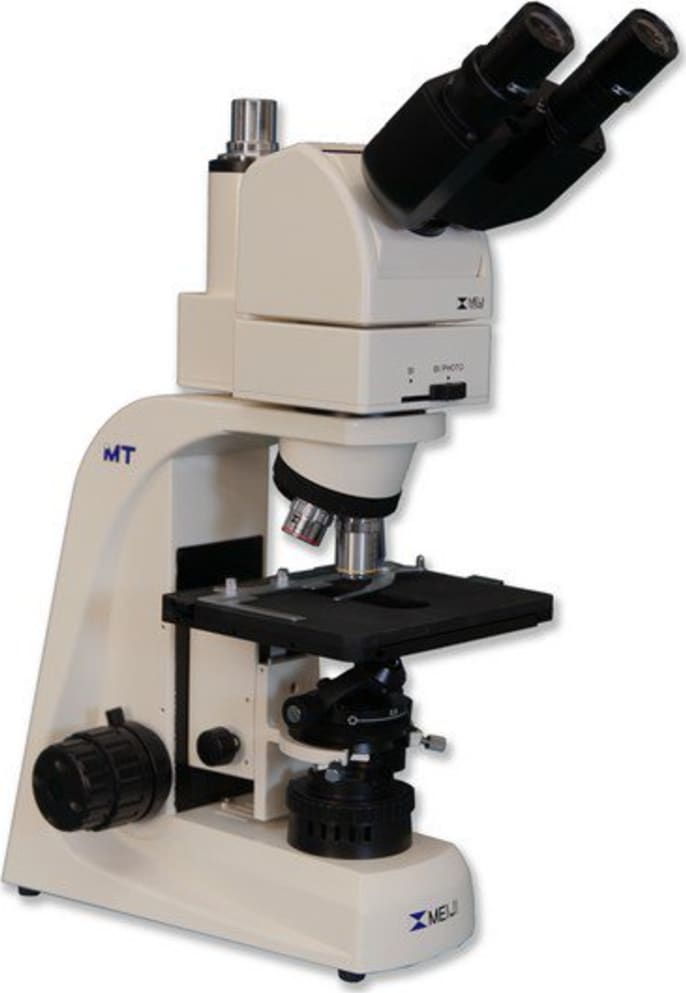

Model MA815/05 is the Siedentopf-type binocular head and Model MA816/05 is the trinocular head for camera integration. Each head has the eyetubes inclined at 30° with the left eyetube having graduated diopter settings. The interpupillary distance is adjustable between 53mm - 75mm. An 80/20 beamsplitter for the trinocular tube can be engaged for photo work. The optional MA957/05, Ergonomic Binocular Viewing Head, has the inclination adjustable from 10 to 50 degrees to fit users of different heights. The Ergonomic Trinocular model comes with the MA958, photo/video attachment with sliding 80/20 beam-splitter (Included in MT4300ED).
EYEPIECES
10X Widefield High Eyepoint eyepieces F.N.20 are standard, and 15X and 20X eyepieces are available as an option. A Widefield High Eyepoint 10X focusable eyepiece that accepts 21mm reticules is also available.
OBJECTIVE CHANGER
Quintuple nosepiece provides effortless objective changes with smooth-operating, ball bearing mounted.
OBJECTIVES
Meiji Techno America offers an assortment of Planachromat Infinity Corrected (ICOS) objectives for Brightfield observation mode.
STAGE
Ceramic coated standard right-handed or optional left-handed controls, flat top stage 171mm x 115mm and travels 78mm(X) x 52mm(Y). Ergonomically positioned coaxial drop down controls. Available with motorized focus and stage controls.
CONDENSER
New design centerable Abbe 1.25 N.A. Condenser with built-in iris diaphragm in dovetail mount.
ILLUMINATION
Powerful white LED illumination provides enhanced image quality and brightness for the observation of specimens and photomicroscopy.
PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras which offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models has included software, that can preview and capture still shots and live videos to a PC or Mac with USB port or HDMI connectivity.
