| Includes |
| ML6120L |

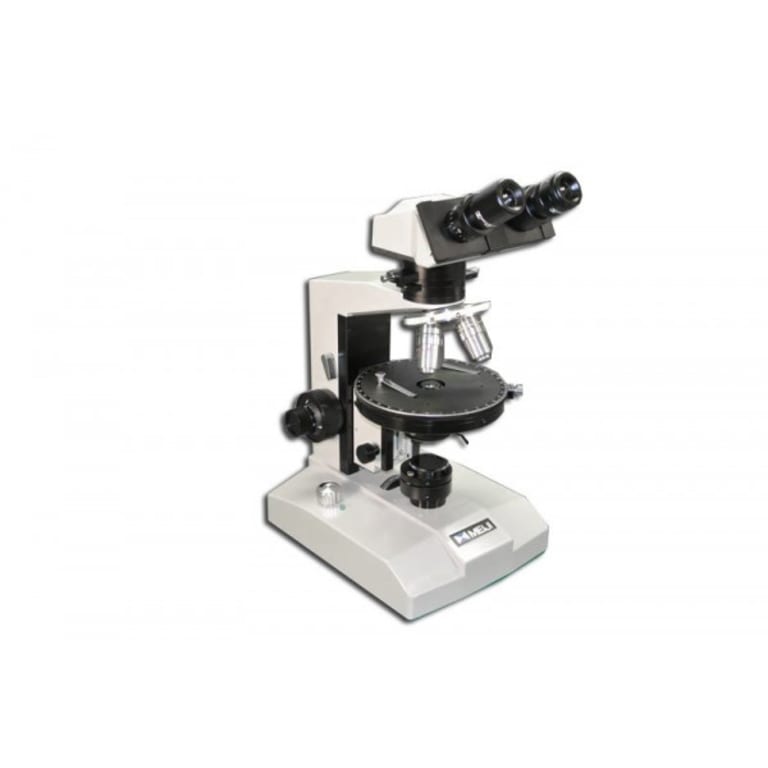

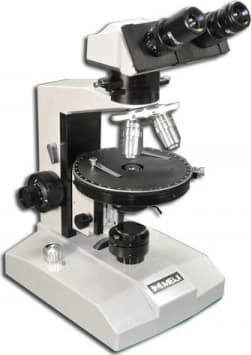

Binocular Polarizing PLM (Polarized Light ) Microscope for Asbestos fiber identification applications. Meiji manufactures these microscopes pursuant to NIOSH 9002 Reference methods, with strain free condenser and dispersion staining objectives and transmitted Koehler illuminator with LED lamp with variable intensity control |
| MA647 |
Binocular head, 30° inclination. One eye tube slotted for orientation of cross-line focusing eyepiece dual graduated diopter eyetubes with interpupillary adjustments of 52mm to 72mm. One eyetube slotted for 90° and 45°orientation of cross-line eyepiece |
| MA406 |
DIN HWF10X eyepiece, FN 18mm (each) |
| MA413 |
CP DIN focusing HWF10X eyepiece with cross-line and guide pin (each) |
| Nosepiece |
Quadruple ball-bearing with one fixed and three centerable objective apertures |
| MA642 |
SM Plan strain free objective 10X/N.A. 0.25 |
| MA642D |
SM Plan 10X dispersion staining objective |
| MA643 |
SM Plan strain free objective 20XS/N.A.0.40 |
| MA644 |
SM Plan strain free objective 40XS/N.A.0.65 |
| Stage |
Rotatable stage with Vernier graduation 360° with Vernier, reading to 1°, 150mm diameter with stainless steel stage clips (Factory Installed) |
| Focusing Adjustment |
Coaxial coarse and fine focusing controls with graduation reading 2 microns power division. Incorporates tension adjustment and safety Auto-focus stage stop lever |
| LED/SP-1 |
3W LED, 5500K color temperature |
| MA470 |
First order red compensating plate in sliding mount |
| MA471 |
Analyzer in sliding mount for E-W insertion for ML6100L Series |
| MA477 |
Bertrand lens in sliding mount with field limiting stop for ML6100L Series |
| MA665 |
Strain free achromatic polarizing condenser N.A. 1.25 with iris diaphragm and filter tray |
| Polarizer |
Swing in-out click/clamp mount, fully rotatable 360° with click stop at 0° and 90° |
| MA808/10 |
AC adapter for ML2000L, ML5000L, ML6100L, ML6500L, and ML9000L series. AC Input: 100V~240V, DC Output: 5V 2.5A |
| MA712 |
Dust cover for ML6100L Series |
| Manual |
Meiji Techno America ML6100L Manual |
| Warranty |
Limited Lifetime Warranty Card |
| Product Information |
| Manufactured |
100% MADE IN JAPAN |
| Warranty |
LIMITED LIFETIME WARRANTY |
| Customer Support |
1-(800) 832-0060 (U.S.A Based) |
| Package Information |
| Weight |
31.0 lbs (8.5 kg) |
| Box Size |
22 x 16 x 14 inches |
| Footprint |
254mm (D) x 203mm (W) |
| Binocular head type |
270 mm(D) x 435 mm (H) x 200mm(W) 31.0 lbs. (8.4 kg) |
| Trinocular head type |
270 mm(D) x 480 mm (H) x 200mm(W) 32.0 lbs. (8.7 kg) |
