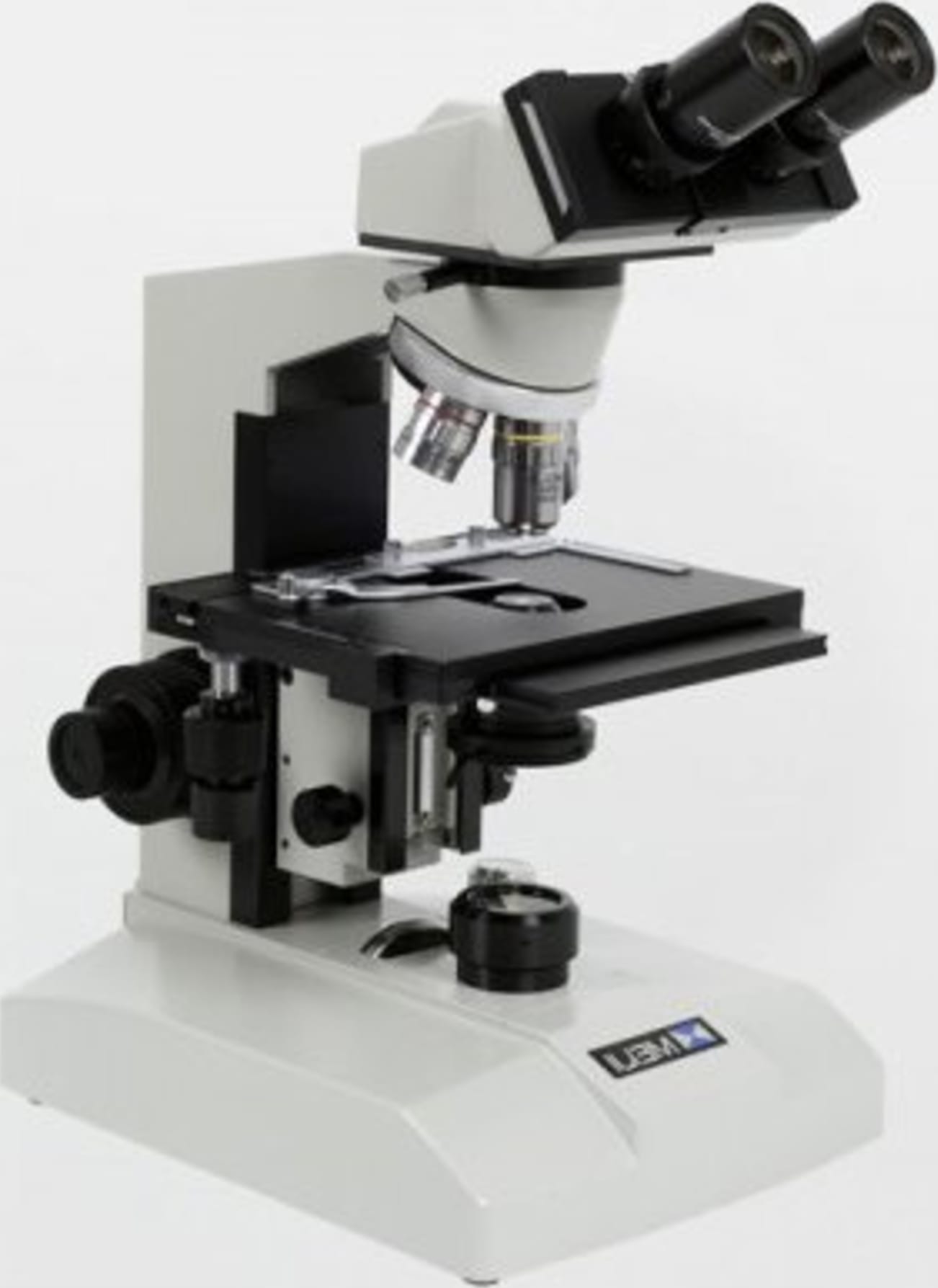

ML5050: The ML5050 is a Brightfield Binocular Laboratory Compound microscope with Koehler Halogen 6V 30W illumination with a reverse facing quadruple ball bearing nosepiece and auto voltage sensing power supply. High resolution DIN Standard BF Semi Planachromat and Planachromat objectives offer crisp, clear, high contrast images and are offered as part of the standard package. A built in integrated Koehler illuminator with a field iris and 6V 30W Halogen lamp and variable intensity control is provided standard equipment to complement the BF Semi Planachromat and Planachromat optics. The low voltage, high intensity, pre-centered halogen lamp provides high level illumination can be adjusted to maximize the evenness of the bulb illumination and is readily accessible for a quick bulb replacement. Flat-Top Mechanical stage with 171mm and 140mm rectangular stage with movement of 78mm (X) x 52mm (Y) with drop down Ergonomically placed low positioned coaxial controls and a detachable specimen guide.
MA602: Inclined Binocular head Inclined at 30°, 360° rotatable, dual graduated diopter eyetubes with interpupillary adjustments 52mm to 72mm
MA406 qty#2: DIN HWF10X eyepiece, Field No. 18, (each)
MA693: 40X/0.65 BF Semi Planachromat objective, spring loaded, W.D. 0.43mm, 160mm Tube Length
MA696: 100X/1.25 BF Semi Planachromat objective, spring loaded, W.D. 0.15mm, 160mm Tube Length
MA622: 4X/0.10 Planachromat objective, 160mm Tube Length
MA623: 10X/0.25 Planachromat objective, 160mm Tube Length
MA661: Achromatic substage condenser 1.25 NA with iris diaphragm and 30mm filter tray
Stage: Flat-Top Mechanical stage with 171mm and 140mm rectangular stage with movement of 78mm (X) x 52mm (Y) with Ergonomically placed drop down low positioned coaxial controls and a detachable specimen guide. (Factory Installed)
Focusing Adjustment: Coaxial coarse and fine focusing controls with graduation reading 2 microns power division. Incorporates tension adjustment and safety Auto-focus stage stop lever
MA289/05: Blue filter, clear, 29.8mm diameter
MA676: Attachable clinical specimen holder for MA596R and MA596L
MA596R: Flat-top stage with clinical specimen holder, 78mm X 52mm, X-Y movement, with drop down coaxial controls (right) (left hand available upon request)
MA326: Bulb 6V 30W Halogen ( Factory Installed)
MA327: Fuse 3Amp (Factory Installed)
MA700: Immersion Oil. 15cc
MA701: Dust Cover for ML5000
Manual: Meiji Techno America ML5000 Manual
Warranty: Limited Lifetime Warranty Card
