Includes |
ML2500L |

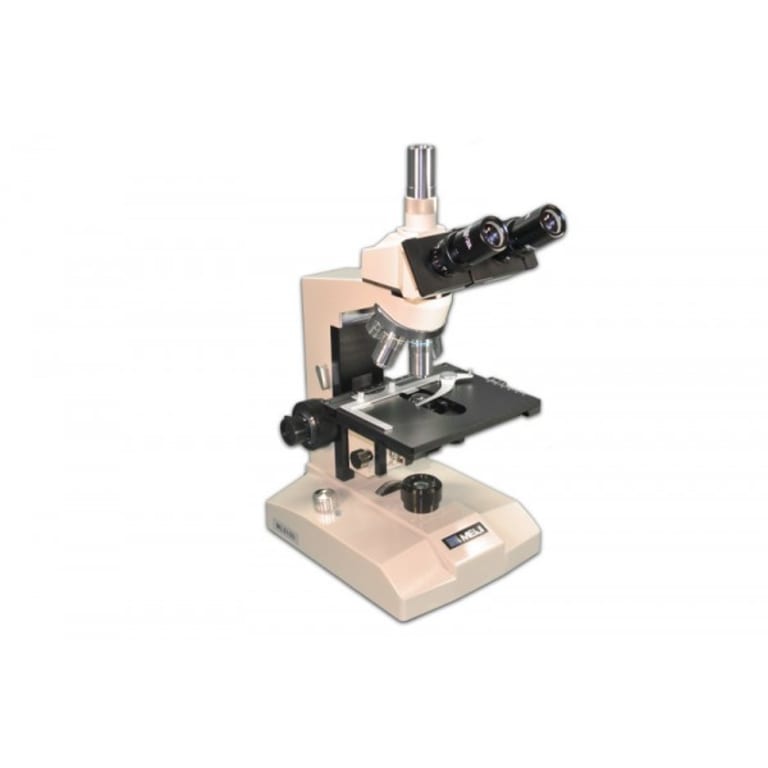

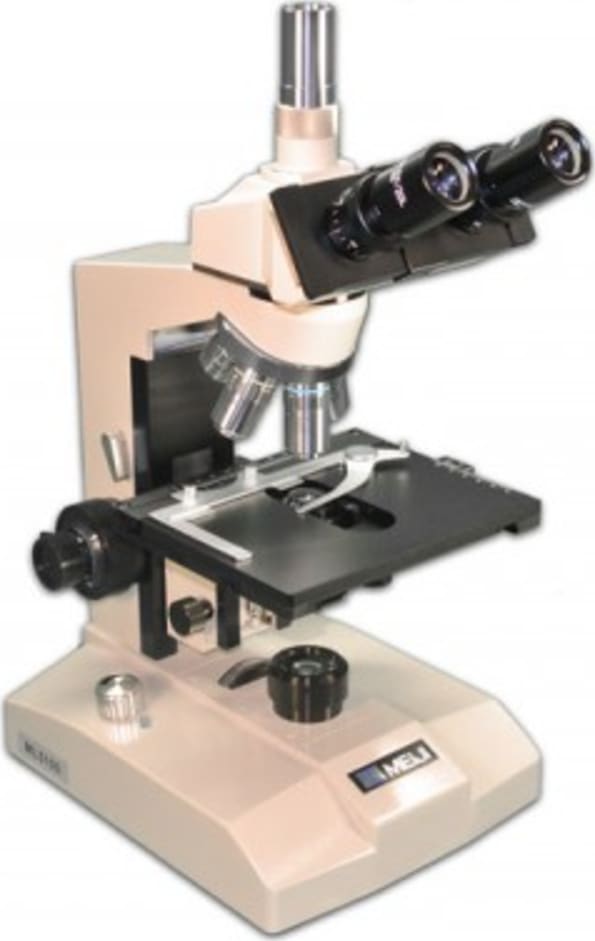

The ML2500L is a LED Brightfield Trinocular Laboratory Compound microscope with Koehler LED illumination with forward facing quadruple ball bearing nosepiece. High resolution DIN Standard SM Plan objectives offer crisp, clear, high contrast images and are offered as part of the standard package. A built in integrated Koehler illuminator with a field iris and LED lamp and variable intensity control is provided standard equipment to complement the SM PLAN optics. The low voltage, high intensity, pre-centered LED lamp provides high level illumination can be adjusted to maximize the evenness of the bulb illumination. Flat-Top Mechanical stage with 171mm and 140mm rectangular stage with movement of 78mm (X) x 52mm (Y) with drop down Ergonomically placed low positioned coaxial controls and a detachable specimen guide. |
MA603 |
Inclined Trinocular head, inclined at 30°, rotatable through 360° Trinocular models has a sliding beam splitter that directs 100% of the light to the eyepieces or 80% to the camera and 20% to the eyepieces. |
MA406 qty#2 |
DIN HWF10X eyepiece, Field No. 18, (each) |
MA622 |
4X/0.10 Planachromat objective |
MA623 |
10X/0.25 Planachromat Objective |
MA625 |
40X/0.65 Planachromat Objective, spring loaded |
MA627 |
100X/1.25 Planachromat Objective, spring loaded |
MA661 |
Achromatic substage condenser 1.25 NA with iris diaphragm and 30mm filter tray |
Stage |
Mechanical X-Y stage with attached finger assembly and drop down post, attached stage is 120mm x 140mm rectangular mechanical stage with movements of 75mm (X) x 40mm (Y) and is graduated with Vernier readings to 0.1mm, equipped with low positioned drop down coaxial controls. (Factory Installed) |
Focusing Adjustment |
Coaxial coarse and fine focusing controls with graduation reading 2 microns power division. Incorporates tension adjustment and safety Auto-focus stage stop lever |
MA289/05 |
Blue filter, clear, 29.8mm diameter |
MA676 |
Attachable clinical specimen holder for MA596R and MA596L |
MA596R |
Flat-top stage with clinical specimen holder, 78mm X 52mm, X-Y movement, with drop down coaxial controls (right) (left hand available upon request) |
LED/SP-1 |
3W LED, 5500K color temperature |
MA808/10 |
AC adapter for ML2000L, ML5000L, ML6100L, ML6500L, and ML9000L series. AC Input: 100V~240V, DC Output: 5V 2.5A |
MA700 |
Immersion Oil. 15cc |
MA701 |
Dust Cover for ML2000L |
Manual |
Meiji Techno America ML2000L Manual |
Warranty |
Limited Lifetime Warranty Card |
Product Information |
Manufactured |
100% MADE IN JAPAN |
Warranty |
LIMITED LIFETIME WARRANTY |
Customer Support |
1-(800) 832-0060 (U.S.A Based) |
Package Information |
Weight |
21.0 lbs (9.5 kg) |
Box Size |
22 x 16 x 23 inches |
Footprint |
254mm (D) x 203mm (W) |
Binocular head type |
255 mm(D) x 395 mm (H) x 195mm(W) 21.0 lbs. (9.5kg) |
Trinocular head type |
255 mm(D) x 440 mm (H) x 195mm(W) 22.0 lbs. (10.0kg) |
