N.A. 0.40, F.L. 10.0mm, W.D. 7.5mm

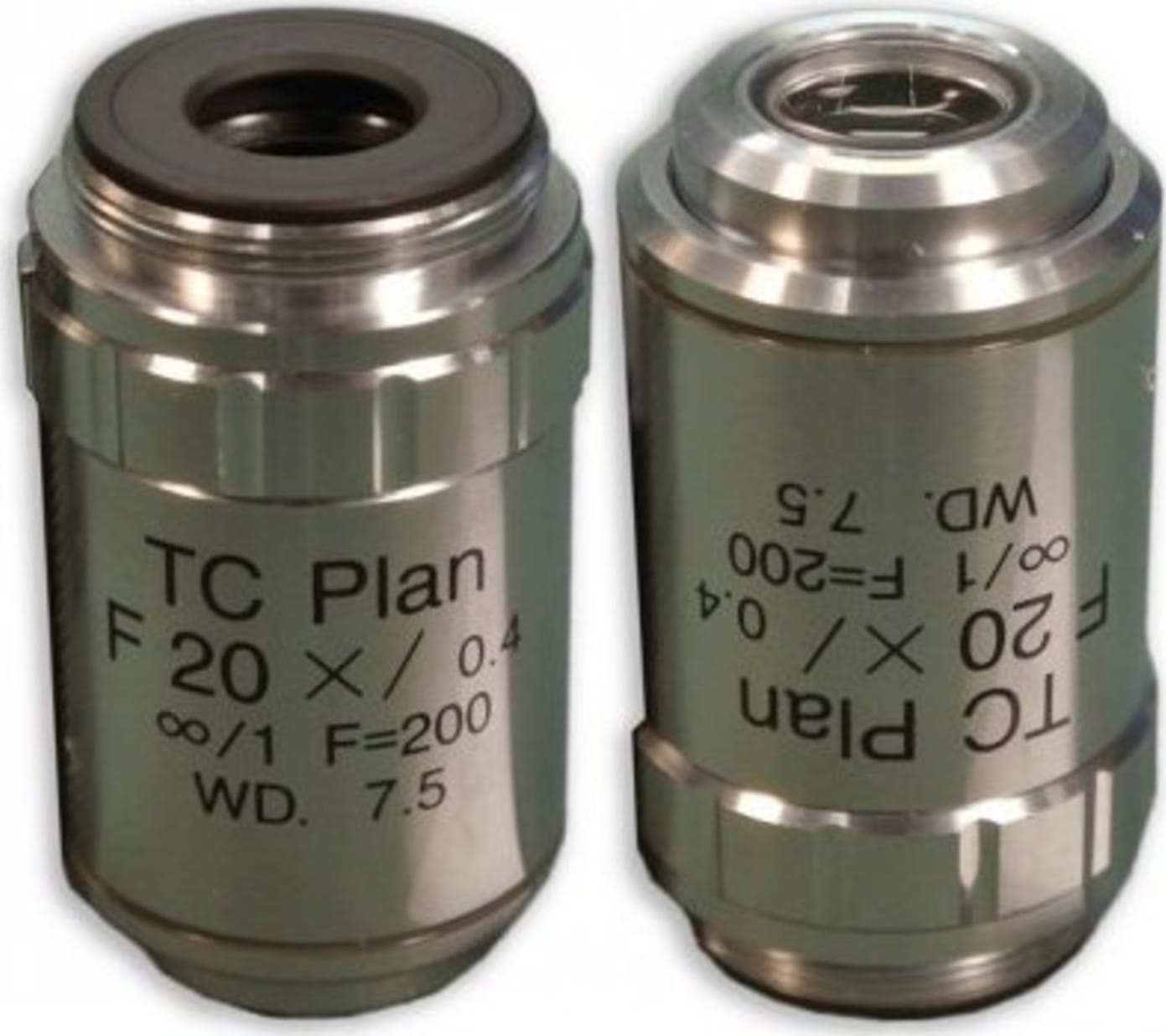

Meiji Techno MA851 TC Plan Achromat F20X Inverted Biological Microscope Epi-Fluorescence Objective is made to the highest Japanese quality and optical standards, utilizing an Infinity Tube Lens Design F=200mm. N.A. 0.40, F.L. 10.0mm, W.D. 7.50mm Designed to meet the most advanced Epi-Fluorescence imaging requirements. The MA851 is designed for our TC5500CL or TC5500CW and TC5600CL or TC5600CW Series. This objective represents the culmination of Meiji Techno’s Optical Japanese technology. This objective offers increased brightness and the highest possible N.A. in its class for maximum light gathering ability. Designed to correct lateral and axial chromatic aberrations over the entire field of view. This objective produce images that are flat, crisp and clear with high contrast and optical resolution. This objective works with a wide array of applications. The stated magnification is based on a Tube lens of 200mm. DIN Standard mounting threads is 0.7965” (20.1MM) Diameter threads, 36 TPI (Threads per inch), 55° Whitworth. This objective is compatible with all Infinity Corrected Optical System.

The MA851 TC Plan Achromat F20X Inverted Biological Microscope Objective lens is also an option in our TC-5500 and TC-5600 CoolLED Epi-Fluorescence Upright Series.
