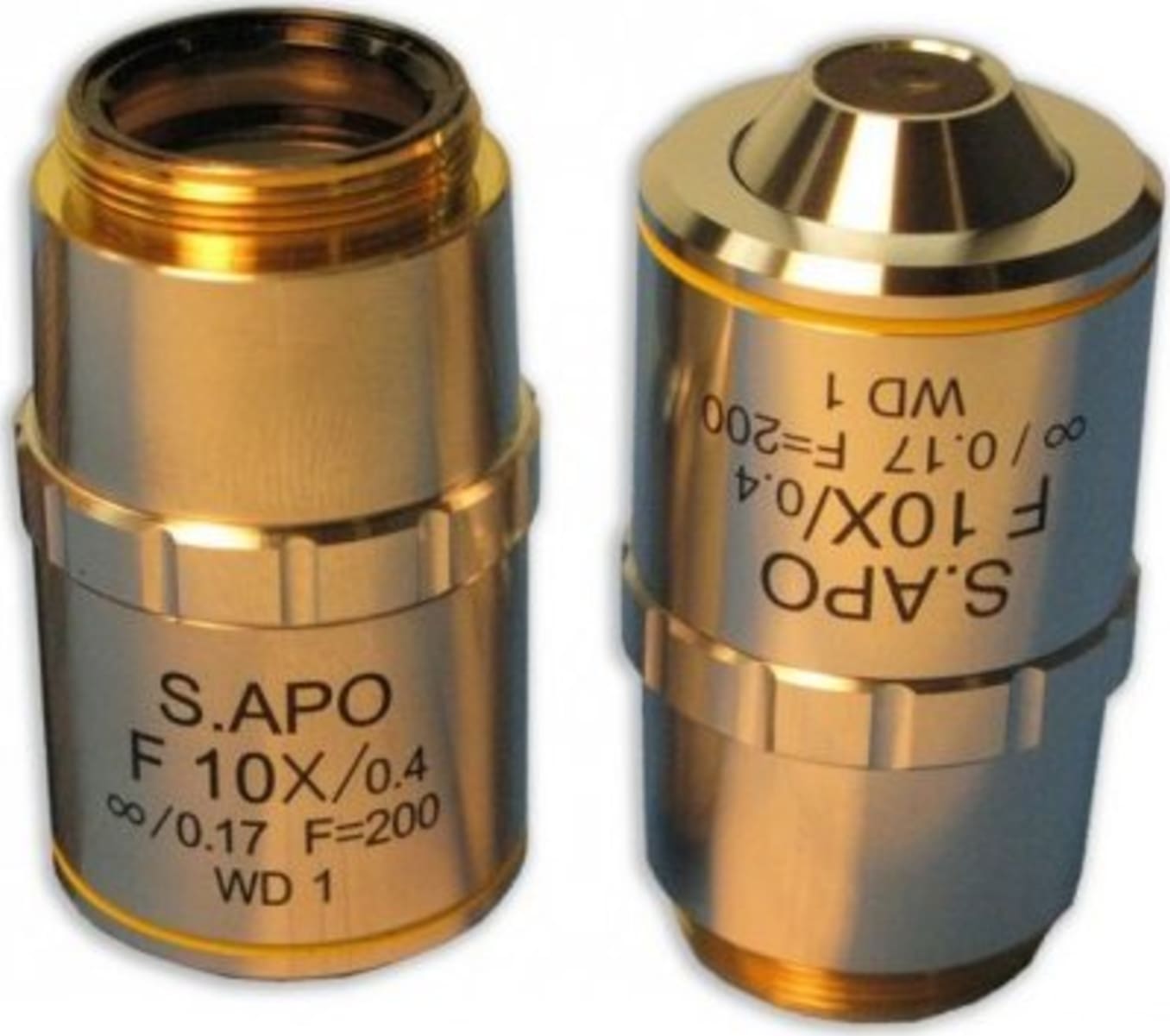

Meiji Techno MA844 - Plan Semi Apochromat F10X Objective

Name: Meiji Techno MA844 - Plan Semi Apochromat F10X Objective
Brand: Meiji Techno
SKU: MeijiMA844
Price: 381.59 USD
Availability: InStock

0 reviews | Model: Meiji Techno MA844

Compare

Semi Apo Plan objective F10X, N.A. 0.40, W.D.1.0mm, F.N.24

Type: Plan Semi Apochromat F (Biological)
Optical: Infinity Corrected ∞ Tube Lens
Tube Length: F=200mm
Magnification: 10X
Numerical Aperture (N.A.): 0.40
Focal Length (F.L.): 20.0mm
Working Distance (W.D.): 1.0mm
Parfocal Distance: 45mm
Cover Slip Correction: 0.17mm
Diameter Threads: 0.7965" (20.1mm) DIN Standard

View Product Details

List Price: $445.00

Your Price: $381.59

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series



Product	Meiji Techno MA844 Semi Apo Plan objective F10X, N.A. 0.40, W.D.1.0mm, F.N.24	Meiji Techno MA845 Semi Apo Plan objective F20X, N.A. 0.65, W.D.0.7mm, F.N.24	Meiji Techno MA848 Semi Apo Plan objective F100X, oil, N.A.1.25, W.D.0.2mm, F.N.24
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare

Recommended for you

Meiji Techno MA844 - Plan Semi Apochromat F10X Objective

N.A. 0.40, F.L. 20.00mm, W.D.1.0mm

The MA844 is a Plan Semi Apochromat F10X Infinity Objective. It has a parfocal distance of 45mm, a din standard 0.7965" (20.1mm) diameter threads, 36 TPI and 55° Whitworth. This objective is used with the MT6000C series.

Type	Plan Semi Apochromat F (Biological)
Optical	Infinity Corrected ∞ Tube Lens
Tube Length	F=200mm
Magnification	10X
Numerical Aperture (N.A.)	0.40
Focal Length (F.L.)	20.0mm
Working Distance (W.D.)	1.0mm
Parfocal Distance	45mm
Cover Slip Correction	0.17mm
Diameter Threads	0.7965" (20.1mm) DIN Standard
TPI	36
Whitworth	55°
Diameter (mm)	27.79mm
Length (mm)	-mm
Weight (g)	80g
Oil	✘
IS9001	✔
