N.A. 0.13, F.L. 50.0mm, W.D.17.3mm

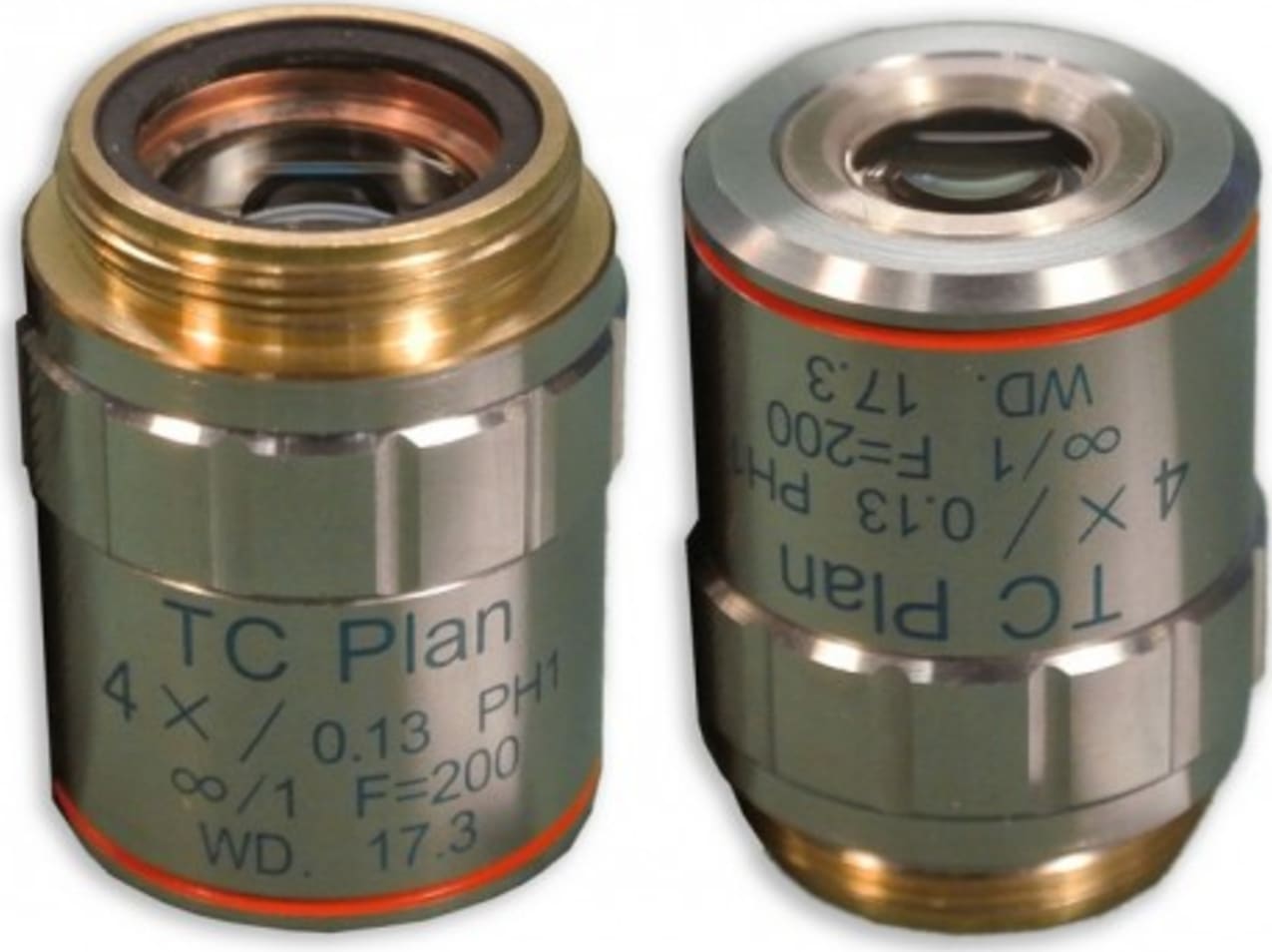

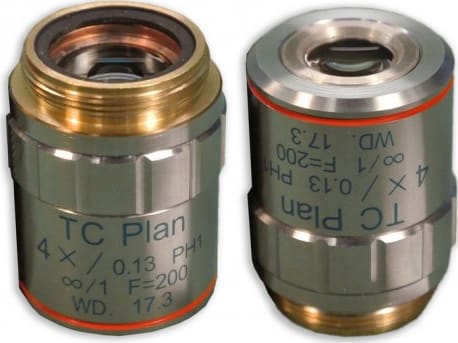

Meiji Techno MA825 TC Plan Phase 4X Inverted Biological Microscope Objective is made to the highest Japanese quality and optical standards, utilizing an Infinity Tube Lens Design F=200mm. Designed to meet the most advanced Polarizing and Geological imaging requirements. This objective represents the culmination of Meiji Techno’s Optical Japanese technology. This objective offers increased brightness and the highest possible N.A. in its class for maximum light gathering ability. Designed to correct lateral and axial chromatic aberrations over the entire field of view. This objective produce images that are flat, crisp and clear with high contrast and optical resolution. This objective works with a wide array of applications. The stated magnification is based on a Tube lens of 200mm. DIN Standard mounting threads is 0.7965” (20.1MM) Diameter threads, 36 TPI (Threads per inch), 55° Whitworth. This objective is compatible with all Infinity Corrected Optical System.

The MA825 TC Plan Phase 4X Inverted Biological Microscope Objective lens is also an option in our TC-5000 Upright Series
