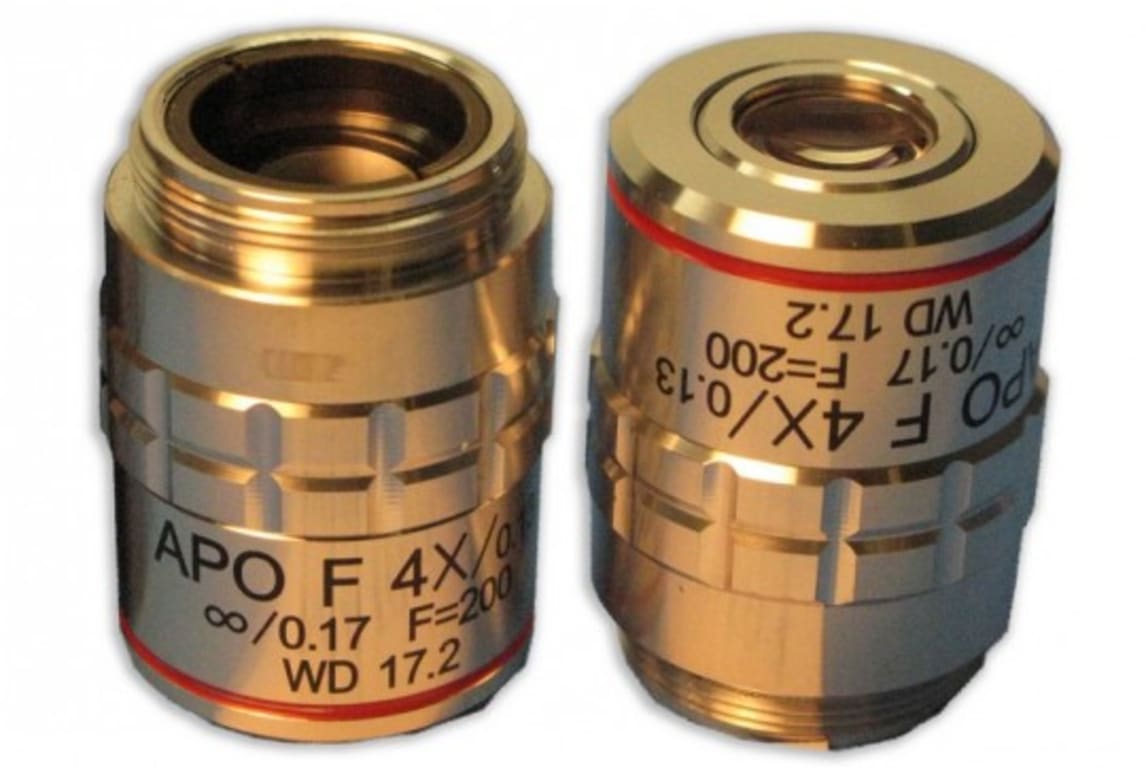

Meiji Techno MA1012 - Plan Apochromat F4x Objective (W.D. 17.5mm) for MT6000C Series

Name: Meiji Techno MA1012 - Plan Apochromat F4x Objective (W.D. 17.5mm) for MT6000C Series
Brand: Meiji Techno
SKU: MeijiMA1012
Price: 445.90 USD
Availability: InStock

0 reviews | Model: Meiji Techno MA1012

Compare

Plan Apochromat objective F 4X, N.A. 0.13, W.D. 17.5mm, F.N. 24

Type: Plan Apochromat F (Biological)
Optical: Infinity Corrected ∞ Tube Lens
Tube Length: F=200mm
Magnification: 4x
Numerical Aperture (N.A.): 0.13
Focal Length (F.L.): 24.0mm
Working Distance (W.D.): 17.5mm
Parfocal Distance: 45mm
Cover Slip Correction: 0.17mm
Diameter Threads: 0.7965" (20.1mm) DIN Standard

View Product Details

List Price: $520.00

Your Price: $445.90

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Recommended for you

Meiji Techno MA1012

Type: Plan Apochromat F (Biological)
Optical: Infinity Corrected ∞ Tube Lens
Tube Length: F=200mm
Magnification: 4X
Numerical Aperture (N.A.): 0.13

Plan Apochromat F4x Objective (W.D. 17.5mm) for MT6000C Series

The MA1012 is a Plan Apochromat F4x Infinity Objective. It has a parfocal distance of 45mm, a din standard 0.7965" (20.1mm) diameter threads, 36 TPI and 55° Whitworth. This objective is used with the MT6000C series.
