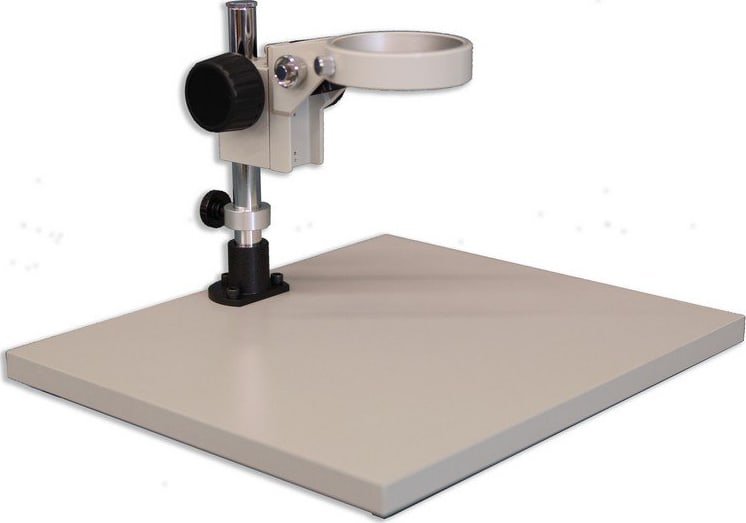

The KBL Wide-Surface Stand is a Meiji Techno America’s most popular Ergonomic 380mm x 330mm x 20mm flat Laminate Board stand which requires external illumination when an extended work surface is needed. This Ergonomic stand can accommodate large circuit boards or animal surgery which requires a wide surface area. Equipped with an integral FX focusing holder which has a illuminator port mount to accommodate a versatile LED illuminator (MA264/LED) or any fiber optic light option. The F coarse focus block/holder is a focusing holder with rack and pinion mount that allows smooth and precise focusing over 55mm of travel. Its coarse focus mechanism incorporates a slip clutch and tension adjustment. Fits 20mm diameter, 71mm long mounting post. The 84.2mm diameter opening accepts all EM Series stereo bodies. The KBL Stand is a great complement to our Stereo microscopes due to the focus block’s ability to be easily raised vertically to accommodate different sample heights or special applications. A 5” (100mm) extension pillar for the threaded vertical post is also available if needed to accommodate taller specimens (MA551).
Modular Flexibility:
EMZ Series zoom stereo microscopes are most the rugged microscopes from Japan and tailored to fit the needs of each and every customer. Modular design enables the user to engineer their own custom solution for virtually any application, selecting components from the widest range bodies, stands, eyepieces, supplementary lenses, illuminators, camera adapters, and accessory components available in the microscope industry today.
Superb Optics:
Multi-coated optical components, free form chromatic and spherical aberration, provide crystal-clear, high resolution images. The Greenough optical design provides superior erect, unreversed, stereoscopic images, rich in contrast, brightness and correct in their original color. Excellent depth of field and a flat image rendition are also characteristic of the EMZ Series product line.
Rugged Dependability:
All-metal aluminum alloy microscope bodies and components with chemical resistant finishes guarantee stability and rugged dependability for a lifetime of day-in and day-out use. Superior craftsmanship, quality components and materials result in long-lasting, high-performance products.
Ergonomic Design:
All EMZ Series zoom stereo microscope bodies feature a compact lightweight design. Every stereo body features adjustment diopter tubes and interpupillary distance adjustment. Observation tubes are inclined at 45°, 60° or 90° for convenient fatigue free viewing depending on the application, A range of fixed of tilting focus blocks are available to mount the microscope body onto existing O.E.M. equipment. A choice of Zoom, Turret or Fixed magnification bodies with various working distances, optional auxiliary objectives and eyepieces, multiple adjustable stands, versatile illumination systems, and auxiliary components allow the end user to design a system to fulfill their specific requirements.
Applications:
EMZ Series zoom stereo microscopes are the prefect modular microscope systems for a multitude of applications ranging from biological and industrial fields to educational and training situations. A wide variety of professional groups currently use the EM series product to their advantage: Biologist, Physicians, Geologists, Engineers, Dentists, Dental Technicians, Veterinarians, Paleontologists, Entomologists, Gemologists, Educators, Scientific Researchers, Quality Control Personnel, Quality Assurance Personnel, Assemblers, Forensic Document Examiners, Art Restoration Experts, Textile Specialists, Wire and Die Manufacturers, Environmental Specialists, Ophthalmic Specialists, Dermatologists, Metrology Personnel, Tool and Die Professionals, Circuit Board Rework and Repair Personnel, Aquaculture Professionals, Embryo Transplant Professionals, Horticultural Experts, Exterminators, Fish and Wildlife Departments, U.S. Customs Service, Semiconductor Manufacturers, Foresters, Pharmaceutical Manufacturers, Electroplating Specialist, Ballistics Experts, and more!
