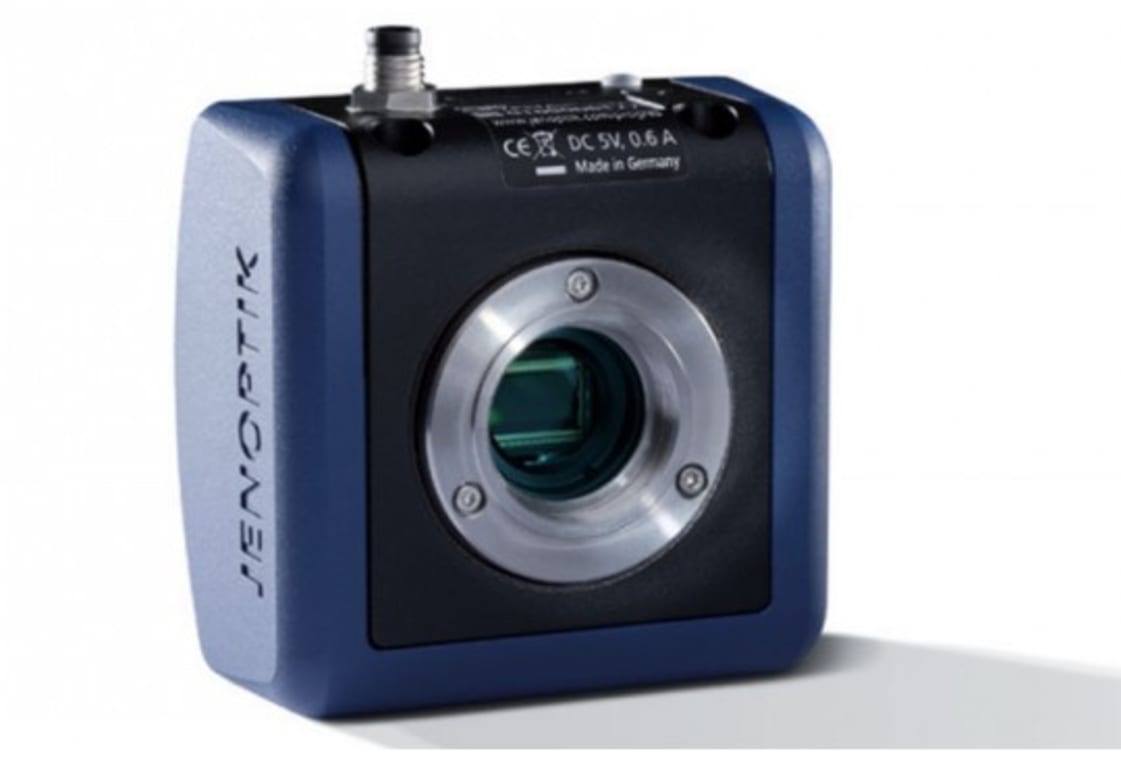

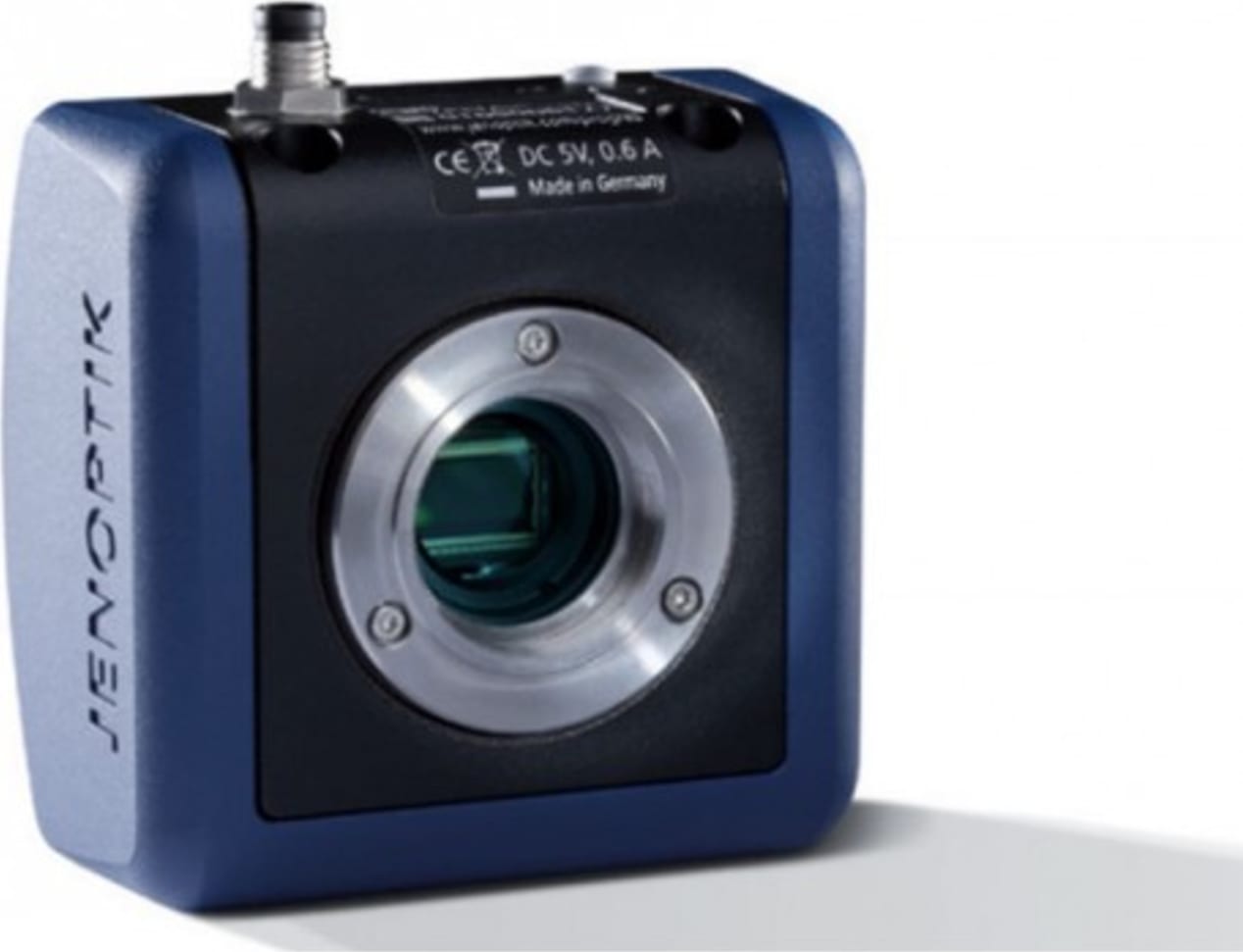

Full HD Microscope Camera, USB 3.0, 30-50 FPS
JK-SUBRA camera brings reliability and efficiency to microscopy image acquisition. Its modern CMOS sensor featuring a particularly high pixel resolution delivers shorter exposure times and high image refresh rates. You can work very comfortably with the microscope camera, as well as save time.
The microscope camera offers excellent image quality thanks to its exceptionally high degree of sensitivity and quantum efficiency. It provides accurate color reproduction with the finest gradations and generates a fast live image in full HD. This makes it even easier for you to position and focus the preparation being examined, bringing it quickly into focus. Even moving objects can be examined with ease.
The camera features a modern, fast USB 3.0 interface. You will also receive the appropriate software and free updates with the camera, so you can upgrade your microscope to a modern digital workstation.
SYSTEM REQUIREMENTS:
- Personal Computer: Intel i7 (Quad-Core) processor or comparable / 8 GB RAM
- Operating System: WIN 7 / 8 / 10 I MAC El Capitan I LINUX Ubuntu 14.04 LTS
- Data interface: FUSB 3.0 integrated, no extra power supply needed
- Monitor resolution: 1920 x 1080 pixel or higher
- Software (included in the package): 64 bit operating systems only
IMAGE SENSOR:
- Type I square I utilised sensor diagonal: CMOSIS CMOS I 2/3“ I 12.75 mm
- Pixel dimensions: 5.5 x 5.5 µm
- Color or monochrome: Color
- Transfer method I shutter mode: Progressive scan I Global shutter
- Full sensor resolution: 2048 x 1084 pixel

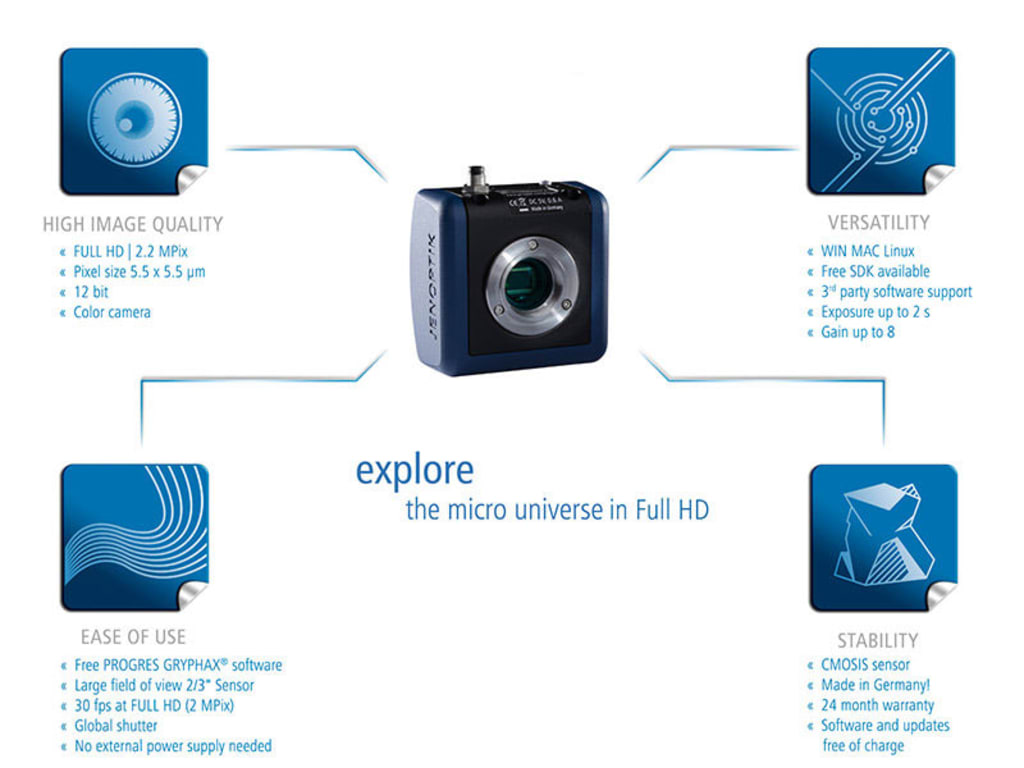

BENEFITS:
- High image quality: Full HD & 2.2 MPix, Pixel size 5.5 x 5.5 µm, 12 Bit, Color camera.
- Versatility: WIN, MAC and Linux, free SDK available, 3rd party software support, Exposure up to 2 seconds and Gain up to 8.
- Ease of use: Free microscope camera software, large field of view 2/3“, 30 fps @ Full HD (2 MPix), Global shutter and no external power supply needed.
- Stability: CMOSIS sensor, Made in Germany, 24 month warranty and software updates free of charge.
FIELDS OF APPLICATION:
- Research Life - Life Science: medicine, pathology, hematology, cytology, genetics, biology and chemistry.
- Evaluate Quality – Quality Control: grain analysis, welded seam testing and controlling manufacturing processes
- Examine Elements - Material science: mineralogy and metallography — determining structures, quantitative and qualitative sample analyses and documentation.
- Reveal Truth - Forensics: securing of evidence, document examination and forensic medicine.
