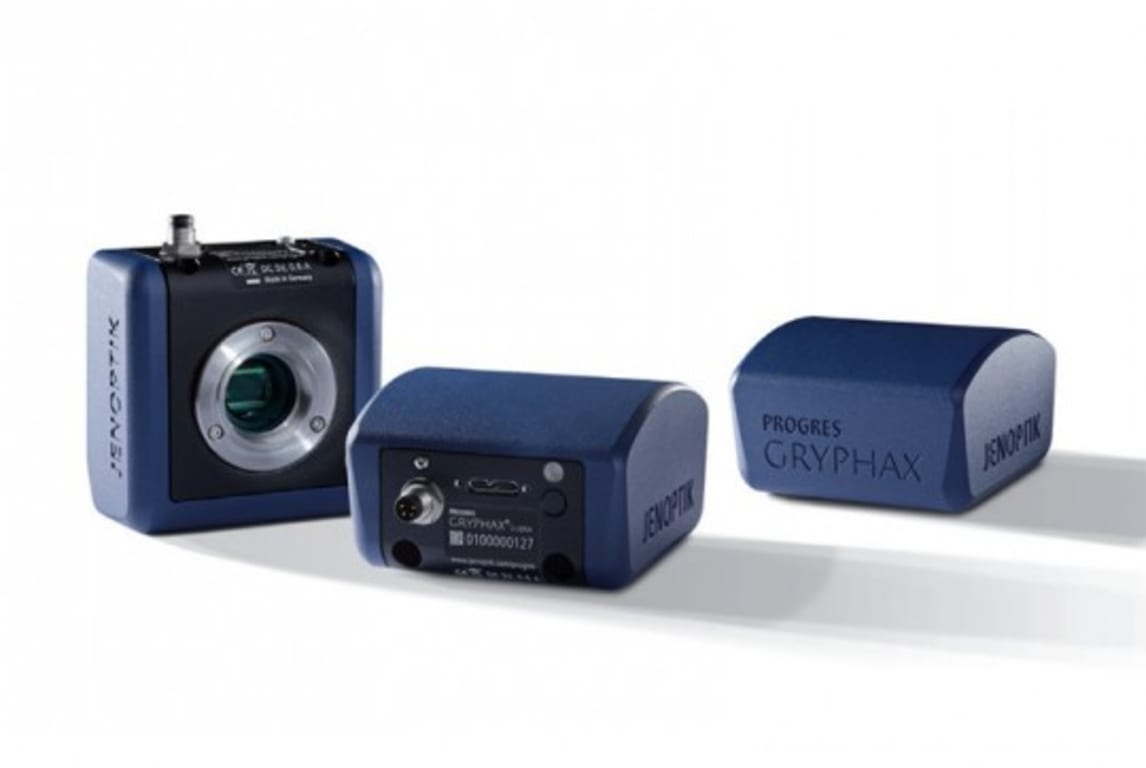

2.3 MP Monochrome Camera, USB 3.0, 60 FPS
JK-Rigel is the monochrome counterpart to the KAPELLA and is the most sensitive camera in the entire portfolio. The operating software included is tailored precisely to the requirements and workflows of the user.
High image quality: With WUXGA, Pixel size 5.86 x 5.86 µm, 12 Bit, Dynamic range 73.3 dB, Monochrome camera.
SYSTEM REQUIREMENTS:
- Personal Computer: Intel i7 (Quad-Core) processor or comparable / 8 GB RAM
- Operating System: WIN 7 / 8 / 10 I MAC El Capitan I LINUX Ubuntu 14.04 LTS
- Data interface: USB 3.0 integrated, no extra power supply needed
- Monitor resolution: 3840 x 2160 pixel or higher
- Software (included in the package): 64 bit operating systems only
IMAGE SENSOR:
- Type I square I utilised sensor diagonal: SONY back-illuminated CMOS I 1/1.2“ I 13.27 mm
- Pixel dimensions: 5.86 x 5.86 µm
- Color or monochrome: Monochrome
- Transfer method I shutter mode: All pixel scan I Global shutter
- Full sensor resolution: 1920 x 1200 pixel
BENEFITS
- High image quality: With WUXGA, Pixel size 5.86 x 5.86 µm, 12 Bit, Dynamic range 73.3 dB, Monochrome camera.
- Versatility: WIN, MAC and Linux, free SDK available, 3rd party software support, Exposure up to 120 seconds and Gain up to 60
- Ease of use: Free PROGRES GRYPHAX® microscope camera software, large field of view 1/1.2“, 60 fps @ 2.3 MPix and no external power supply needed.
- Stability: SONY Sensor - back illuminated, Made in Germany, 24 month warranty and software updates free of charge.
FIELDS OF APPLICATION
- Research Life - Life Science: medicine, pathology, hematology, cytology, genetics, biology and chemistry.
- Evaluate Quality - Quality Control: grain analysis, welded seam testing and controlling manufacturing processes.
- Examine Elements - Material science: mineralogy and metallography — determining structures, quantitative and qualitative sample analyses and documentation.
- Reveal Truth - Forensics: securing of evidence, document examination and forensic medicine.
