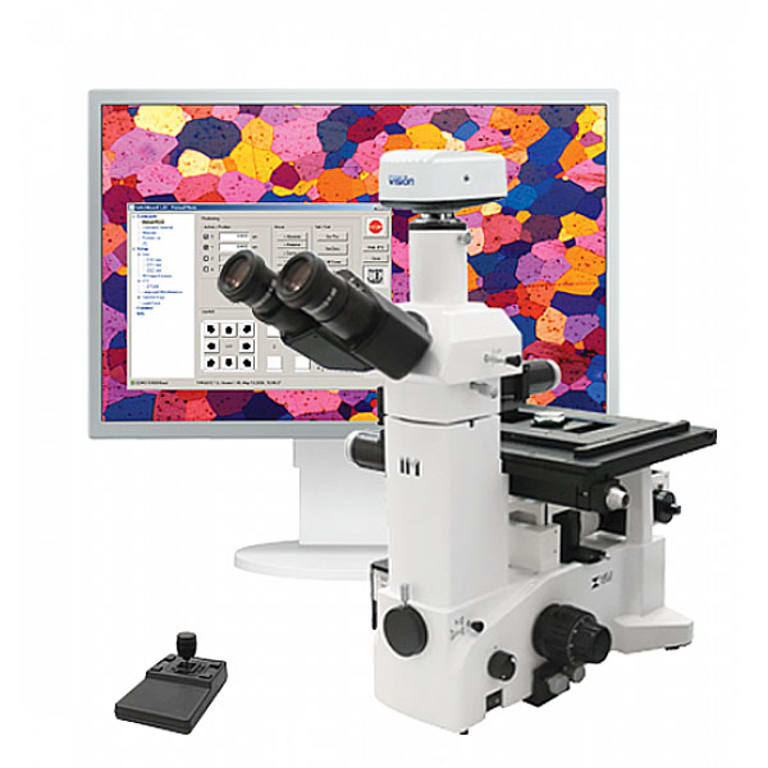

Motorized Inverted Metallurgical Microscope
A motorized microscope changes your way of work completely from manual to automated operations enhancing your work efficiency. The design of a motorized microscope focuses on convenience and ease. You operate an integrated system of a microscope, camera and computer without wasting time on manual microscopy.
Automated capturing panoramic images of specimens: combining several fields of view into a single image; you set borders of the image and the motorized system generates a macro-specimen automatically.
Automated navigation: if you are interested in a specific object in the specimen the system can save the coordinates of the field of view for it; when needed, the motorized system can quickly return to it from another field of view automatically.
Autofocus: set the focus automatically while processing a specimen.
Automated analysis: create a specimen analysis profile and the system will perform required operations automatically; it will only take placing a specimen on the stage and activating the profile to get the system to prepare an analysis report for you automatically.
A motorized microscope is designed for a number of specimens to be placed simultaneously, which allows the system to run a number of tests in one session, reducing the service time of system.
If you’ve already got a Meiji Techno IM7000 microscope you can upgrade it with a motorized stage, automated focus and control unit to get a motorized microscope.
- Microscope Components:
- IM7200 microscope stand
- Trinocular head with photo port
- Eyepiece block for Siedentopf style head
- SWH 10x, F.N. 22mm eyepiece (2)
- Rubberized Eyepiece eyeshields (2)
- Kohler vertical illuminator with halogen light source (6V, 30W)
- Blue filter
- Green filter
- Polarization filter
- Neutral density filter
- Stage Components:
- Motorized scanning stage 120x100 mm
- MA motorized focus drive
- Adapter plate for focus drive (two plates, steel pin, screw)
- Retaining ring for focus drive
- Spring-loaded coupling with two screws
- Tango 3-axis controller and 3-axis joystick
- Countersunk screw M3x6 DIN 7991 for focus drive (2)
- Allen screw M3x8 DIN 912 for stage (4)
- Screw kit (SW 3.0, 2.5, 2.0, 1.5, 1.3)
- CPU and Monitor Components:
- High power PC with monitor and keyboard
- Mouse with mouse pad
- Microscope dust protection
- Object micrometer
- 3-axis motor cable
- Power cable (specify 110V or 220V)
- Surge protector
- Microscope Objectives:
- Objective Planachromat E5x/0.10
- Objective Planachromat E10x/0.25
- Objective Planachromat E20x/0.40
- Objective Planachromat E50x/0.75
- Microscope Camera:
- Optical C”-mount 0.5x
- Digital camera CAM V3200
- Camera power supply
- Camera power extension cord
- Camera USB cable
- Other Components:
- User manual
- Pre-fabricated crate with laser etched foam mold
- Packing list
