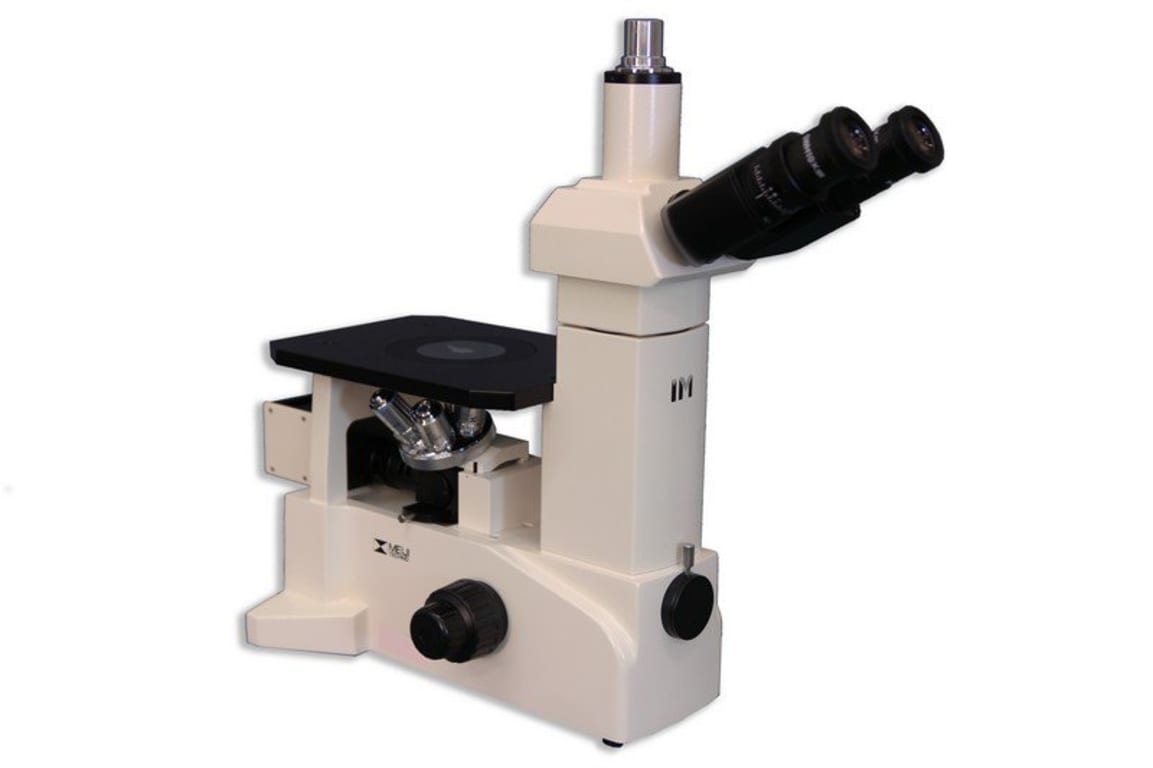

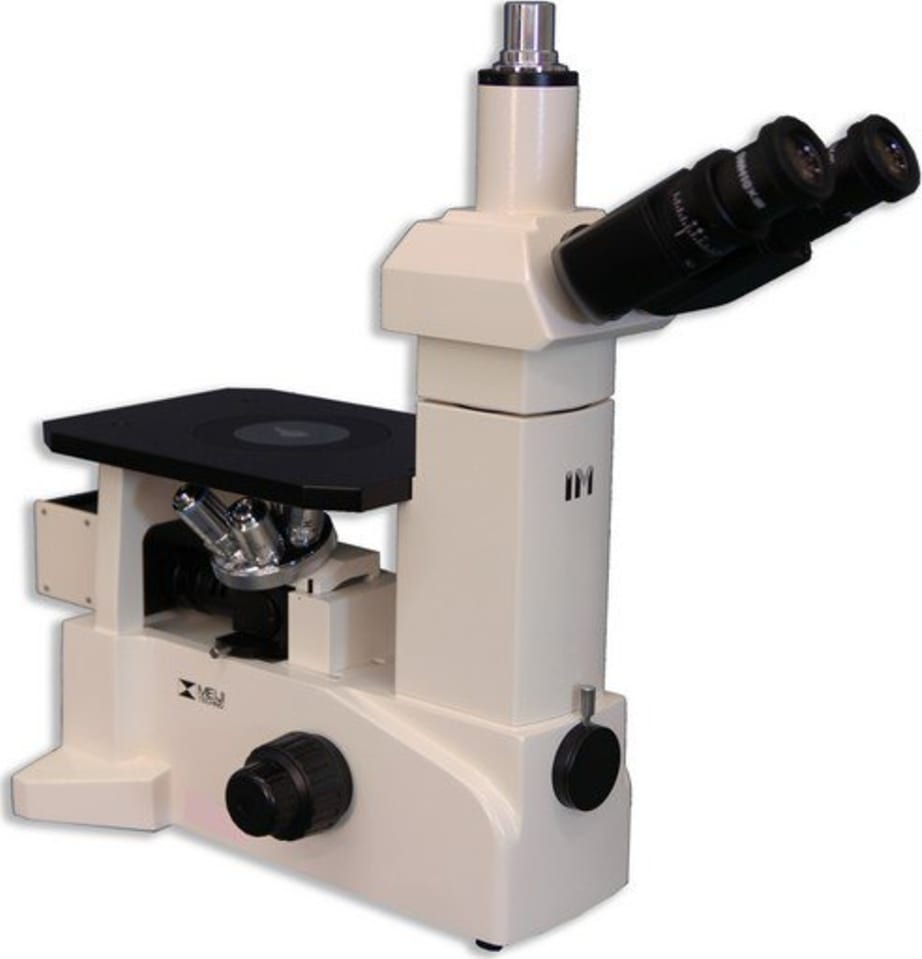

Inverted Trinocular Metallurgical Microscope with Halogen (6V, 30W)
The Meiji Techno IM7200 Series Inverted Metallurgical Microscope has an ergonomic slim triangular shaped design that saves bench space to maximize efficiency and offers ultimate stability with its cast aluminum alloy frame. This is the most rugged Inverted Microscope from Japan.
Infinity Corrected Planachromat 5X, 10X, 20X and 50X objectives are standard, as are conveniently positioned controls, providing comfort and extended ease of use for the operator.
An integrated 6V/30W vertical Koehler halogen illuminator with variable intensity control and automatic voltage sensing power supply provides excellent specimen illumination and contrast. The IM7200 Series is designed to meet your most diverse needs for materials research. Meiji’s IM Series is well suited for examination of mounted metallurgical specimens or for routine quality inspections such as, microstructure analysis, various materials testing, QA and QC examination and photomicrography. The IM7200 offers crisp, distortion-free, high resolution images in multiple modes of operation, and has a built in photo port on the front of the body to make image documentation quick and easy.
Full list of magnifications and included parts
- IM7200: Trinocular Inverted Brightfield Metallurgical Compound microscope with Ergonomic head with an integrated 6V/30W vertical Koehler Halogen illuminator with variable intensity control and automatic voltage sensing power supply provides excellent specimen illumination and contrast. Quintuple nosepiece and auto voltage sensing power supply. Infinity Corrected Planachromat 5X, 10X, 20X and 50X objectives are standard in all units. All of our IM7000 Series controls are ergonomically positioned to provide comfort and extended ease of use for the operator. Meiji’s IM Series is well suited for examination of mounted metallurgical specimens or for routine quality inspections such as, microstructure analysis, various materials testing, QA and QC examination and photomicrography
- MA816/15: Siedentopf type trinocular head – inclined at 30°, I.P. adjustment 53mm to 75mm graduated diopter on left eyetube (30mm I.D. eyetubes) with depolarizer, includes 80/20 beamsplitter (100% to eyetubes or 80% to photo 20% to eyetube) inverted image
- MA817 (x 2): SWH 10X Widefield high eyepoint eyepiece, Field No. 22, (accepts 25mm diameter reticle)
- MA906 (x 2): Rubber Eyeguards, foldable (paired)
- MA870: Planachromat E5X, ∞ objective N.A. 0.10, W.D. 20.0mm, F.L. 40.0, ∞ Infinity Corrected
- MA871: Planachromat E10X, ∞ objective N.A. 0.25,W.D. 7.48mm, F.L. 20.0, ∞ Infinity Corrected
- MA872: Planachromat E20X, ∞ objective N.A. 0.40, W.D. 5.20mm, F.L. 10.0, ∞ Infinity Corrected
- MA873: Planachromat E50X, ∞ objective N.A. 0.75, W.D. 0.38mm, F.L. 4.0, ∞ Infinity Corrected
- Stage: 180mm (X) x 245mm (Y) Plain stage (Factory installed)
- Focus Mechanism: Ergonomically low positioned, coaxial coarse and fine focus knobs with adjustable tension
- Front Photo Port: Front mounted camera port suitable for CCD, 35mm SLR, or digital cameras with optional camera adapters to facilitate a wide range of camera and video equipment
- MA475/05: LB100 Blue clear 19.5mm diameter filter in metal mount, fits 25mm filter slot
- MA476: G533 Green clear 19.5mm diameter filter in metal mount, fits 25mm filter slot
- MA774: ND50 Neutral density filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
- MA497: Polarizing filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot
- MA809/10: Removable AC Electric cord with plug for 115V models
- MA326: Halogen bulb, 6V 30W (Factory installed)
- MA327: Fuse 3A, Replacement (Factory installed)
- MA714: Dust cover
- Manual: IM7000 Meiji Techno Instruction Manual
- Warranty: Limited Lifetime Warranty Card
