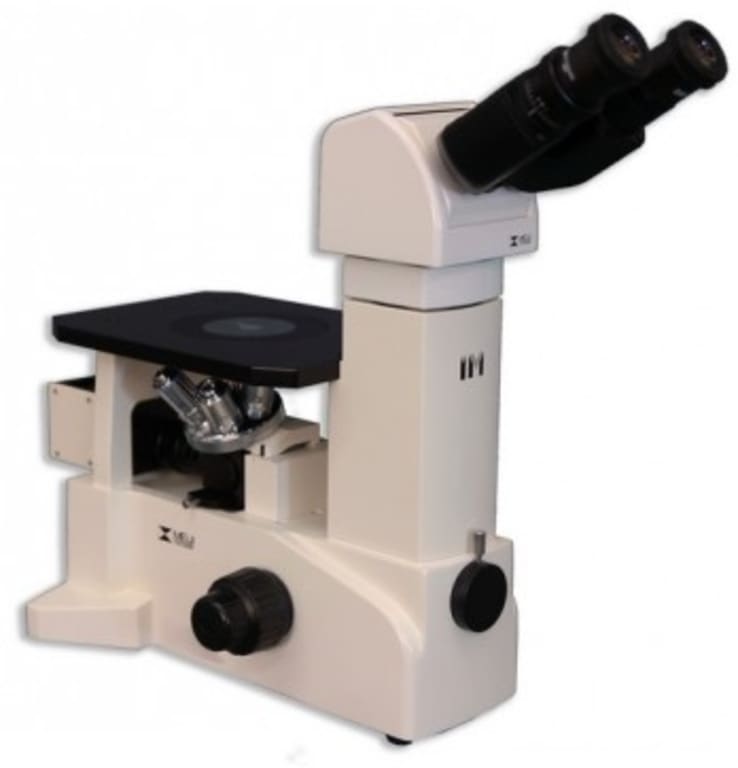

Ergonomic Binocular Inverted Brightfield Metallurgical Microscope with Halogen (6V,30W)
The Meiji Techno IM7000 Series Inverted Brightfield Metallurgical Microscope has an ergonomic slim triangular shaped design that saves bench space to maximize efficiency and offers ultimate stability with its cast aluminum alloy frame. This is the most rugged Inverted Microscope from Japan. Infinity Corrected Planachromat 5X, 10X, 20X and 50X objectives are standard in all units. All of our IM7000 Series controls are ergonomically positioned to provide comfort and extended ease of use for the operator. An integrated 6V/30W vertical Koehler halogen illuminator with variable intensity control and automatic voltage sensing power supply provides excellent specimen illumination and contrast. The IM7000 Series is designed to meet your most diverse needs for materials research. Meiji’s IM Series is well suited for examination of mounted metallurgical specimens or for routine quality inspections such as microstructure analysis, various materials testing, QA and QC examination and photomicrography. The IM7000 Series offers crisp, distortion-free, high resolution images in multiple modes of operation the built in photo port on the front of the body makes image documentation quick and easy. Contrast methods available include Brightfield and Polarized Light observation modes
VIEWING HEADS
The binocular model, the IM7100, incorporates the MA814 Siedentopf-type binocular head while the trinocular model, the IM7200, has the MA816/10 Siedentopf-type trinocular head. The MA816/10 uses an 80/20 beamsplitter that can be engaged for photomicroscopy. (100% to eyetubes or 80% to phototube and 20% to the eyetube.) Each microscope head has the eyetubes inclined at 30 degrees with the left eyetube having graduated diopter settings. The interpupillary distance on the viewing heads is adjustable between 53mm - 75mm. An optional ergonomic binocular head is also available.
EYEPIECES
10X Super Widefield High Eyepoint eyepieces are standard, and 15X and 20X eyepieces are also available as an option. A Super Widefield High Eyepoint 10X focusable eyepiece that accepts standard 25mm reticules is also available.
OBJECTIVE CHANGER
The smooth-operating, ball bearing mounted, quintuple nosepiece provides effortless objective changes.
OBJECTIVES
Meiji Techno offers their newly designed E.Planachromat Infinity Corrected objectives for brightfield observation modes. Infinity tube lens: F = 200mm..
STAGE
The standard fixed plain stage measures 180mm(x) by 245mm(y). The optional attachable mechanical stage measures 112mm(x) x 71mm(y). The mechanical stage features ergonomically positioned right-handed coaxial drop down controls.
ILLUMINATION
A powerful Koehler method vertical illuminator with 6 volt 30 watt halogen bulb in an adjustable centering socket provides enhanced image quality of observations and adjustable brightness control.
PHOTOMICROGRAPHY
Meiji Techno offers a broad range of digital video cameras that offers excellent sensitivity, high resolution and a wide dynamic range for the most demanding brightfield and darkfield microscopy applications including clinical pathology and cytology, life sciences and geology. Some models have included software, that can preview and capture still shots and live videos to a PC or Mac with a USB port or HDMI connectivity.
