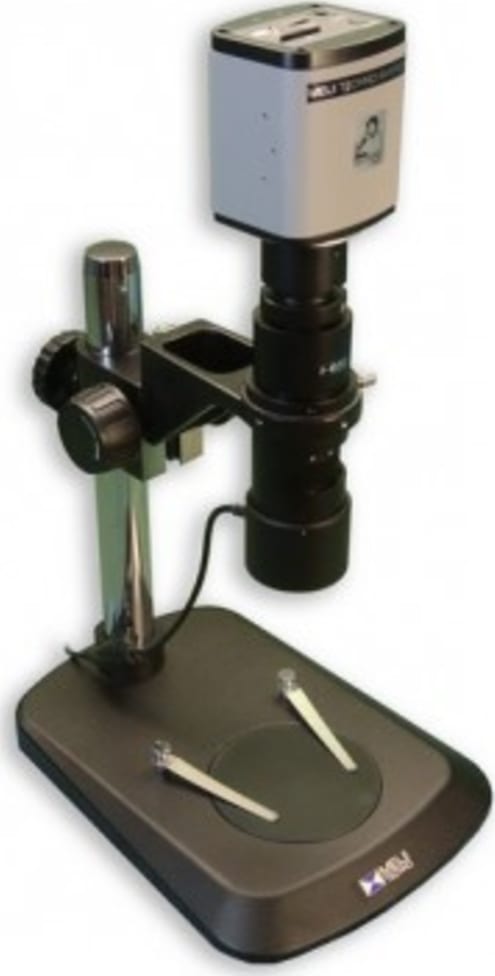

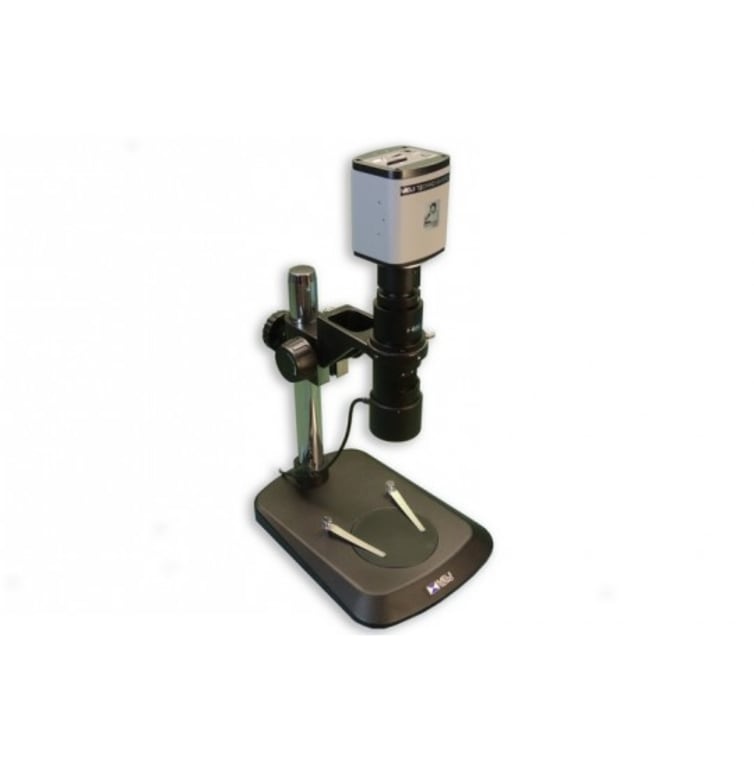

Entry-Level Macrozoom System (0.7x-5x) with HD1000-LITE HDMI Camera
0.7X-5X Macrozoom system with 16 LED array illumination powered by USB 2.0 with rheostat, 1x objective 0.4x trinocular eyepiece on a 205mm x 273mm ergonomic slope stand with a 32 mm post on a coarse focus block and a 5 MP HDMI/USB 2.0 camera (HD1000-LITE) USB 2.0 or HDMI compatible, can take still shots and live video 15 fps, W.D. 105mm with basic measurement software
The HDMI400MAC features include:
- MACRO ZOOM LENS
- 1X objective lens
- 105mm ( 4”) working distance
- STAGE
- 6” Plastic Black and White Stage Plate
- Plain stage
- Locked-on spring loaded stage clips (paired)
- STAND
- 205mm (8”) base
- 32mm diameter stainless steel post, 11” in height
- Rack and pinion design, cast aluminum alloy frame
- FOCUSING
- Coaxial coarse and 200μm fine adjustments, 2μm precision
- 50mm Friction adjustment
- Rack and pinion focusing with slip clutch and tension adjustment
- “Slip-clutch” system protects against over-focusing
- ILLUMINATION
- LED Ring Light with 16 LED Array with intensity rheostat control with USB 2.0 power
- Auto voltage sensing power supply, 100-220V
- FRAME
- Rugged, cast metal frame with rectangle footprint design
- Black enamel paint finish.
- Stable footprint design
