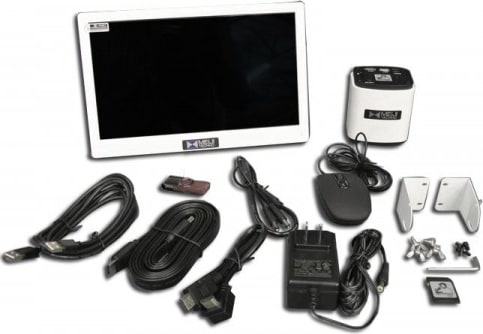

The HD1500MET-M-AF is a full featured 6 MP camera with a 1/2.8” CMOS chip. A 0.3X C-mount adapter (MA151/35/03) is needed to attach it to any standard Meiji Techno America Trinocular Microscope. The HD1500MET-M-AF features a full HD (1080x1920) resolution, which provides high fidelity images with a refresh rate of 60fps (frames per second) when connected via HDMI or 30fps when connected via USB2.0, so there is absolutely no lag in the live video feed when moving your specimen or part. Included with the 11.8” High Definition display is a mounting kit that allows the display to be mounted directly in front of the HD1500MET-M-AF.
The 11.8” High Definition display is used with the provided USB 2.0 mouse, with this the user can access menus that provide all the features of the camera such as exposure, white balance, color control (red or blue), gamma, brightness, sharpness, saturation, denoise, color temperature plus allows the user to save images and videos directly on the full SD card due to the onboard operating system. You can flip the image horizontally, vertically, do a split screen where-in one side of the monitor is a live image and the other half is the captured image. You can also digitally increase/decrease the zoom if needed if your stereo system has reached its magnification potential, this will give you the added digital magnification needed. You can also superimpose a cross-line reticle directly on your live image, first click gives you a red line second click gives you a green line, and the third click omits the crossline. The live video and still shots can be saved directly on the removable full SD card for subsequent image capture. All this is achieved without the need for a PC. You may also connect directly to any monitor or TV with a HDMI port for a wider view if necessary. All USB 2.0, HDMI, SD card, power supply is all supplied. You can also attach a wireless mouse if you choose to go wireless with a third party mouse.
The HD1500MET-M-AF is equipped with a complete Metrics Measurement software that can be utilized when connecting directly to a PC or through the camera connected to a monitor via HDMI. The HD1500MET-M-AF provides extremely powerful measurement functionality including: freehand lines, rectangles, polygons, circles, bi-circles, angles, point-line distance and much more. In addition to the ability to measure point-line distance, angles, the length of curves and lines, the camera can measure the perimeter & area of enclosed features such as: rectangles, polygons, and circles. The unique calibration and magnification functions coupled with the ability to export the results to Excel or text files, make measurements more convenient and simple.
Micron Level Measurement Accuracy
The HD1500MET-M-AF is capable of delivering measurements with a resolution of 10 nanometers which provides an incredible metrology capability in the most demanding situations.
1080P Video Recording
Just click the button to start recording 1080P videos at 30fps. The recorded video files will be saved to the high-speed SD card. It is also possible to play back the videos from the SD card directly.
Superb Smart Camera
It automatically analyzes the acquired images, optimizes the white balance, exposure time and saturation to present perfect images. Whether for brightfield or darkfield applications, ideal images can be captured, with little parameter adjustments.
30fps-60fps High Speed Live Image
With either HDMI or USB 2.0 data transfer at an uncompressed resolution of 1920 x 1080, sets a precedent. It is one of the fastest USB 2.0 camera’s available in the market today that is cost effective.
Convenient Measurement Data Management
Two measurement results exporting modes (Excel and Text) make the measurement data management user friendly and convenient, maximizing your productivity.
