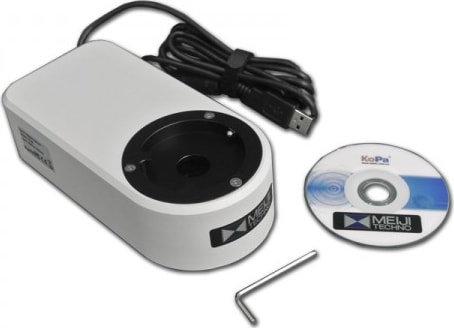

• Includes: HD-MTU4K camera, Hexagon key, Installation Disk (KoPa)
• 8-megapixel camera
• Embedded 50:50 splitting prism that does not destroy the original optical system
• Built-in high power reduction lens for a large field of view
• Accurate and simple focusing with screw rod, to realize parfocality

The HD-MTU4K is Meiji Techno's newest compound microscope camera that is built for our Meiji compound microscopes. It has 8.0 megapixels and has the highest resolution of 3840x2160. It has a sensor size of 1/1.8" and a pixel size of 2.0µm×2.0µm. This camera has an embedded 50:50 splitting prism that does not destroy the original optical system. Included is a built-in high power reduction lens for a large field of view. It has a rich amount of PC software functions with high USB speed video transmission.

Assembly with a biological microscope

1. Separate eyepiece part from the objective part as shown in figure 1

• Loosen the fixing screw of the microscope.
• Remove the eyepiece part of the microscope.

2. Assembly of the Digital Camera as shown in figure 2

• Place the Digital Camera on the top of the microscope objective.
• Tighten the fastening screw.

3. Assemble eyepiece part of the microscope as shown in figure 3

• Place the eyepiece part of the microscope to the female interface of the Digital Camera.
• Tighten the fastening screw.

4. Connect the integrated camera to the USB port of a computer, run the software and start using it.
