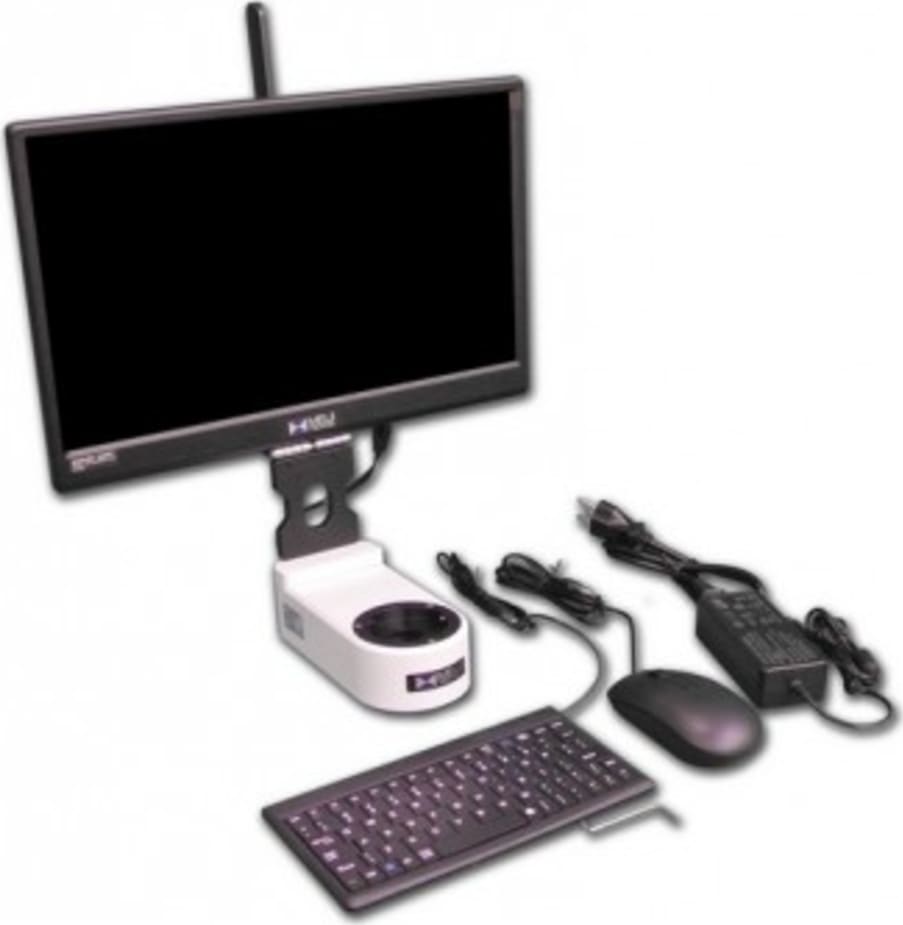

• Includes: HD-MT15UWF Smart all-in-one displayer camera, 12V AC adapter, Allen key, Mouse, Keyboard, Installation Disk (KoPa)
• 12 Megapixel camera
• 4000x3000 high resolution
• Embedded 50:50 splitting prism that does not destroy the original optical system
• Camera has a 32GB RAM that supports USB flash disk

The HD-MT15UWF is Meiji Techno's newest compound microscope camera monitor that is built for our Meiji compound microscopes. It has 12.0 megapixels and has the highest resolution of 4000×3000. It has a sensor size of 1/1.7" and a pixel size of 1.85µm×1.85µm. This camera has an embedded 50:50 splitting prism that does not destroy the original optical system. Included is a built-in high power reduction lens for a large field of view. The camera has a 32GB RAM that supports USB flash disk to export picture and video data and it also has a 1080P HDMI output to monitor. The USB ports can connect to a mouse and keyboard for convenient measuring and text input.

System Requirements for connection to PC Work Mode

• Windows 7 (64 bits), Windows 8 (64 bits), Windows 8.1 (64 bits), Windows10 (64 bits)
• Dual core 3.0 GHz or higher CPU
• 8G RAM or more
• At least 10 GB available hard-disk space
• 1000Mbps/100Mbps compatible with network cable interface

System Requirements for HDMI Work Mode

• The monitor has an HDMI TYPE A interface.
• The display supports up to 3840x2160 P60 input
• Display HDMI interface support hot plug

System Requirements for WiFi Work Mode

• 8.0 and later version is supported for iOS system
• 5.0 and later version is supported for Android system
• Wireless network hardware must support 802.11n/ac protocol.
