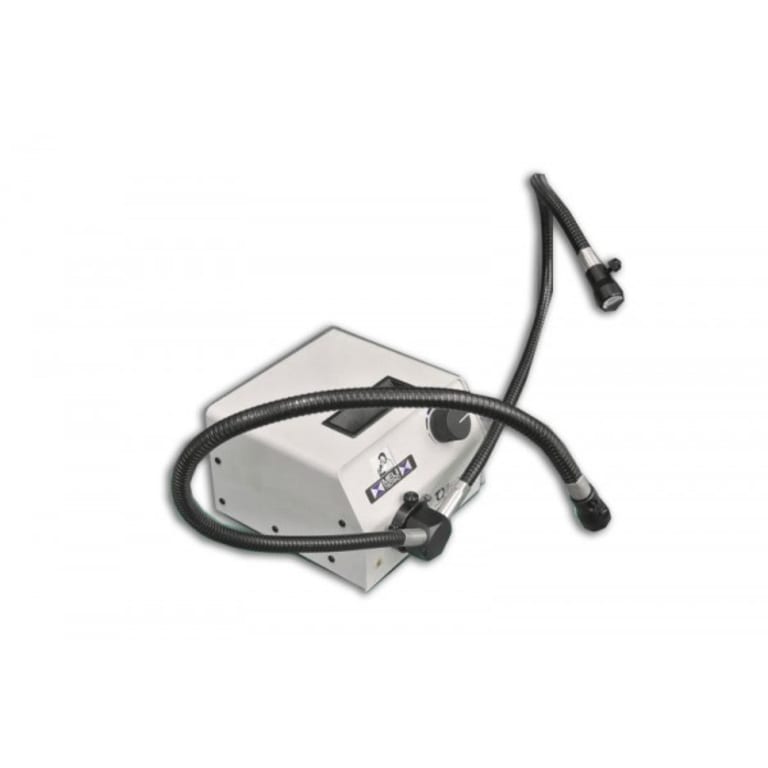

Dual Arm Fiber Halogen Illumination System, 220V, 24 inch Arm Length
FQ150 Series illuminators are used in a wide range of manufacturing, microscopy, metrology, medical, research, and other applications. Users can choose from 150 watt and 250 watt versions. The Fiber Optic Illuminators are often referred to as “Cold Light” Illuminators because they provide high intensity, focused light without the heat typically associated with high intensity lamps. The common uses for the FQ series are: Microscopes and Video Microscopes Boroscopes, Industrial Imaging (Machine Vision), and Custom Process and Inspection Equipment (Wire Bonders, Laser Welding).
The FQ150/220 allows a uniform halogen illumination of focused white light which can be used in different applications. Included is an on/off intensity control which allows easy adjustment of intensity. In addition, the lock-in feature allows light guides to stay in place and permits the illuminator to operate on its back without fear of falling off. For the FQ151/220 system, dual arm goosenecks cables (FQ150/05) are the light guides in which have obedient sheating which makes it possible to position light at a range of angle to the subject. The arm length is 24" and has a 0.265" main fiber bundle diameter.
The FQ150/50 included, which is a focus lens assembly found at the ends of the FQ150/05, allows for variable spot light adjustments, making this ideal for situations where intense illumination is required. The FQ150/50 has a proximal end tip of 0.625".
