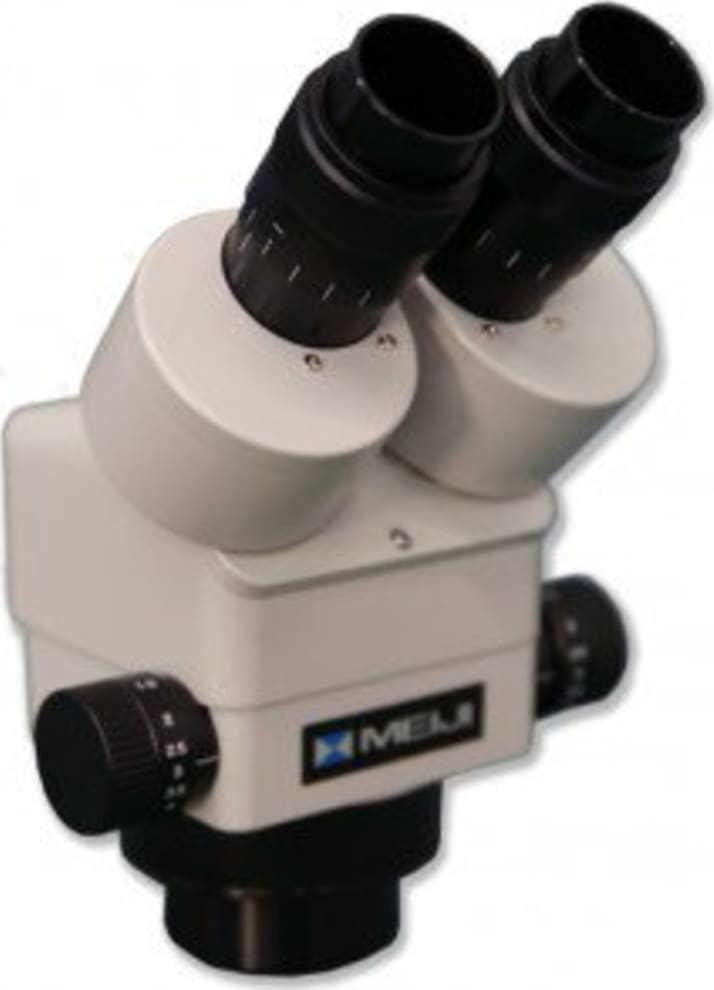

Meiji Techno EMZ-13VX (1.0x - 7.0x) Binocular Zoom Stereo, W.D. 90mm with Dual Light Port.
The EMZ-13VX has a dual integrated fiber optic light port that accepts a FL150/30 bifurcated light guide, which illuminates through the objective lenses. This type of illumination requires a MA978, a 1/4 wave plate in a rotatable mount. For easier observation, which are difficult to see under oblique incident-light illumination. It brings out interference colors of thin films on IC waters for high-contrast observation of circuit pattern structures.The EMZ-13VX is ideal for observing scratches on metal surfaces, IC chips, liquid crystal patterns.The body offers a large zoom ratio of 7:1, the highest in it's series. Modularitiy of design enables the user to select magnification from 3x - 420x.The paired objectives are parfocalled and parcentered that guarantees observation of exceptionally high resolution images throughout a wide magnification range. The EMZ-13VX series offer working distances from 34mm - 252mm. The EMZ-13VX employs Greenough optics, for improved image flatness and contrast. A wide variety of auxiliary lenses and stands are available.
NOTE: Additional items are needed to create a full microscope system. The following components are normally ordered:
- Stereo Microscope Body (Zoom, Turret or Fixed)
- Eyepieces (Requires 2 of identical magnification)
- Stand (Pole stands, rigid arm stands, boom stands, heavy duty boom stands, wide surface stands or articulated arm stands)
- Illumination Source (Fiber optic halogen, fiber optic LED, fluorescent ring or LED illumination)
- Auxiliary Lens (Optional)
Modular Flexibility:
EMZ Series zoom stereo microscopes are most the rugged microscopes from Japan and tailored to fit the needs of each and every customer. Modular design enables the user to engineer their own custom solution for virtually any application, selecting components from the widest range bodies, stands, eyepieces, supplementary lenses, illuminators, camera adapters, and accessory components available in the microscope industry today.
Superb Optics:
Multi-coated optical components, free form chromatic and spherical aberration, provide crystal-clear, high resolution images. The Greenough optical design provides superior erect, unreversed, stereoscopic images, rich in contrast, brightness and correct in their original color. Excellent depth of field and a flat image rendition are also characteristic of the EMZ Series product line.
Rugged Dependability:
All-metal aluminum alloy microscope bodies and components with chemical resistant finishes guarantee stability and rugged dependability for a lifetime of day-in and day-out use. Superior craftsmanship, quality components and materials result in long-lasting, high-performance products.
Ergonomic Design:
All EMZ Series zoom stereo microscope bodies feature a compact lightweight design. Every stereo body features adjustment diopter tubes and interpupillary distance adjustment. Observation tubes are inclined at 45°, 60° or 90° for convenient fatigue free viewing depending on the application, A range of fixed of tilting focus blocks are available to mount the microscope body onto existing O.E.M. equipment. A choice of Zoom, Turret or Fixed magnification bodies with various working distances, optional auxiliary objectives and eyepieces, multiple adjustable stands, versatile illumination systems, and auxiliary components allow the end user to design a system to fulfill their specific requirements.
Applications:
EMZ Series zoom stereo microscopes are the prefect modular microscope systems for a multitude of applications ranging from biological and industrial fields to educational and training situations. A wide variety of professional groups currently use the EM series product to their advantage: Biologist, Physicians, Geologists, Engineers, Dentists, Dental Technicians, Veterinarians, Paleontologists, Entomologists, Gemologists, Educators, Scientific Researchers, Quality Control Personnel, Quality Assurance Personnel, Assemblers, Forensic Document Examiners, Art Restoration Experts, Textile Specialists, Wire and Die Manufacturers, Environmental Specialists, Ophthalmic Specialists, Dermatologists, Metrology Personnel, Tool and Die Professionals, Circuit Board Rework and Repair Personnel, Aquaculture Professionals, Embryo Transplant Professionals, Horticultural Experts, Exterminators, Fish and Wildlife Departments, U.S. Customs Service, Semiconductor Manufacturers, Foresters, Pharmaceutical Manufacturers, Electroplating Specialist, Ballistics Experts, and more!
