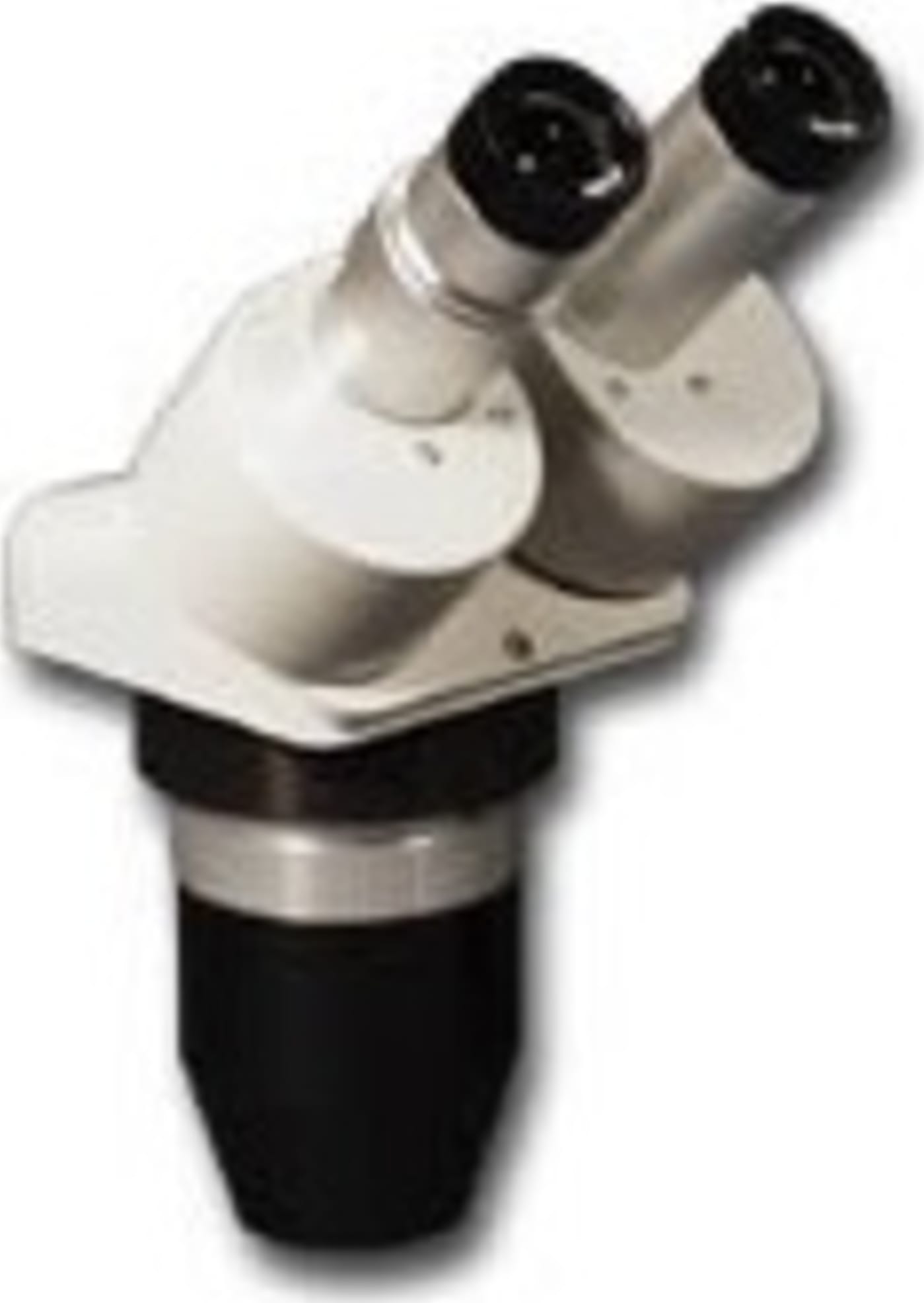

Meiji Techno EMT-3 Stereo Microscope

Name: Meiji Techno EMT-3 Stereo Microscope
Brand: Meiji Techno
SKU: MeijiEMT-3
Price: 458.76 USD
Availability: InStock

0 reviews | Model: Meiji Techno EMT-3

Compare

DISCONITNUED-2015) 2X/4X stereo Binocular Turret body

45° Eye Inclination
EM bodies come with dust covers and rubber eyeshields
54mm - 75mm Interpupillary Distance

View Product Details

List Price: $535.00

Your Price: $458.76

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Items in This Series



Product	Meiji Techno EMT-3 DISCONITNUED-2015) 2X/4X stereo Binocular Turret body	Meiji Techno EMT-1 Turret Stereo Body with 1X and 2X Objective	Meiji Techno EMT-2 Turret Stereo Body with 1X and 3X Objective	Meiji Techno EMT-2/BLACK Turret 1X/3X Stereo Binocular Body (Black)
Price
In Stock
Type (Microscopes)	Stereo	Stereo	Stereo
Body Style	Binocular	Binocular	Binocular
Diopter Adjustment	Yes	Yes	Yes
Compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Meiji Techno EMT-3 Accessories

Choose a Category

Camera Adapters
Objectives

for the Meiji Techno EMT-3

Meiji Techno MA515 Techno America Adapter for EMT-2 (old part# MA304),100% MADE IN JAPAN

Catalog: MA515

(0)

In Stock!

Add to Cart

Meiji Techno MA513 Techno America 1.5 Auxiliary lens (EMT-2/3 EMT-2 with MA515...

Catalog: MA513

(0)

In Stock!

Add to Cart

Meiji Techno MA518 Techno America 0.5X Auxiliary lens for EMT-2 and EMT-3 -Needs MA515...

Catalog: MA518

(1)

In Stock!

Add to Cart

Meiji Techno MA527 Techno America 0.75X Auxiliary lens (EMT-2 and EMT-3),100% MADE IN...

Catalog: MA527

(0)

In Stock!

Add to Cart

The microscope body is the heart of our modular stereo design. It contains the objectives and prisms that capture the image of the specimen, magnify it, and direct it to the eyetubes. The body by itself cannot be used to view an object; it needs eyepieces that further magnify the image and allow the viewer to see, and it must be mounted on a stand that has a mechanism for raising and lowering the body to bring the specimen into focus.

Turret stereo bodies have two objective pairs in a turret mount that allows the viewer to change from one magnification to another (e.g. from 10x to 30x) by rotating the turret. While not as flexible as a zoom stereo (EMZ) body, turret bodies are more economical. All EM bodies come with dust covers and rubber eyeshields.

Body	Binocular rotatable 360°
Paired Objectives	2x, 4x
Magnification	20x, 40x (10x eyepieces)
Field of View	11.5mm, 5.75mm
Working distance	63mm
Eyetube Inclination	45°
Interpupillary Distance	54mm - 75mm
Dioptric Adj	Left eyetube (+/- 5 diopters)
Extended Mag Range	10x - 240x

Tech Specs

Microscopes/Benchtop and Portable Microscopes Template
Type (Microscopes)	Stereo
Body Style	Binocular
Diopter Adjustment	Yes
Eyepiece Magnification	20, 40
Eyepiece Inclination	Yes
Eyepiece Inclination Degress	45 Degrees
Interpupillary Distance Max	75 MM
Interpupillary Distance Min	54 MM
Field of View (microscope)	11.5mm, 5.75mm
Magnification max	40 x
Magnification min	20 x
Working Distance	63 MM
Test Equipment General Attributes
Unique Features	Binocular rotatable 360° 20x, 40x (10x eyepieces) Magnification 63mm working distance
Warranty Details	MEIJI TECHNO will repair or replace, at its option, any instrument which under normal conditions of use and service proves to be defective in material or workmanship. No charge will be made for labor or parts with respect to defects covered by this warranty, provided that the work is done by MEIJI TECHNO. This warranty does not cover expenses incurred in the removal or reinstallation of any instrument or instruments, whether or not proven defective. Replacement or repairs furnished under this warranty are subject to the same terms and conditions of the original warranty.
HTS/Schedule B Number	9011100000
ECCN Number	EAR99
Country of Origin	Japan
