Meiji Techno CC3200M - 32MP Monochrome Digital Video Camera, Pixel Shifting 1/2" CCD

Name: Meiji Techno CC3200M - 32MP Monochrome Digital Video Camera, Pixel Shifting 1/2" CCD
Brand: Meiji Techno
SKU: MeijiCC3200M
Price: 5627.00 USD
Availability: InStock

0 reviews | Model: Meiji Techno CC3200M

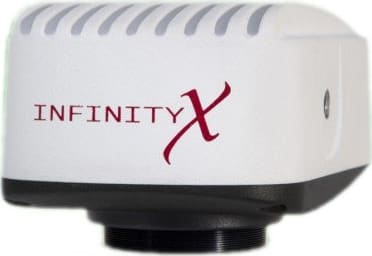

Meiji Techno CCD Camera Infinity X Series

Compare

32mp monochrome digital video camera, pixel shifting 1/2 inch CCD

CC3200M 32mp Monochrome Digital Video Camera, Pixel Shifting 1/2" CCD
32 megapixel resolution is achieved through shifting a color or monochrome sensor with a 1616X1216 pixel array
Users will have the flexibility of choosing between 2, 8, 16 and 32 megapixel resolution on capture, taking full advantage of their microscope optics
Highly sensitive, low noise CCD with remarkable color quality for the most demanding applications
Full color sub-windowing allows for rapid focus and scanning of samples: 12 fps at full 1616X1216 resolution, 25 fps at smaller regions of interest
8 / 12-bit selectable output format
The RGB data captured through each pixel contains 36-bits of color image information resulting in 4096 intensity values per color
Camera control through INFINITY CAPTURE, an intuitive user interface, resulting in rapid image capture, archiving and documentation for high throughput applications
INFINITY ANALYZE software for advanced camera control, image processing, measurement, annotation and archiving
Easy and flexible installation on your PC through a standard, high-speed USB 2.0 interface

View Product Details

List Price: $6,620.00

Your Price: $5,627.00

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99 - Code: FREESHIP
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded. - USE CODE FREESHIP at checkout

Valid on Web Price Only!
View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series



Product	Meiji Techno CC3200M 32mp monochrome digital video camera, pixel shifting 1/2 inch CCD	Meiji Techno CC1070CB E.O.L./DISCONITNUED-2015) 10.7mp color digital video camera, 43mm Di ...	Meiji Techno CC1070MB E.O.L./DISCONITNUED-2015) 10.7mp monochrome digital video camera, 43 ...	Meiji Techno CC1400C 1.4mp color digital video camera, 2/3 inch Cooled CCD, USB 2.0	Meiji Techno CC1400M 1.4mp monochrome digital video camera, 2/3 inch Cooled CCD, USB 2.0	Meiji Techno CC1400UC 1.4mp color digital video camera, 2/3 inch CCD, USB 2.0	Meiji Techno CC1400UM 1.4mp monochrome digital video camera, 2/3 inch CCD, USB 2.0	Meiji Techno CC2100M 1.4mp monochrome digital video camera, 1/2 inch CCD, 1392 X 1040 pixe ...	Meiji Techno CC2100RC 1.4mp color digital video camera, 1/2 inch CCD, USB 2.0	Meiji Techno CC2200C 2.0mp color digital video camera, 1/1.8 CCD, USB 2.0	Meiji Techno CC2200M 2.0mp monochrome digital video camera,1/1.8 inch CCD, USB 2.0	Meiji Techno CC2300C 3.3mp color digital video camera, 1/1.8 inch CCD, USB 2.0	Meiji Techno CC3100PC 1.4 MP 2/3 inch Cooled CCD Digital USB 2.0 Camera, 1392x1040, 15fps, ...	Meiji Techno CC3100PM 1.4 MP 2/3 inch Cooled CCD Digital USB 2.0 Camera, 1392x1040, 15fps, ...	Meiji Techno CC3100UC 1.4 MP 2/3 inch CCD, Digital Camera, 30fps, 1392x1040 with image pro	Meiji Techno CC3100UM 1.4 MP 2/3 inch CCD, Digital Camera, 30fps, 1392x1040 with image pro	Meiji Techno CC3200C 2.0, 8.0, 16.0,32.0mp color digital video camera, 1/1.8 inch CCD, USB ...	Meiji Techno CC3300UC 2.8 MP 2/3 inch CCD Digital Camera, 1936x1456, 53fps with image pro	Meiji Techno CC3300UM 2.8 MP 2/3 inch CCD Digital Camera, 1936x1456, 53fps with image pro	Meiji Techno CC3300UR 2.8 MP, SONY 1CX674CCD, 53fps, USB 3.0, 2/3 inch Optical format	Meiji Techno CC5000C 5.0mp monochrome digital video camera, 2/3 inch CCD, USB 2.0	Meiji Techno CC5000M 5.0mp color digital video camera, 2/3 inch CCD, USB 2.1
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Meiji Techno CC3200M

32 megapixel resolution
Highly sensitive, low noise CCD with remarkable color quality
Full color sub-windowing allows for rapid focus and scanning of samples
12 fps at full 1616X1216 resolution, 25 fps at smaller regions of interest
8 / 12-bit selectable output format

32MP Monochrome Digital Video Camera, Pixel Shifting 1/2" CCD

The CC3200M offers incredible flexibility in capturing images at 2, 8, 16 and 32 megapixel resolution. Using the patented DeltaVu™ technology, each CCD pixel captures full chromatic information, resulting in increased color resolution with no degradation. The CC3200M is the fist pixel shifting camera to utilize the highly sensitive SONY ICX274 sensor. The relatively low cost of the CC3200M makes it an affordable tool for clinical, life and material sciences where megapixel resolution, color accuracy, and light sensitivity are essential.

Recommended Applications:

Brightfield
Histology
Pathology
Cytology
Geology
Life Science

Diagram

Quantum Efficiency Curve

Meiji Techno CC3200M Specification
Camera Sensor
Image Sensor	1/1.8" Interline Sony ICX274 2.0 MP color/mono, progressive scan, CCD
Pixel Size	4.4µm x 4.4µm
Effective Pixels	1616 x 1216 pixels
Dark Current	12 e-
Camera Specifications
Frame Rate	12 fps at 1616 x 1216, 25 fps at 640 x 480
Bit Depth	8 and 12-bit, uncompressed
Exposure Control	Manual and automatic control
Gain Control	Programmable
Gain Range	1 to 10 x
White Balance	Automatic and manual control
Camera Characteristics
Mass	300g
Dynamic Range	66dB
Mechanical Specifications
Lens Mount	Adjustable C-Mount lens adapter
Dimensions (L x W x H)	3.85 x 2.00 x 2.75 inches
Operating Temperature	0° C to +50° C
Operating Humidity	5%-95%, Non-condensing
Camera Software
Operating Systems	Windows 2000, XP, Vista
Power and Emissions
Power Consumption	~2.5 watts
Power Requirement	USB bus power, or external 5VDC - 2.5A
System Requirements
Recommended PC Specs	• Pentium 4, 1.3 GHz or higher • 512 MB RAM • 60 MB hard drive free space or more • USB 2.0 Port •Windows 2000, XP, or Vista
Minimum PC Specs	• 600 MHz Processor • 256 MB of SDRAM • 200 MB hard drive free space • USB 2.0 Port
Included in the Box
CC3200M	32 MP Digital Camera for USB 2.0
CD-ROM	CD-ROM with INFINITY user application software, TWAIN driver and documentation
Cables	USB 2.0 cable
Lu802	2 m USB 2.0 cable
Model	Version	Image Sensor	Max. Resolution	Video Frame Rate
CC2100RC	Color	1/2" format CCD 7.6mm x 6.2mm	1.44MP 1392 x 1040	15 fps @ 1392 x 1040 200 fps with binning & ROI
CC2100M	Monochrome	1/2" format CCD 7.6mm x 6.2mm	1.44MP 1392 x 1040	15 fps @ 1392 x 1040 200 fps with binning & ROI
CC2200C	Color	1/1.8" format CCD	2.0MP 1616 x 1216	12 fps @ max. res. higher with binning & ROI
CC2200M	Monochrome	1/1.8" format CCD	2.0MP 1616 x 1216	12 fps @ max. res. higher with binning & ROI
CC2300C	Color	1/1.8" format CCD	3.3MP 2080 x 1536	5 fps @ max. res. higher with binning & ROI
CC5000C	Color	2/3" format CCD	5.0MP 2448 x 2048	8 fps @ 2448 x 2048 higher with binning & ROI
CC5000M	Monochrome	2/3" format CCD	5.0MP 2448 x 2048	8 fps @ 2448 x 2048 higher with binning & ROI
CC1400C	Color	Peltier Cooled CCD 2/3" format 1.4 MP	1.4MP 1392 x 1040	15 fps @ 1392 x 1040 higher with binning & ROI
CC1400M	Monochrome	Peltier Cooled CCD 2/3" format 1.4 MP	1.4MP 1392 x 1040	15 fps @ 1392 x 1040 higher with binning & ROI
CC1400UC	Color	Ultra-Sensitive CCD 2/3" format 1.4 MP	1.4MP 1392 x 1040	15 fps @ 1392 x 1040 higher with binning & ROI
CC1400UM	Monochrome	Ultra-Sensitive CCD 2/3" format 1.4 MP	1.4MP 1392 x 1040	15 fps @ 1392 x 1040 higher with binning & ROI
CC1070CB	Color	37.25mm x 25.7mm Kodak KAI-11002 CCD (35mm format)	10.7 MP 9 µm sq. pixels 4008 x 2672	3.5 fps @ 4008 x 2672 higher with binning & ROI
CC1070MB	Monochrome	37.25mm x 25.7mm Kodak KAI-11002 CCD (35mm format)	10.7 MP 9 µm sq. pixels 4008 x 2672	3.5 fps @ 4008 x 2672 higher with binning & ROI
CC3200C	Color	1/2" format CCD	32.0MP 6464 x 4864	12 fps @ 1616 x 1216 25 fps @ 640 x 480
CC3200M	Monochrome	1/2" format CCD	32.0MP 6464 x 4864	12 fps @ 1616 x 1216 25 fps @ 640 x 480
CC1500PFC	Color	2/3" format Cooled CCD	1.4MP 1392 x 1040	15 fps at 1392x1040, increased through binning and ROI
CC1500PFM	Monochrome	2/3" format Cooled CCD	1.4MP 1392 x 1040	15 fps at 1392x1040, increased through binning and ROI
CC3100UC	Color	2/3" format CCD	1.4MP 1392 x 1040	30 fps at full resolution, 54 fps at 640 x 480 (ROI)
CC3100UM	Monochrome	2/3" format CCD	1.4MP 1392 x 1040	30 fps at full resolution, 54 fps at 640 x 480 (ROI)
CC3300UC	Color	2/3" format CCD	2.8 MP 1936 x 1456	53 fps at 1936 x 1456 66 fps at 1920 x 1088 109 fps at 640 x 480
CC3300UM	Monochrome	2/3" format CCD	2.8 MP 1936 x 1456	53 fps at 1936 x 1456 66 fps at 1920 x 1088 109 fps at 640 x 480
CC1500UC	Color	2/3" format CCD	2.8 MP 1936 x 1456	53 fps at 1936 x 1456 66 fps at 1920 x 1088 109 fps at 640 x 480
CC1500UM	Monochrome	2/3" format CCD	2.8 MP 1936 x 1456	53 fps at 1936 x 1456 66 fps at 1920 x 1088 109 fps at 640 x 480
ST3000C	Color	1/1.8” format CCD	2.0 MP 1688 x 1248	15 fps at 1688 x 1248
