Meiji Techno CC1400C - 1.4MP Color Digital Video Camera, 2/3" Cooled CCD, USB 2.0

Name: Meiji Techno CC1400C - 1.4MP Color Digital Video Camera, 2/3" Cooled CCD, USB 2.0
Brand: Meiji Techno
SKU: MeijiCC1400C
Price: 5942.48 USD
Availability: InStock

0 reviews | Model: Meiji Techno CC1400C

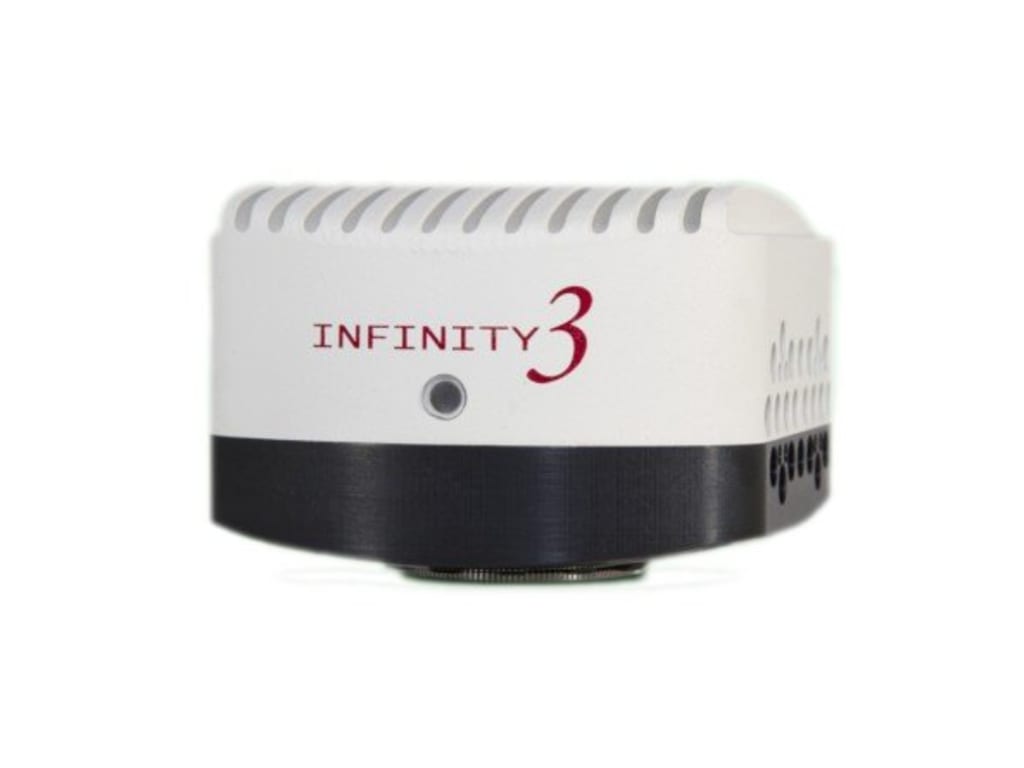

Meiji Techno CCD Camera Infinity 3 Series

Compare

1.4mp color digital video camera, 2/3 inch Cooled CCD, USB 2.0

CC1400C 1.4mp Color Digital Video Camera, 2/3" Cooled CCD, USB 2.0
High-speed USB 2.0 (480Mbits/sec) interface eliminates a framegrabber and facilitates ease of installation on both laptop and desktop computers
Available in color or monochrome
Cooled feature reduces thermal noise during low light fluorescent imaging
Low noise characteristic of the CC1400C progressive scan 1.4 megapixel CCD image sensor results in crisp color quality for the most demanding brightfield, phase contrast, and fluorescent applications including GFP, FISH, NIR, FRET, life science and geology
Full color sub-windowing allows for rapid focus and scanning of samples: 15 fps at full 1392x1040 resolution
Select 8 & 12-bit pixel data modes
The RGB data captured through each pixel contains 30-bits of color image information resulting in 1024 intensity values
Camera control through an intuitive user TWAIN interface results in rapid image capture archiving and documentation for high throughput applications, demanding research environments and teaching facilities

View Product Details

List Price: $6,930.00

Your Price: $5,942.48

Sign-in for EDU Pricing!

In Stock:

Free shipping over $99
Please note, FREE SHIPPING is only available on items that can ship via standard ground shipping and is only valid within the Contiguous United States. Any items that must ship via freight or to any destination outside of the Contiguous United States will be excluded.
View Payment Options

Request Quote

Non-Cancellable / Non-Returnable

Items in This Series



Product	Meiji Techno CC1400C 1.4mp color digital video camera, 2/3 inch Cooled CCD, USB 2.0	Meiji Techno CC1070CB E.O.L./DISCONITNUED-2015) 10.7mp color digital video camera, 43mm Di ...	Meiji Techno CC1070MB E.O.L./DISCONITNUED-2015) 10.7mp monochrome digital video camera, 43 ...	Meiji Techno CC1400M 1.4mp monochrome digital video camera, 2/3 inch Cooled CCD, USB 2.0	Meiji Techno CC1400UC 1.4mp color digital video camera, 2/3 inch CCD, USB 2.0	Meiji Techno CC1400UM 1.4mp monochrome digital video camera, 2/3 inch CCD, USB 2.0	Meiji Techno CC2100M 1.4mp monochrome digital video camera, 1/2 inch CCD, 1392 X 1040 pixe ...	Meiji Techno CC2100RC 1.4mp color digital video camera, 1/2 inch CCD, USB 2.0	Meiji Techno CC2200C 2.0mp color digital video camera, 1/1.8 CCD, USB 2.0	Meiji Techno CC2200M 2.0mp monochrome digital video camera,1/1.8 inch CCD, USB 2.0	Meiji Techno CC2300C 3.3mp color digital video camera, 1/1.8 inch CCD, USB 2.0	Meiji Techno CC3100PC 1.4 MP 2/3 inch Cooled CCD Digital USB 2.0 Camera, 1392x1040, 15fps, ...	Meiji Techno CC3100PM 1.4 MP 2/3 inch Cooled CCD Digital USB 2.0 Camera, 1392x1040, 15fps, ...	Meiji Techno CC3100UC 1.4 MP 2/3 inch CCD, Digital Camera, 30fps, 1392x1040 with image pro	Meiji Techno CC3100UM 1.4 MP 2/3 inch CCD, Digital Camera, 30fps, 1392x1040 with image pro	Meiji Techno CC3200C 2.0, 8.0, 16.0,32.0mp color digital video camera, 1/1.8 inch CCD, USB ...	Meiji Techno CC3200M 32mp monochrome digital video camera, pixel shifting 1/2 inch CCD	Meiji Techno CC3300UC 2.8 MP 2/3 inch CCD Digital Camera, 1936x1456, 53fps with image pro	Meiji Techno CC3300UM 2.8 MP 2/3 inch CCD Digital Camera, 1936x1456, 53fps with image pro	Meiji Techno CC3300UR 2.8 MP, SONY 1CX674CCD, 53fps, USB 3.0, 2/3 inch Optical format	Meiji Techno CC5000C 5.0mp monochrome digital video camera, 2/3 inch CCD, USB 2.0	Meiji Techno CC5000M 5.0mp color digital video camera, 2/3 inch CCD, USB 2.1
Price
In Stock
Compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare	Add to compare

Recommended for you

Meiji Techno CC1400C

CC1400C 1.4mp Color Digital Video Camera, 2/3" Cooled CCD, USB 2.0
High-speed USB 2.0 (480Mbits/sec) interface eliminates a framegrabber and facilitates ease of installation on both laptop and desktop computers
Available in color or monochrome
Cooled feature reduces thermal noise during low light fluorescent imaging

1.4MP Color Digital Video Camera, 2/3" Cooled CCD, USB 2.0

CC1400C Color camera is designed to be used in a wide variety of scientific applications. Cooled models are ideal in low-light conditions and where high dynamic range is required. Both color and monochrome product models are available. With 1392x1040 resolution and on-board processing, these cameras deliver outstanding image quality and value for industrial and scientific imaging applications.

Recommended Applications:

Brightfield
Phase Contrast
GFP
Pathology
Cytology
Geology
FISH
NIR
FRET
Life Science

Meiji Techno CC1400C Specification
Camera Sensor
Image Sensor	Sony ICX285 1.4 MP, CCD, color/mono, progressive scan
Optical Format	2/3"
Active Area	9.0 x 6.7 mm
Pixel Size	6.45µm x 6.45µm
Resolution	1392 x 1040 pixels
Region of Interest Control	Any multiple of 8 x 8 pixels (8 x 8 pixels minimum)
Camera Specifications
Frame Rate	15 fps at 1392 x 1040, increased through binning and ROI
Bit Depth	8 and 12-bit
Binning / Subsampling Modes	2 x 2, 4 x 4
Exposure Control	Manual and automatic control
Exposure Range	3 µs to 211 ms (video), 2 µs to 10 min (snapshot)
Gain Control	Automatic and manual control
Gain Range	1 to 10x
White Balance	Automatic and manual control
Camera Characteristics (at 4.7 fps)
Sensitivity	Mono: 6.6 DN/(nJ/cm²), Color: 5.3 DN/(nJ/cm²) (Global and channel gains at unity)
Dynamic Range	70dB
Full Well Capacity	18,000 e-
Quantum Efficiency	44 % (color peak), 62 % (mono peak)
Read Noise	8 e- rms
Dark Current Noise	<0.15 e-/s at 22 ºC
Mechanical Specifications
Data Interface	USB 2.0 high-speed interface
Lens Mount	Adjustable C-Mount standard
Dimensions (L x W x H)	3.85 x 3.5 x 2.446 inches
Mass	780 g
Operating Temperature	0° C to +50° C
Storage Temperature	-30 to 70 ºC
Operating Humidity	5%-95%, Non-condensing
Shock / Vibration	50 G shock, 5 G (2 to 200 Hz) vibration
Camera Software
Operating Systems	Windows 8, 7, XP, Vista, Mac OS X 10.7, 32 and 64-bit
Power and Emissions
Power Consumption	~2.5 W uncooled/ ~8.5 W cooled
Power Requirement	5 V DC. 12.5 W (included with camera)
System Requirements
Recommended PC Specs	• Pentium 4, 1.3 GHz or higher • 512 MB RAM • 60 MB hard drive free space or more • USB 2.0 Port •Windows 2000, XP, Vista, Mac OS 10.4
Minimum PC Specs	• 600 MHz Processor • 256 MB of SDRAM • 20 MB hard drive free space • USB 2.0 Port • Window XP or 2000
Included in the Box
CC1400C	1.4 MP digital camera + 3m USB 2.0 cable
LulNFSW-DVD	DVD with INFINITY user application software, TWAIN driver and documentation
Model	Version	Image Sensor	Max. Resolution	Video Frame Rate
CC2100RC	Color	1/2" format CCD 7.6mm x 6.2mm	1.44MP 1392 x 1040	15 fps @ 1392 x 1040 200 fps with binning & ROI
CC2100M	Monochrome	1/2" format CCD 7.6mm x 6.2mm	1.44MP 1392 x 1040	15 fps @ 1392 x 1040 200 fps with binning & ROI
CC2200C	Color	1/1.8" format CCD	2.0MP 1616 x 1216	12 fps @ max. res. higher with binning & ROI
CC2200M	Monochrome	1/1.8" format CCD	2.0MP 1616 x 1216	12 fps @ max. res. higher with binning & ROI
CC2300C	Color	1/1.8" format CCD	3.3MP 2080 x 1536	5 fps @ max. res. higher with binning & ROI
CC5000C	Color	2/3" format CCD	5.0MP 2448 x 2048	8 fps @ 2448 x 2048 higher with binning & ROI
CC5000M	Monochrome	2/3" format CCD	5.0MP 2448 x 2048	8 fps @ 2448 x 2048 higher with binning & ROI
CC1400C	Color	Peltier Cooled CCD 2/3" format 1.4 MP	1.4MP 1392 x 1040	15 fps @ 1392 x 1040 higher with binning & ROI
CC1400M	Monochrome	Peltier Cooled CCD 2/3" format 1.4 MP	1.4MP 1392 x 1040	15 fps @ 1392 x 1040 higher with binning & ROI
CC1400UC	Color	Ultra-Sensitive CCD 2/3" format 1.4 MP	1.4MP 1392 x 1040	15 fps @ 1392 x 1040 higher with binning & ROI
CC1400UM	Monochrome	Ultra-Sensitive CCD 2/3" format 1.4 MP	1.4MP 1392 x 1040	15 fps @ 1392 x 1040 higher with binning & ROI
CC1070CB	Color	37.25mm x 25.7mm Kodak KAI-11002 CCD (35mm format)	10.7 MP 9 µm sq. pixels 4008 x 2672	3.5 fps @ 4008 x 2672 higher with binning & ROI
CC1070MB	Monochrome	37.25mm x 25.7mm Kodak KAI-11002 CCD (35mm format)	10.7 MP 9 µm sq. pixels 4008 x 2672	3.5 fps @ 4008 x 2672 higher with binning & ROI
CC3200C	Color	1/2" format CCD	32.0MP 6464 x 4864	12 fps @ 1616 x 1216 25 fps @ 640 x 480
CC3200M	Monochrome	1/2" format CCD	32.0MP 6464 x 4864	12 fps @ 1616 x 1216 25 fps @ 640 x 480
CC1500PFC	Color	2/3" format Cooled CCD	1.4MP 1392 x 1040	15 fps at 1392x1040, increased through binning and ROI
CC1500PFM	Monochrome	2/3" format Cooled CCD	1.4MP 1392 x 1040	15 fps at 1392x1040, increased through binning and ROI
CC3100UC	Color	2/3" format CCD	1.4MP 1392 x 1040	30 fps at full resolution, 54 fps at 640 x 480 (ROI)
CC3100UM	Monochrome	2/3" format CCD	1.4MP 1392 x 1040	30 fps at full resolution, 54 fps at 640 x 480 (ROI)
CC3300UC	Color	2/3" format CCD	2.8 MP 1936 x 1456	53 fps at 1936 x 1456 66 fps at 1920 x 1088 109 fps at 640 x 480
CC3300UM	Monochrome	2/3" format CCD	2.8 MP 1936 x 1456	53 fps at 1936 x 1456 66 fps at 1920 x 1088 109 fps at 640 x 480
CC1500UC	Color	2/3" format CCD	2.8 MP 1936 x 1456	53 fps at 1936 x 1456 66 fps at 1920 x 1088 109 fps at 640 x 480
CC1500UM	Monochrome	2/3" format CCD	2.8 MP 1936 x 1456	53 fps at 1936 x 1456 66 fps at 1920 x 1088 109 fps at 640 x 480
ST3000C	Color	1/1.8” format CCD	2.0 MP 1688 x 1248	15 fps at 1688 x 1248
