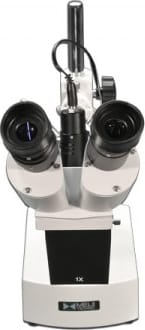

Stereo Binocular Microscope, 10X Magnification, 45° Eyetube
This is Meiji Techno America's new stereo binocular microscope system with a body total magnification of 10X. This system includes a 10X eyepiece with an eyetube angle of 45°. This system includes a post stand, a LED reflection illuminator, and an oblique top light. Its input voltage is AC100-240V 50/60Hz.
BMK-3 Optical System Info:
- Optical System: Finite
- System Optical Magnification: 10X
- Total Magnification: 10X
- Standard Eyepiece: 10X Eyepiece
- Standard Objective: 1X Objective
- System Field of View: 20mm
- System Working Distance: 230mm
BMK-3 Fixed Body Info:
- Body Optical System: Finite
- Body Magnification: 1X
- Observation Method: Binocular
- Eyetube Adjustment Mode: Siedentopf
- Eyetube Angle: 45°
- Erect/Inverted Image: Erect image
- Eyetube Rotatable: Fixed
- Interpupillary Adjustment: 55-75mm
- Eyetube Inner Diameter: 30.5mm
- Eyepiece Diopter Adjustable: Left ±5°, Right Not Adjustable
- Eyetube Fixing Mode: Locking Screw
- Eyepiece Type: Standard Eyepiece
- Eyepiece Optical Magnification: 10X
- Plan Eyepiece: Plan Eyepiece
- Eyepiece Size for Eyetube: 30.5mm
- Eyepiece Field of View: 20mm
BMK-3 Post Stand Info:- Stand Type: Post Stand
- Vertical Post Height: 280mm
- Vertical Post Diameter: 18mm
- Cross Adapter Type: Dual Hole Adapter
- Horizontal Arm Type: Horizontal Post
- Horizontal Arm Length: 190mm
- Horizontal Diameter: 18mm
- Mounting Hole on the Top of Horizontal Arm: 18mm
- Horizontal Rotation Angle: 360° Rotatable
- Horizontal Arm Travel Distance on Z-Axis: 200mm
- Horizontal Arm Travel Mode on Horizontal Direction: Manual
- Horizontal Arm Travel Mode on Z Direction: Manual
- Base Type: Table Base
- Base Shape: Rectangle
- Base Dimensions: 190x130x55mm
- Arbor Length: 70mm
- Arbor Diameter: 18mm
- Arbor Rotation Range on Z Direction: 180°
- Arbor Adapter Type: Fixed
BMK-3 Microscope Illuminator Info:
- Illumination Type: LED Reflection Light
- Top Illumination: Oblique Top Light
- Top Illumination Type: LED
BMK-3 Power Supply Info:
- Output Power: 6W
- Input Voltage: AC 100-240V 50/60Hz
- Output Voltage: DC 6V
- Power Cord Connector Type: USA 3 Pins
- Power Cable Length: 1.5m
